SMH50623483 Escalator Handrail Speed Sensor Roller 109×31×6204 with 6204 Deep Groove Ball Bearing for 9300 9500 9700 Systems
Model Number:
SMH50623483
Minimum Order Quantity:
1
Delivery Time:
3-5 Working days
Payment Terms:
D/A,D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
109×31×6204 Escalator Handrail Speed Sensor Roller
,9300 9500 9700 Guide Support Wheel
,6204 Deep Groove Ball Bearing Pressure Roller
Type:
109×31×6204
Product Name:
SMH50623483 Escalator Handrail Speed Sensor Roller - 109×31×6204
Transportation:
Clients' Requestment,DHL TNT FEDEX UPS,Sea Delivery
Application:
Lift Parts,hoist,elevator
Business Type:
Manufacturer
Packing:
As Per Client's Request,Packed In Carton
Product Description

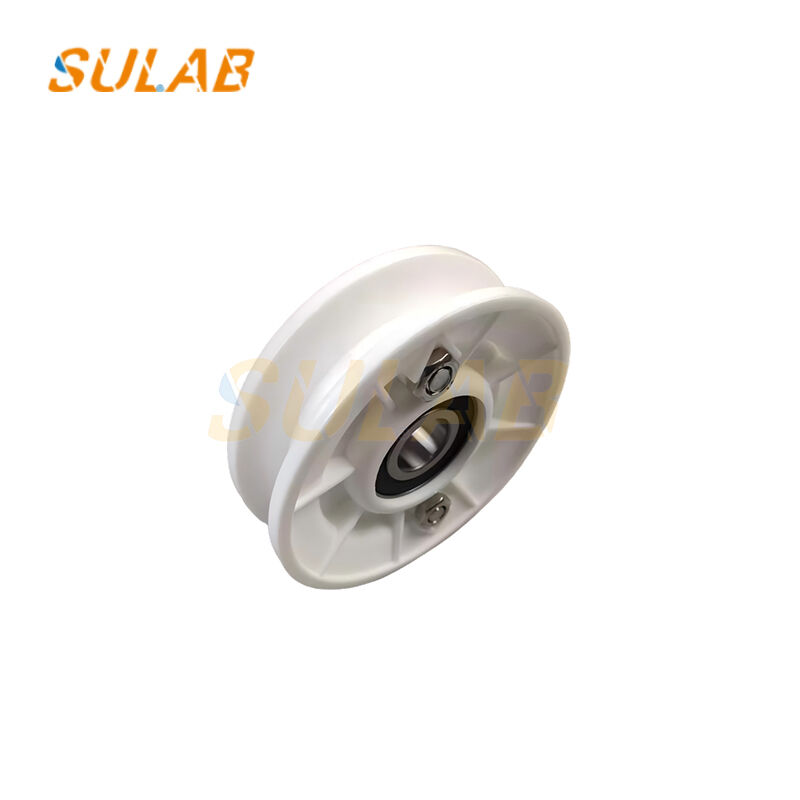

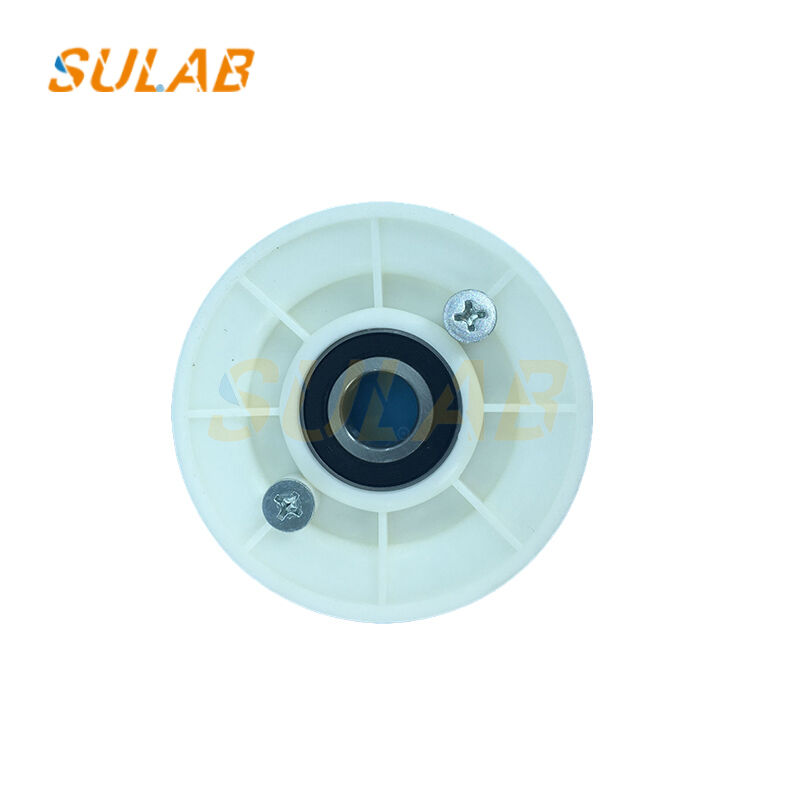

SMH50623483 Escalator Handrail Speed Sensor Roller
The SMH50623483 is a critical handrail speed sensor roller designed for escalators and moving walks. This precision-engineered component (109×31×6204 guide support wheel) monitors handrail belt speed to ensure synchronization with step/pallet movement, preventing safety hazards caused by speed discrepancies. With dimensions of 109mm outer diameter × 31mm width and equipped with a 6204 deep groove ball bearing, this roller ensures smooth rotation, accurate speed detection, and long service life in continuous operation environments.
Key Features
- Speed Monitoring Function: Detects handrail speed to ensure 0~+2% synchronization with steps (per GB16899/EN115 standards)
- Multi-Role Design: Functions as speed sensor roller, guide wheel, and pressure roller simultaneously
- Precision Bearing: 6204 bearing with 20mm bore diameter for smooth, low-friction rotation
- Durable Construction: Metal and plastic composite materials withstand heavy-duty escalator environments
- Direct Compatibility: Fits 9300, 9500, and 9700 escalator series
- Safety Critical: Triggers escalator stop when handrail speed drops 15% below step speed for 15+ seconds
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SMH50623483 |
| Product Type | Escalator Handrail Speed Sensor Roller / Guide Support Wheel / Pressure Roller |
| Brand Compatibility | (9300, 9500, 9700 series) |

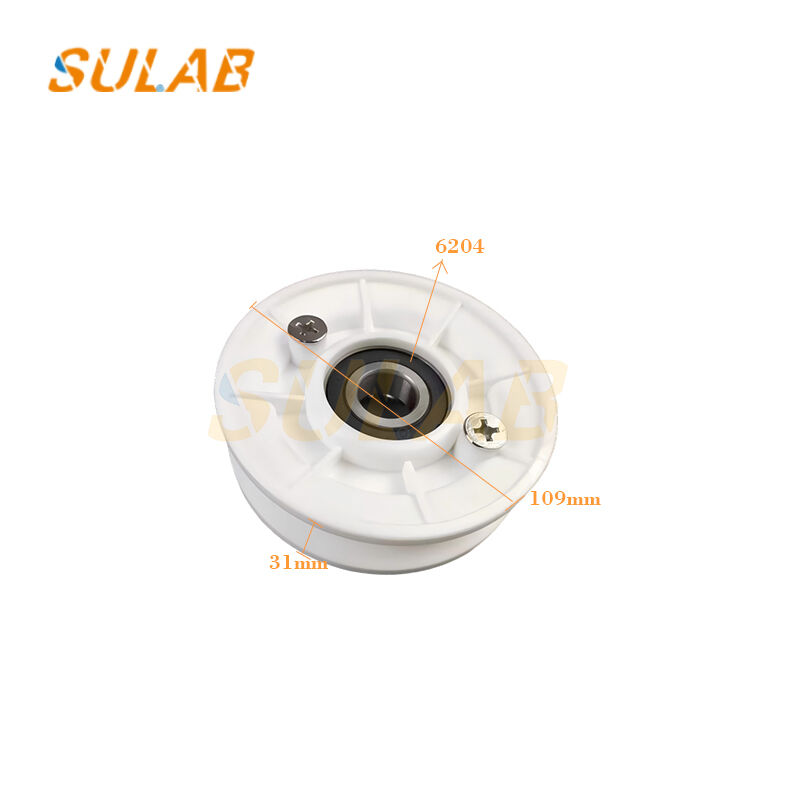

| Outer Diameter (OD) | 109 mm |
| Width (W) | 31 mm |
| Bearing Model | 6204 (Deep Groove Ball Bearing) |
| Bearing Bore Diameter | 20 mm |
| Bearing Outer Diameter | 47 mm |
| Bearing Width | 14 mm |
| Housing Material | Metal + Plastic composite |
| Roller Color | Black (standard) / Grey |
| Operating Temperature | -20°C to +60°C |
| Maximum Speed | 0.5-0.75 m/s (standard escalator speed) |
| Load Capacity | Heavy-duty public traffic rated |
| Function | Handrail speed monitoring, guidance, tension/pressure application |
| Installation Position | Handrail drive station / return station |
| Protection Rating | IP54 (standard escalator environment) |
| Service Life | ≥ 5 years (under normal maintenance) |
| Compliance | GB16899, EN115, ASME A17.1 |
Key Advantages
Safety Critical Component: Essential for ASME A17.1/CSA B44 and EN115 code compliance for escalator handrail speed monitoring
Triple Function: Combines speed sensing, guidance, and pressure application in one compact roller
Precision Engineering: 109mm OD and 31mm width optimized for 9300/9500/9700 series geometry
Quality Bearing: 6204 bearing rated for 20,000+ hours continuous operation in escalator environments
Drop-in Replacement: Direct fit for OEM part SMH50623483 - no modifications required
Global Standards Compliance: Meets Chinese GB16899, European EN115, and North American ASME safety standards
