Mitsubishi Electric IGBT Power Module CM300DY-24NF for Elevators with 1200V VCES and 300A Continuous Collector Current
Brand Name:
SULAB
Model Number:
CM300DY-24NF
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
1200V VCES IGBT Power Module
,300A Continuous Collector Current Elevator Spare Parts
,Dual Half-Bridge Topology Mitsubishi Electric Module
Brand:
Sigma
Description:
Elevator Board
Model:
CM300DY-24NF
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

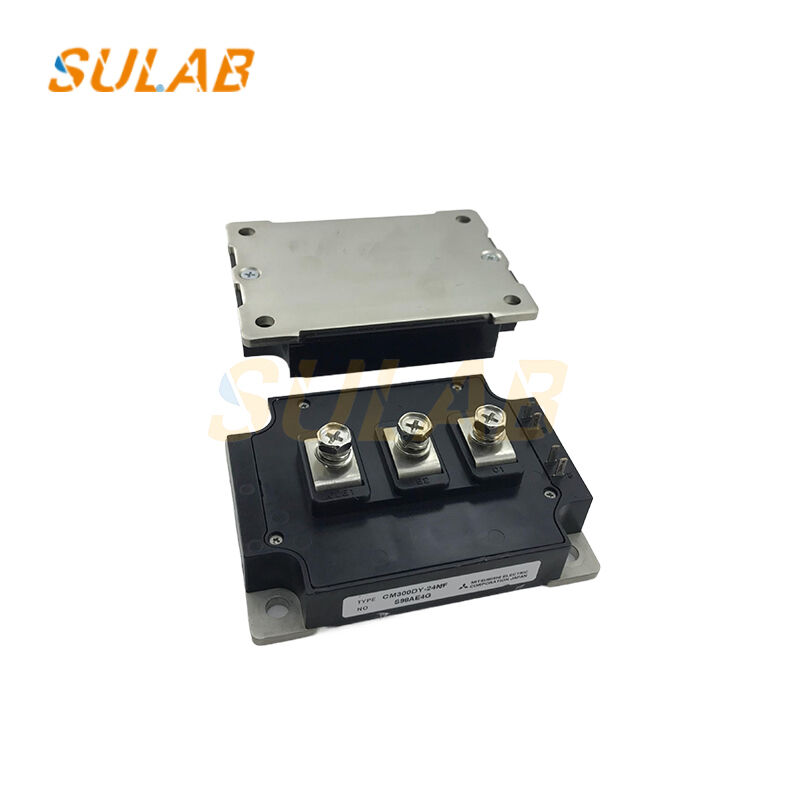

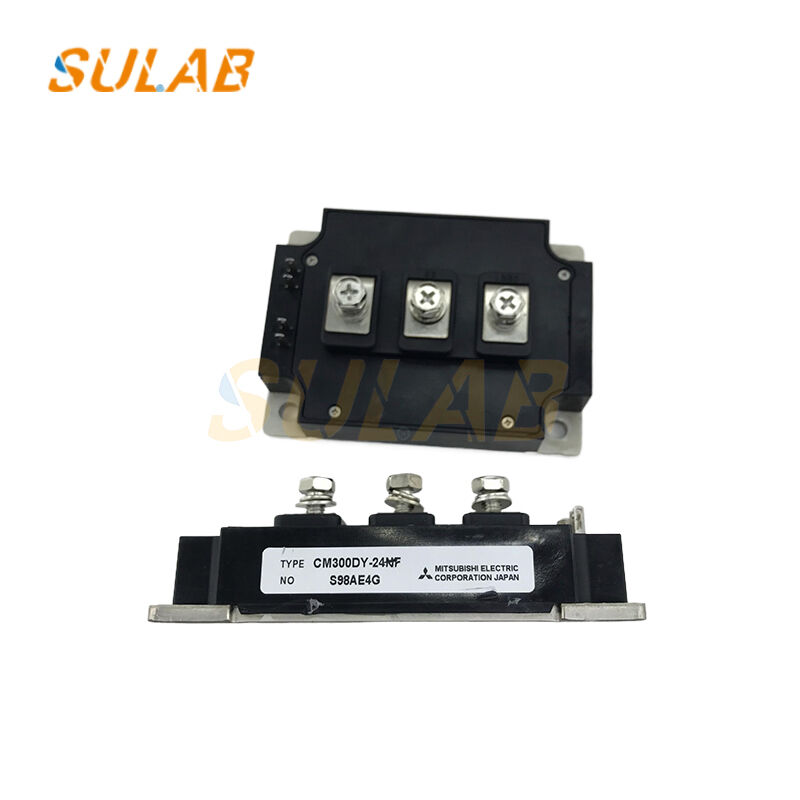

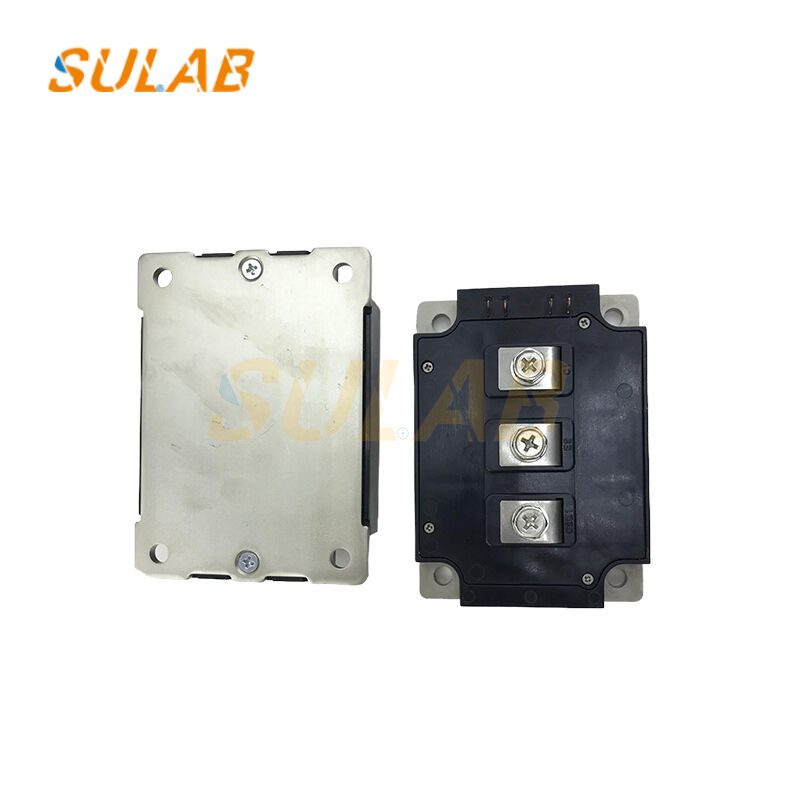

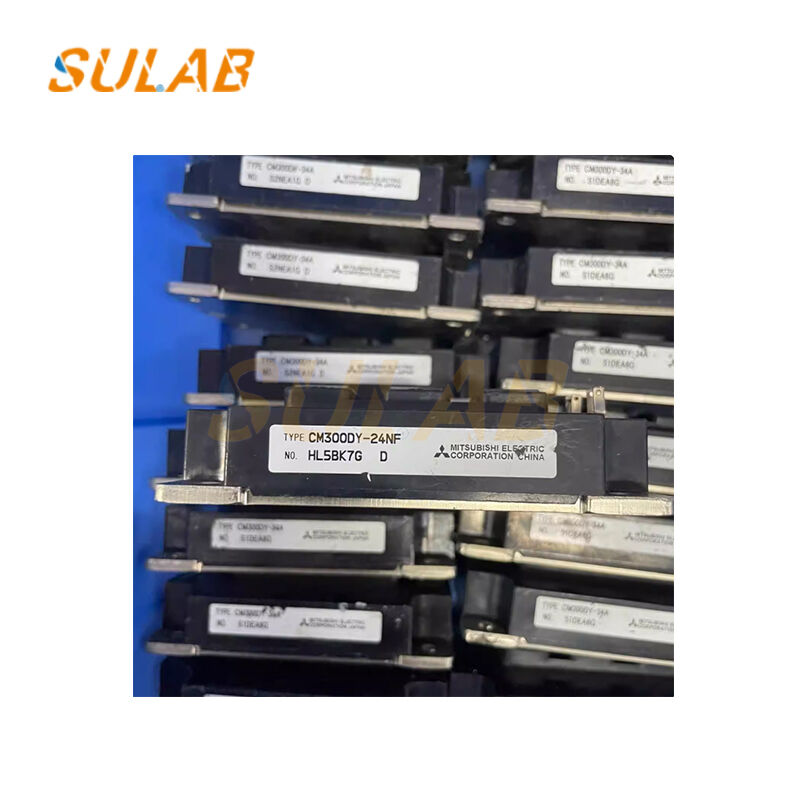

CM300DY-24NF Dual Half-Bridge IGBT Power Module
Brand new imported original Mitsubishi Electric CM200DY-24H, CM200DY-24A, CM200DY-24NF, and CM300DY-24H power modules.
Product Overview
The CM300DY-24NF is a dual half-bridge IGBT power module from Mitsubishi Electric's NF series, engineered for high-power switching applications in industrial environments.
Key Specifications
- Voltage Rating: 1200V VCES
- Current Rating: 300A continuous collector current, 600A peak
- Saturation Voltage: ~2.5V @ 15V/300A
- Power Dissipation: 1130W maximum
- Isolation: 2500Vrms between main terminals and baseplate
- Mounting: M6 screw mounting
- Temperature Range: -40°C to 150°C junction temperature
Technical Features
Utilizing advanced trench-gate IGBT technology, this module delivers low switching loss and excellent anti-interference capabilities. The half-bridge topology simplifies circuit design while ensuring robust performance.
Ordering Information
| Brand | SULAB |
|---|---|
| Description | Elevator Module |
| Model | CM300DY-24NF |
| Minimum Order Quantity | 1PC |
| Shipping Methods | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Methods | Company Bank, Western union, Alibaba, Paypal etc |
Applications
Widely used in elevator inverters, servo drives, UPS systems, and industrial power supplies. In elevator applications, it serves as the core component of the drive system.
Compatibility & Replacement
Directly replaceable with CM300DY-24A and CM300DY-24E models, ensuring high compatibility for maintenance and upgrade projects.
Maintenance Notes
Common failures include overcurrent burnout and thermal failure. Regular maintenance should include checks on heat dissipation systems, drive voltage stability, and load matching to ensure optimal performance and longevity.
