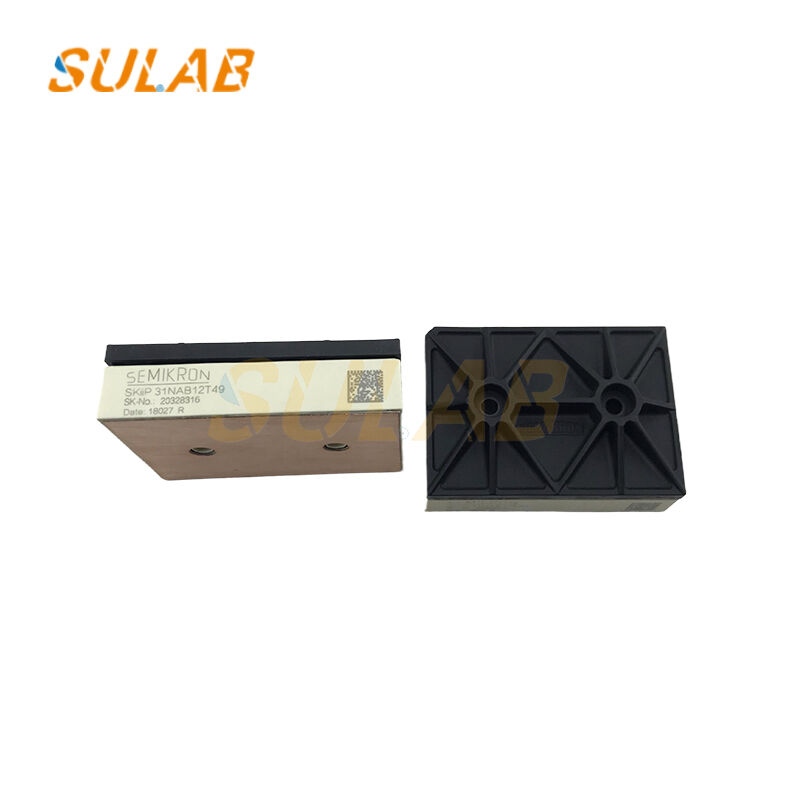

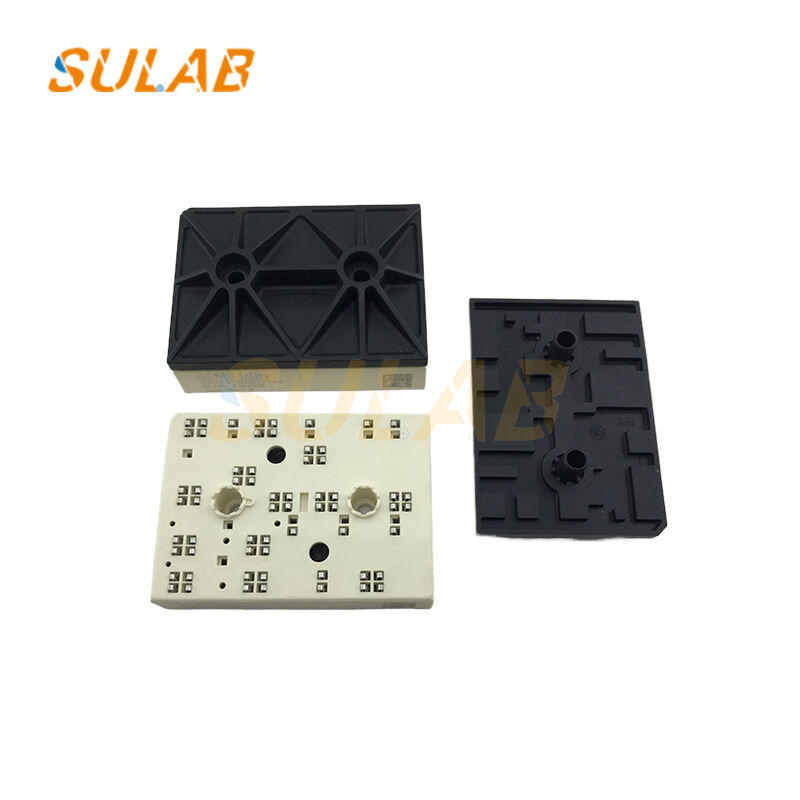

SKIIP Series IGBT Power Module with 1200V VCES 300A Continuous Collector Current and Integrated Heat Dissipation for Elevators
Brand Name:
SULAB
Model Number:
SKIIP30NAB12T49
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
1200V VCES IGBT Power Module
,300A Continuous Collector Current Elevator Module
,Integrated Heat Dissipation SKIIP Series
Brand:
SULAB
Description:
Elevator Module
Model:
SKIIP30NAB12T49
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
SKIIP Series Three-Phase Bridge IGBT Power Modules
Brand new SKIIP30NAB12T49, SKIIP31NAB12T49, and SKIIP32NAB12T49 power modules are currently in stock and available for immediate delivery.
Product Overview
The SKIIP30NAB12T49 is a three-phase bridge intelligent IGBT power module from SEMIKRON, part of the advanced SKIIP® series designed for medium-to-high power inverter applications.
Key Specifications
- Voltage Rating: 1200V VCES
- Current Rating: 300A continuous collector current, 600A peak
- Topology: Integrated three-phase full-bridge inverter
- Protection Features: Soft shutdown, overcurrent and undervoltage protection
- Package: SKIIP® with integrated heat dissipation
- Thermal Performance: Low thermal resistance with excellent anti-interference capability
- Mounting: M3 screw mounting
- Operating Temperature: -40°C to 125°C junction temperature
Ordering & Delivery Information
| Brand | SULAB |
| Description | Elevator Module |
| Model | SKIIP30NAB12T49 |
| Minimum Order Quantity | 1 Piece |
| Shipping Methods | TNT, UPS, DHL, FedEx, Air, Sea |
| Packaging Options | Carton, Wooden Case, Pallet |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One Year |
| Payment Methods | Company Bank, Western Union, Alibaba, PayPal |
Applications
Widely used in elevator inverters, servo drives, UPS systems, and industrial power supplies.
Compatibility & Integration
Highly integrated and compatible design allows direct replacement of same-series models like SKIIP30NAB12T1 without major board modifications.
In elevator applications, this module serves as the core power device of the drive system. Common failure modes include overcurrent burnout and thermal failure. Proper maintenance requires regular checks on heat dissipation, drive voltage, and load matching, making this component critical for inverter repair and system upgrades.
