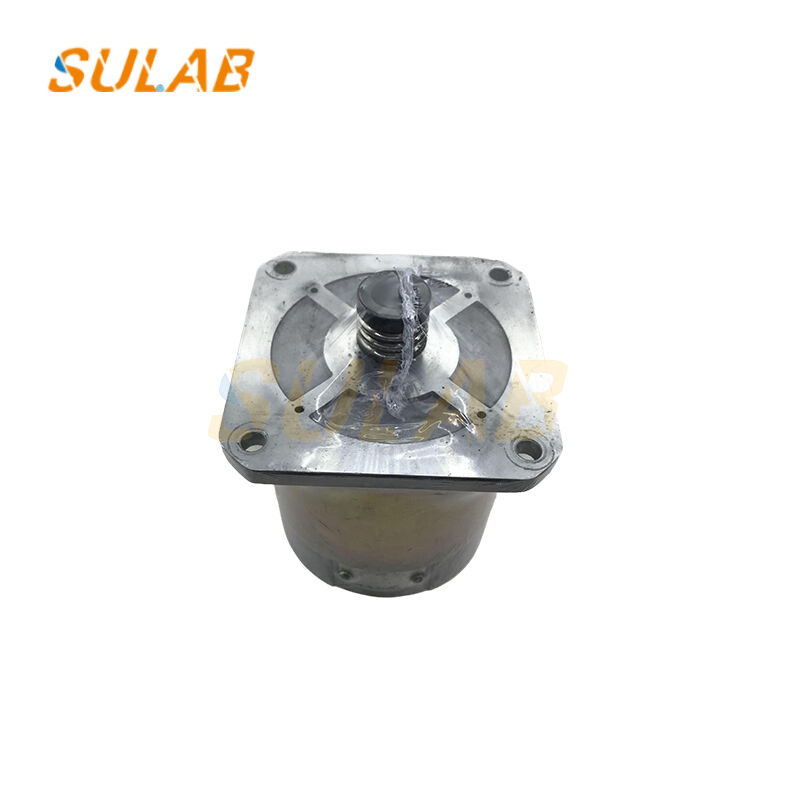

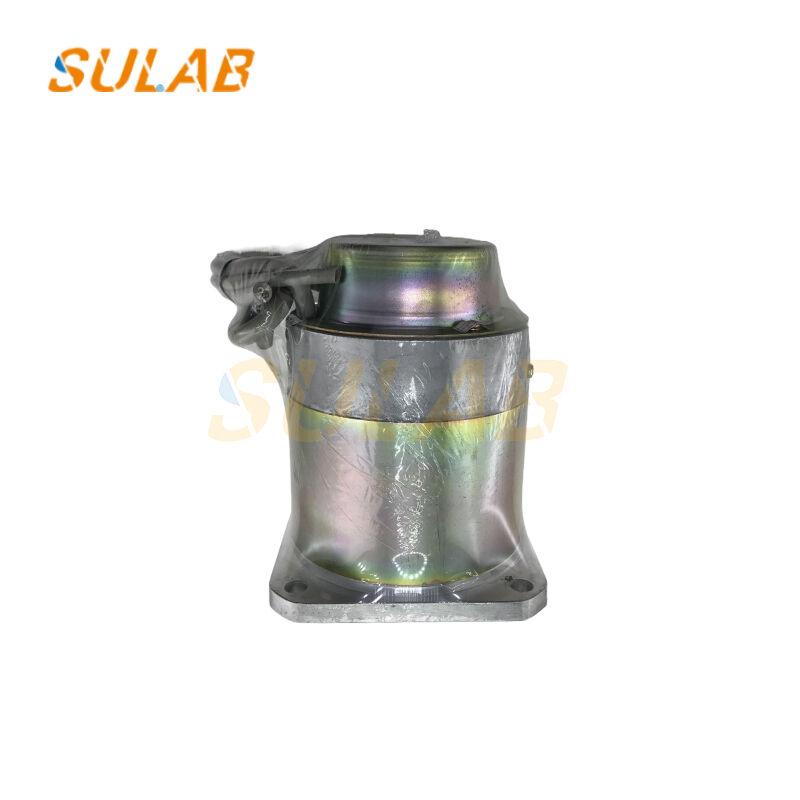

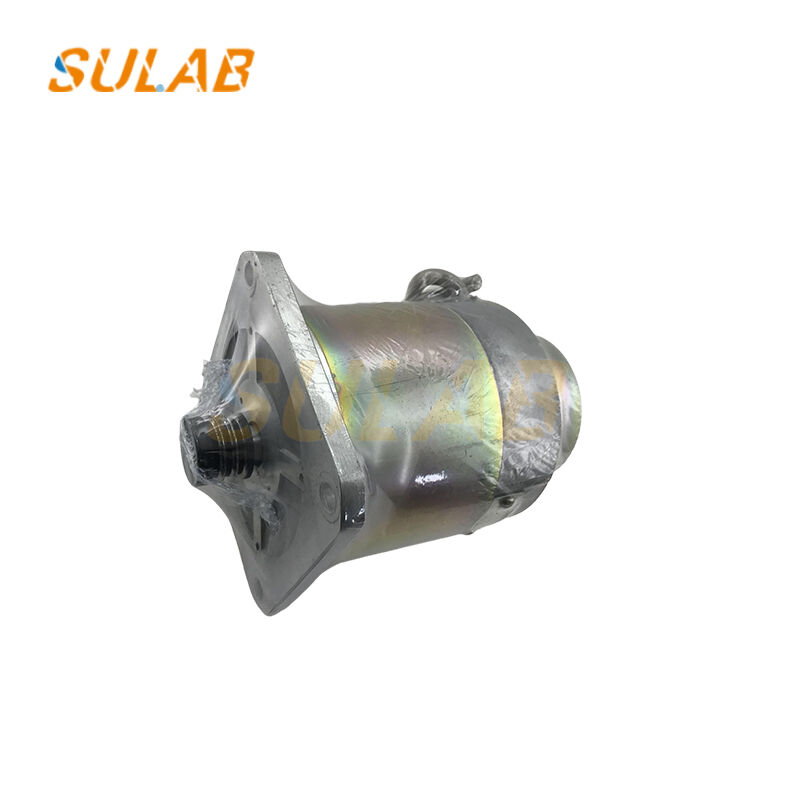

Hitachi VFMG Elevator Door Motor DC Servo Motor with DC100V 1000rpm and 500-line Incremental Encoder
Brand Name:
Hitachi
Model Number:
TS3422N6E92
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
DC100V Elevator Door Motor
,1000rpm DC Servo Motor
,500-line incremental encoder Hitachi Motor
Brand:
Hitachi
Description:
Elevator Door Motor
Model:
TS3422N6E92
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Hitachi VFMG Elevator Door Motor TYPE TS3422N6E92/TS3422N5E46
Original genuine product in stock, designed exclusively for Hitachi NPX series elevator systems.
Product Overview
The TS3422N6E92 is a DC servo door motor custom-made by TAMAGAWA for Hitachi NPX series elevators. This original dedicated execution unit features deep integration with Hitachi main control systems, supporting closed-loop torque control and speed curve adjustment for smooth, silent door operation.
Key Specifications
- Power: DC100V, 1.3A, 100W
- Speed: 1000rpm
- Encoder: Built-in 500-line incremental encoder (DC15V)
- Construction: Dual-bearing and metal-shielded structure
- Positioning Accuracy: ±1mm
- Application: Suitable for car/hall door drive with widths over 1.2m
- Protection: Excellent IP rating for dust and water resistance
Product Details
| Brand | Hitachi |
| Description | Elevator door motor |
| Model | TS3422N6E92 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Compatibility & Maintenance
This motor can directly replace same-series models like TS3422N5E46 without rewiring or reprogramming. Common maintenance issues include abnormal encoder signals, insufficient torque, and abnormal noise, typically caused by encoder wear, unstable power supply, or mechanical jamming. These can be quickly resolved by checking encoder output, power supply, and mechanical clearances.
This motor is a critical component for Hitachi elevator door system repair and upgrades, ensuring reliable performance and long-term durability.
