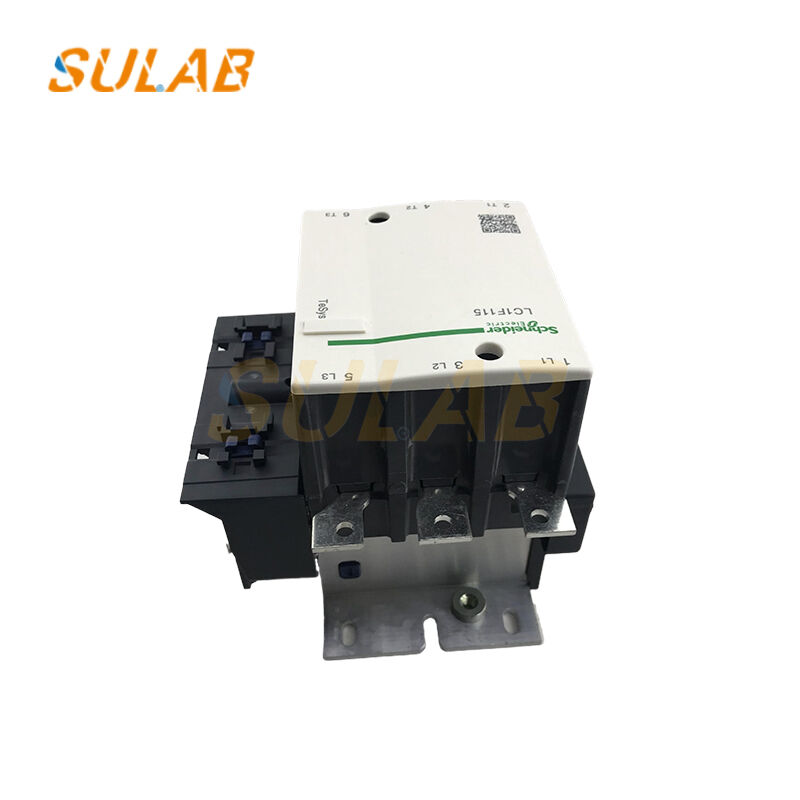

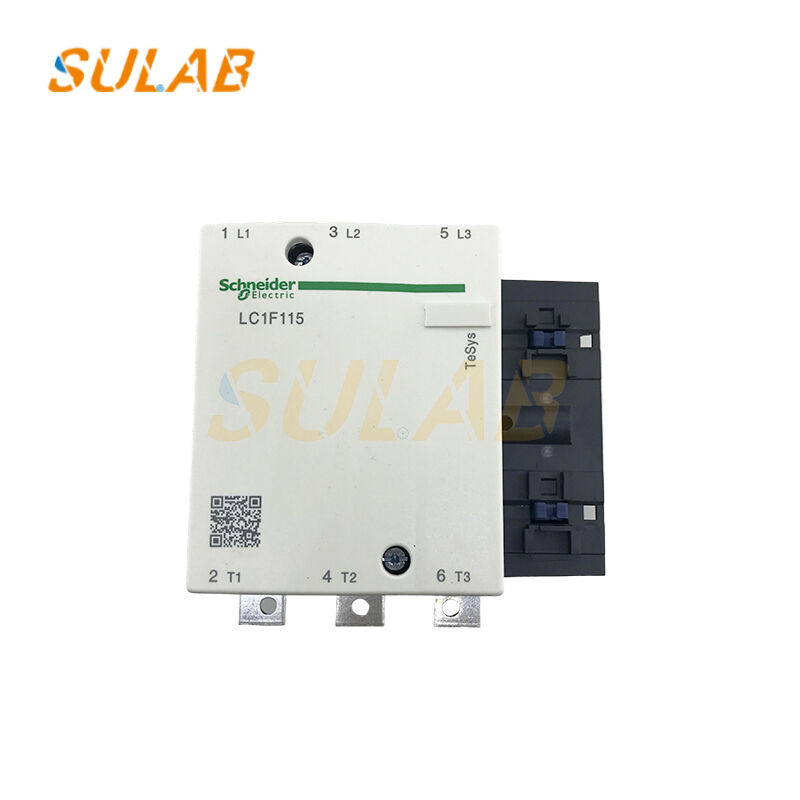

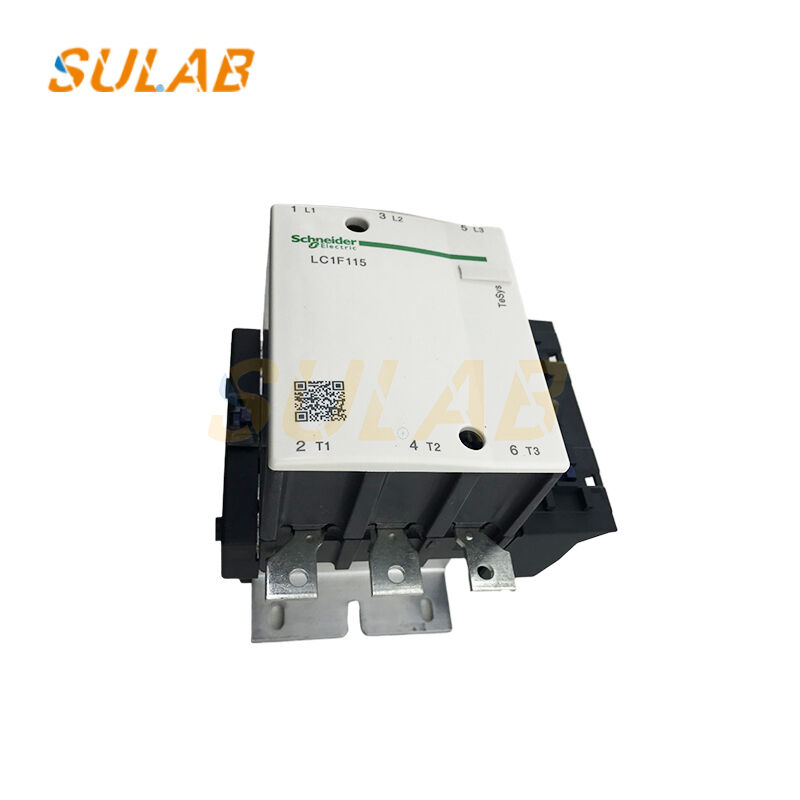

Original Schneider Contactor LC1F115 115A at AC3 with 1000V Insulation and 3NO Main Contacts for Elevator Control
-
Highlight
115A at AC3 Schneider Contactor
,1000V insulation TeSys F Contactor
,3NO main contacts Elevator Contactor
-
BrandSchneider
-
DescriptionElevator Contact
-
ModelLC1F115
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameSchneider
-
Model NumberLC1F115
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T,Western Union
Original Schneider Contactor LC1F115 115A at AC3 with 1000V Insulation and 3NO Main Contacts for Elevator Control
Original Imported Schneider Contactors LC1F115 F225F265 F330 F400 F500 F630
LC1F115 is a 3-pole AC contactor from Schneider's TeSys F series, designed for high-power motor and load control applications.
Key Specifications
- 115A at AC3 rating with 1000V insulation voltage
- 80kW control power (AC3) / 200A (AC1)
- 3NO main contacts with standard 1NO+1NC auxiliary contacts
- Coil voltages: AC220V/380V/415V, 50/60Hz universal
- DIN rail and panel mountable
- Dimensions: 163.5×162×171mm
- Weight: 3.83kg
- IP2x protection rating
- Operating temperature: -5°C to 55°C
- Short-time withstand: 1100A/10s
Product Details
| Brand | Schneider |
| Description | Elevator contactor |
| Model | LC1F115 |
| Minimum Order Quantity | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Features & Applications
Featuring silver-alloy contacts for reliable switching and long service life, this contactor directly replaces models like LC1F100/150. In elevator systems, it handles main power switching and brake control functions.
Common Applications
- Elevator main circuits
- Fan and pump control systems
- Industrial inverters
- High-power electrical systems
Maintenance & Reliability
Common failures include contact erosion, coil burnout, and abnormal noise, often caused by overload, poor heat dissipation, or abnormal coil voltage. Regular maintenance should include checks of contact condition, coil resistance, and terminal tightness to ensure optimal performance.
