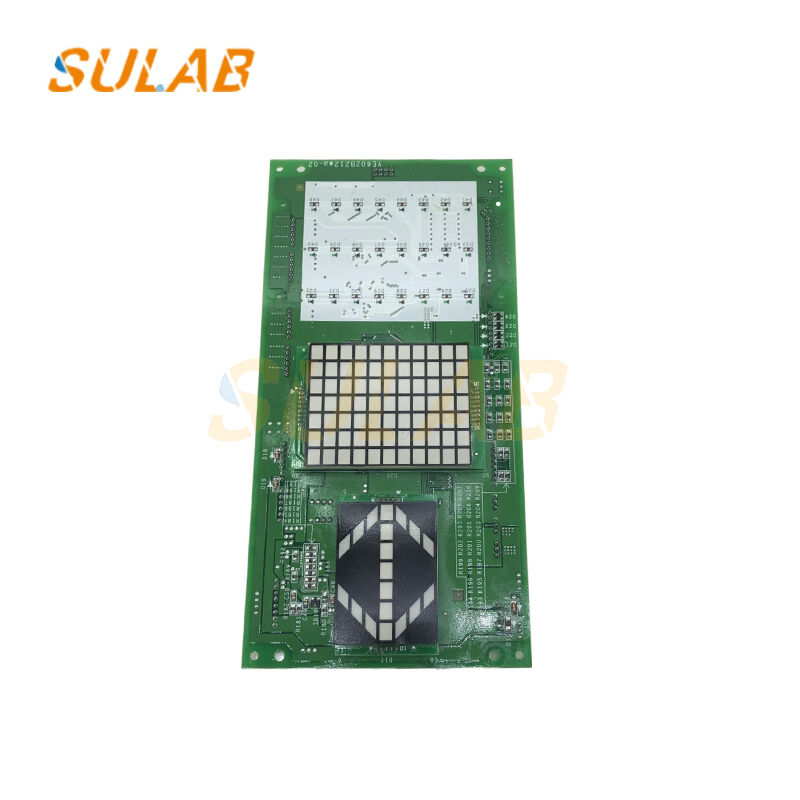

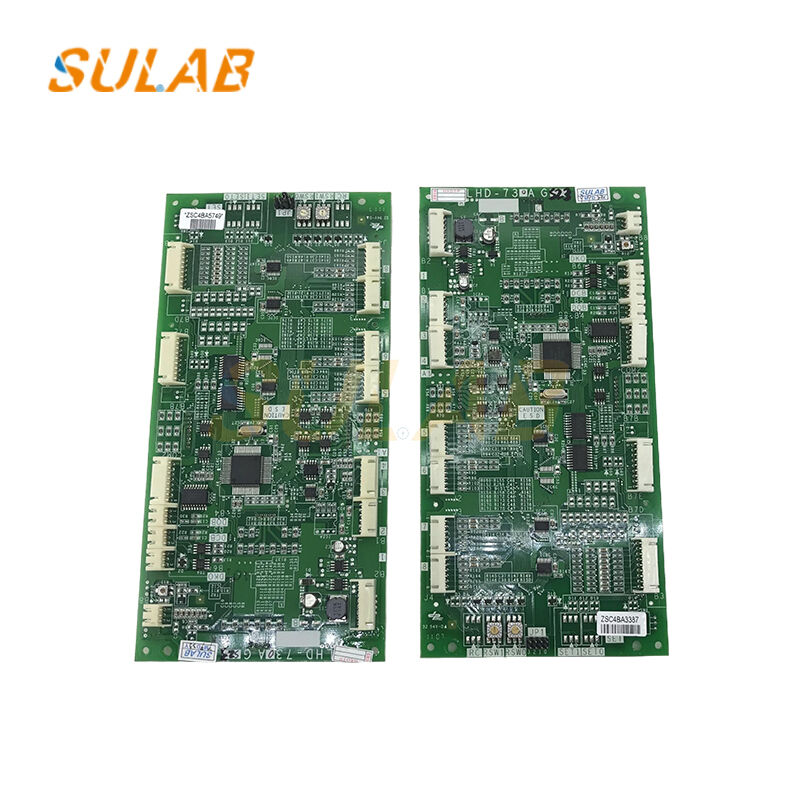

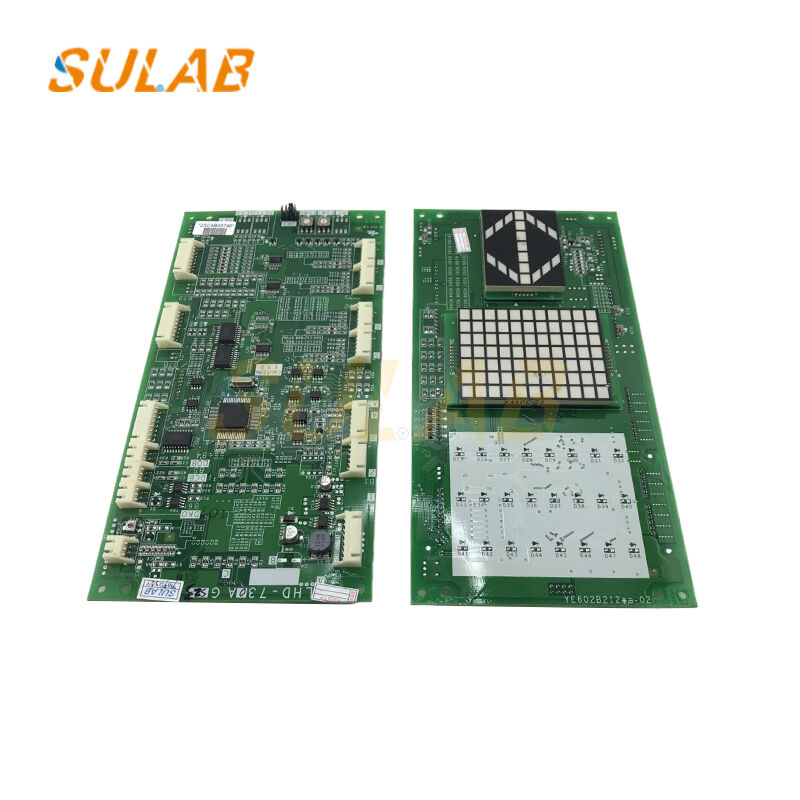

Mitsubishi LHD-730A G23 Elevator Car Display Board with Real-time Floor Display and Direction Status Indicators

Mitsubishi Elevator Car Display Board LHD-730A G23 G23 Elevator LCD Display PCB Car Indicator Board Elevator Spare Parts

The Mitsubishi LHD-730A G23 elevator car display panel is a dedicated display and signal indicator panel installed inside the elevator car. It is a core component of the car control panel, and its main functions are as follows:

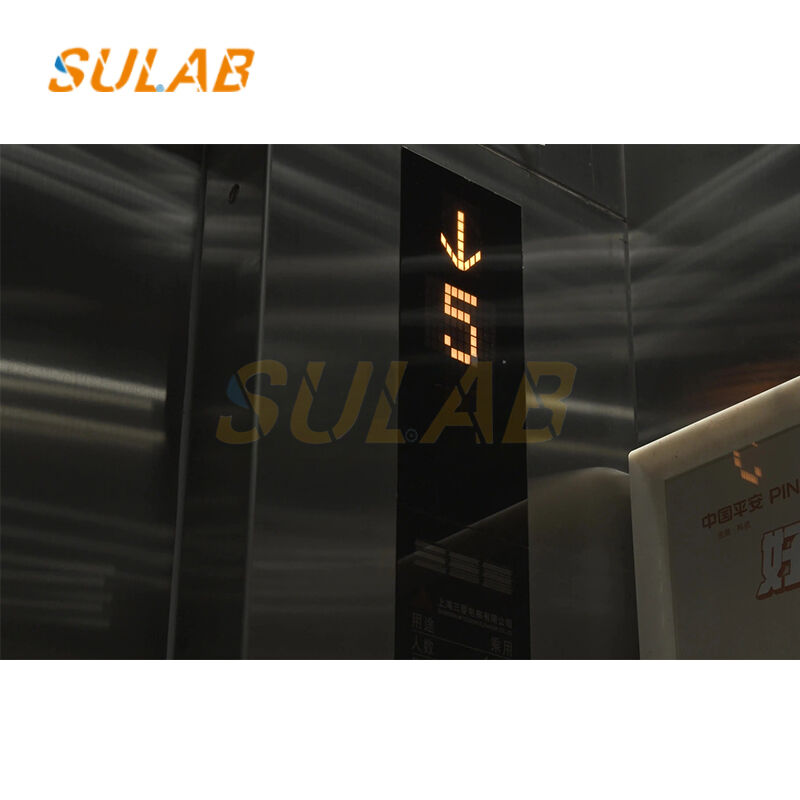

* Real-time display of the elevator's current floor: Receives floor data sent by the elevator main control system, accurately displaying the elevator's current floor number, allowing passengers in the car to intuitively understand the elevator's location.

* Displays the elevator's direction of travel: Indicates the elevator's upward or downward movement using arrows or icons, allowing passengers to clearly judge the elevator's trajectory.

* Displays elevator operating status information: Simultaneously displays multiple status indicators such as overload, full load, door open, door closed, maintenance, and fire alarm, providing real-time feedback on the elevator's operating mode.

It receives and relays communication signals, communicating with the elevator mainboard and control panel mainboard. It receives system commands and provides feedback on the display panel's operating status, ensuring stable signal transmission.

It enhances the riding experience and safety with clear, responsive, and intuitive displays, helping passengers quickly grasp elevator information, reducing misoperation, and improving riding comfort and safety.

It is specifically designed for Mitsubishi elevators, featuring standardized interfaces, program compatibility, and high stability. As a core component of the elevator car display system, it ensures normal passenger-carrying operation.
