COSEL Power Supply PBA300F-24 600F 1000F 150F 100F 50F 30F 15F 10F 1500F-12
Brand Name:
COSEL
Model Number:
PBA10F-24
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
COSEL elevator power supply
,PBA300F-24 power module
,elevator spare parts with warranty
Brand:
COSEL
Description:
Power Supply
Model:
PBA10F-24
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

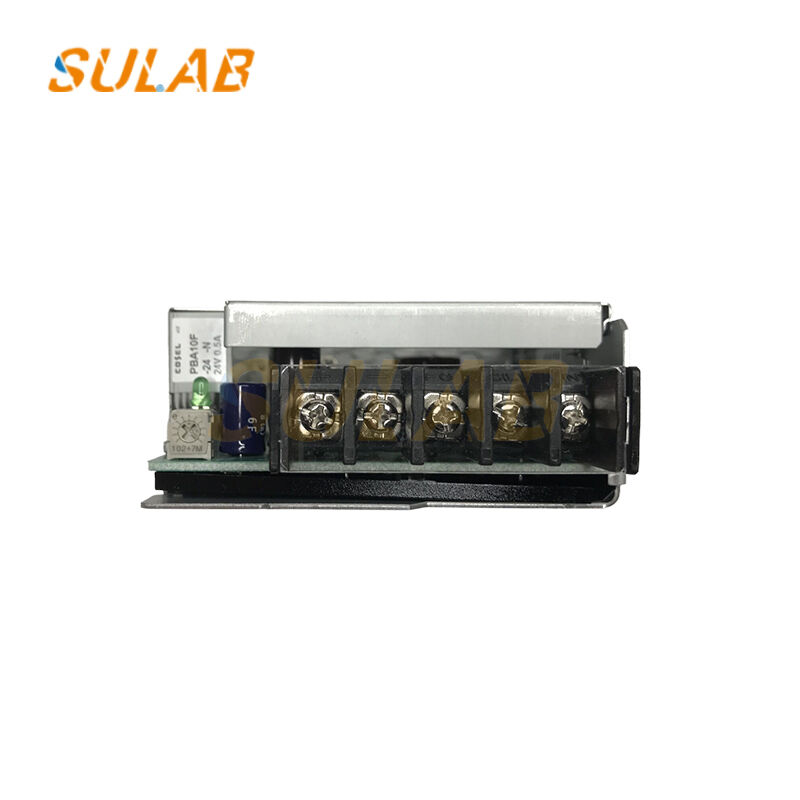

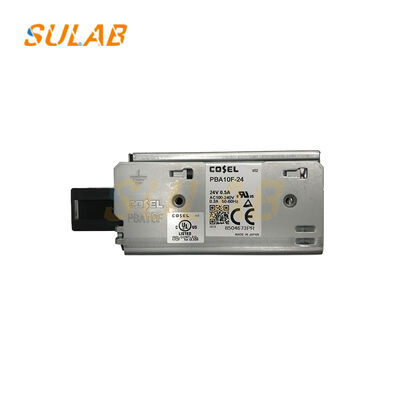

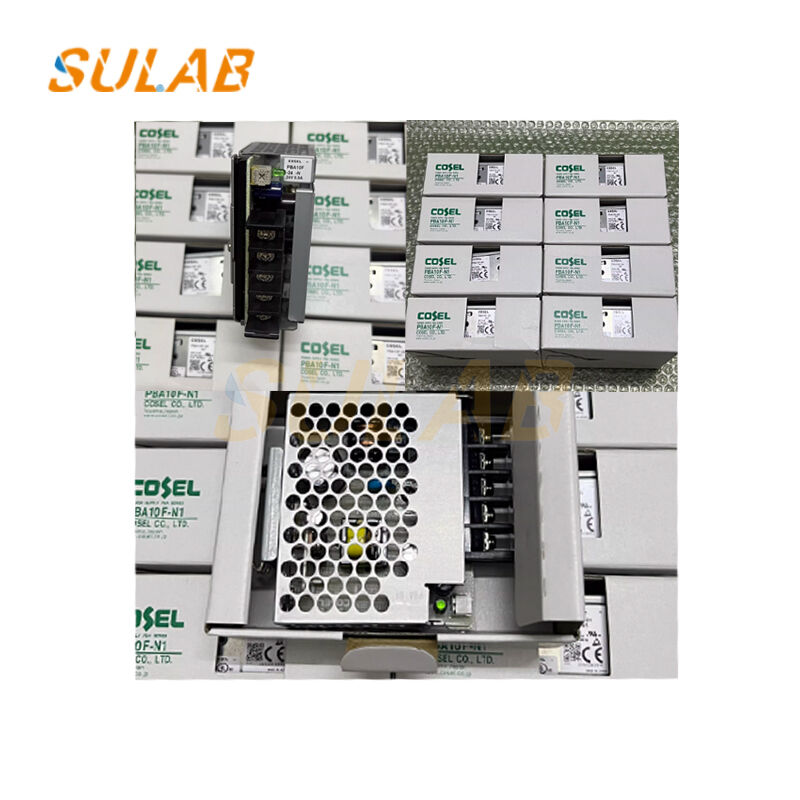

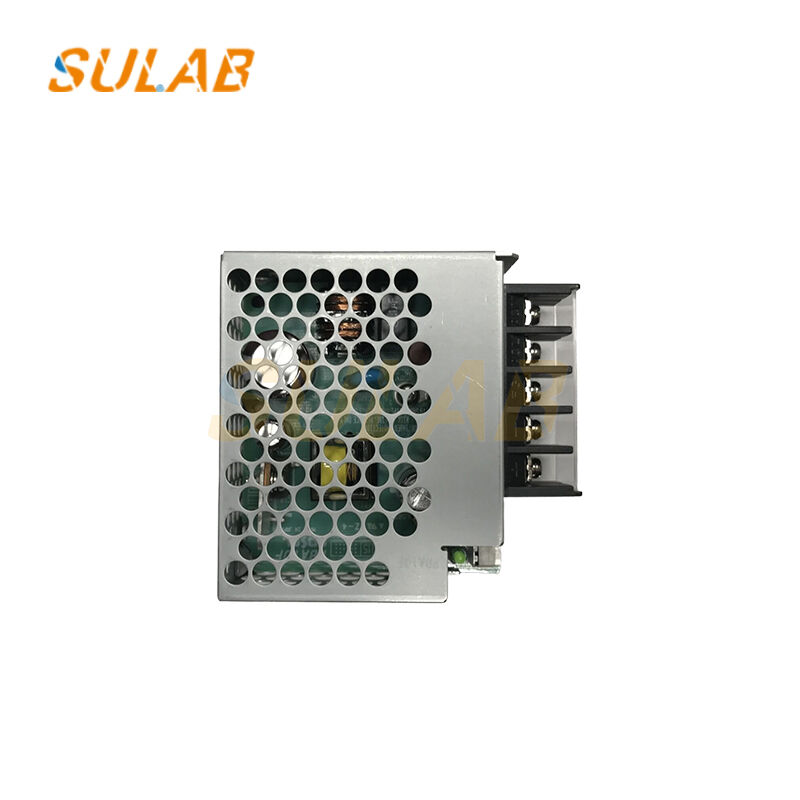

COSEL Power Supply PBA300F-24 600F 1000F 150F 100F 50F 30F 15F 10F 1500F-12
Product Overview
The PBA10F-24 is a 10W-class 24V single-output AC-DC switching power supply from COSEL's PBA series. This compact industrial module is scheduled for discontinuation in October 2028. Designed for reliability and efficiency, it features comprehensive protection systems and is ideal for various industrial applications.
Key Specifications
- Input: AC85-264V / DC110-370V, 47-440Hz
- Output: 24V/0.5A (12W)
- Efficiency: 77% typical
- Isolation: 3kVAC
- Protection: Short-circuit, overcurrent, overvoltage, overtemperature
- Ripple: ≤180mVp-p
- No minimum load required
- Dimensions: 31×68×78mm (excluding terminals)
- Weight: 150g
- Operating Temperature: -10°C to +71°C
- Cooling: Natural convection
Product Details
| Brand | COSEL |
| Description | Power supply |
| Model | PBA10F-24 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Features
Utilizing a forward-flyback topology with low leakage current, this power supply supports both DIN-rail and chassis mounting with screw terminals and includes a power indicator. The unit is certified by CE, cURus, and TUV, ensuring compliance with international safety standards.
Applications
Primary Applications: Elevator control boards, PLCs, sensors, and industrial automation systems. In elevator applications, it powers 24V auxiliary circuits including door operators, hall buttons, and light curtains.
Troubleshooting & Maintenance
Common failures include no output and excessive ripple, typically caused by input surges, poor heat dissipation, or component aging. Quick diagnosis involves checking input voltage, output load conditions, and cooling system performance. This reliable power supply is widely used as an auxiliary power source in industrial and elevator systems.
