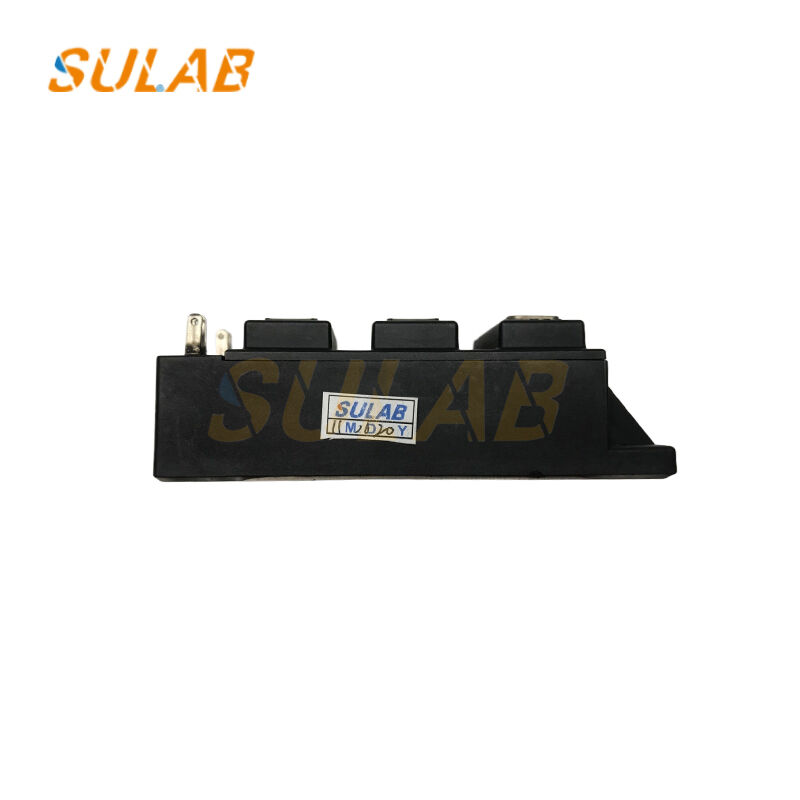

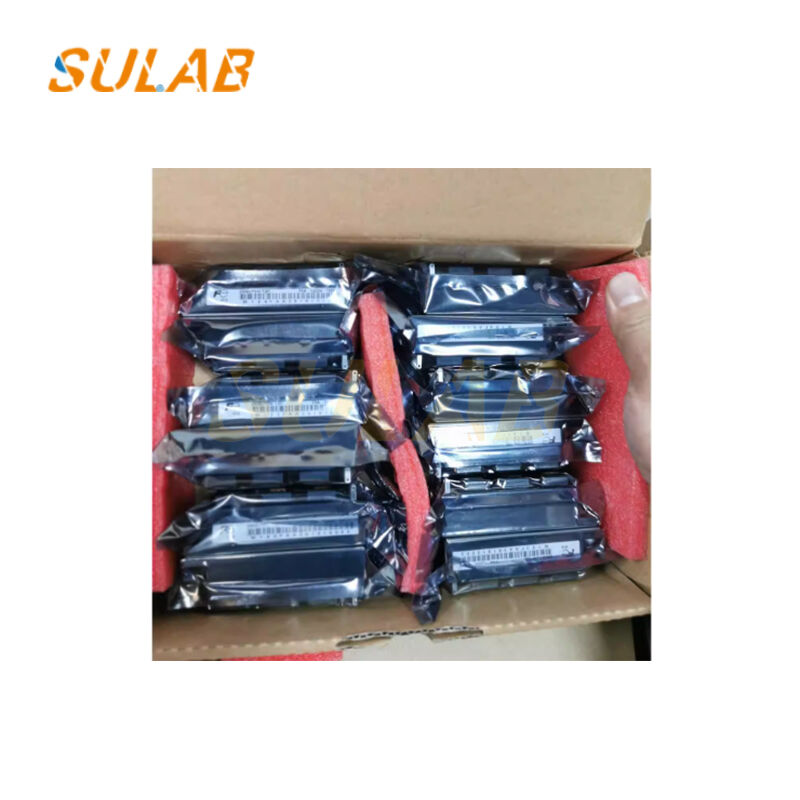

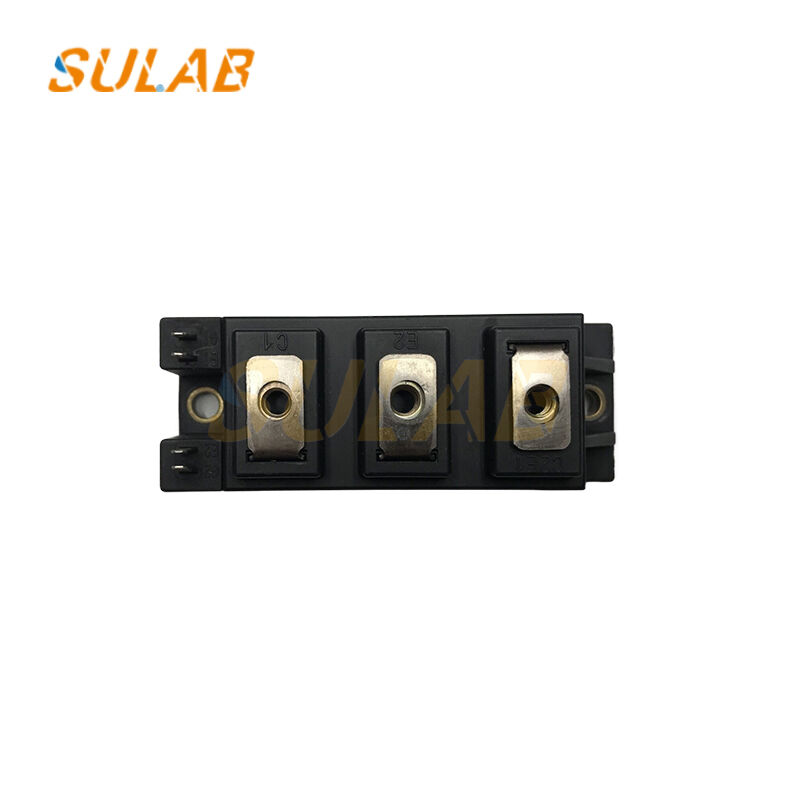

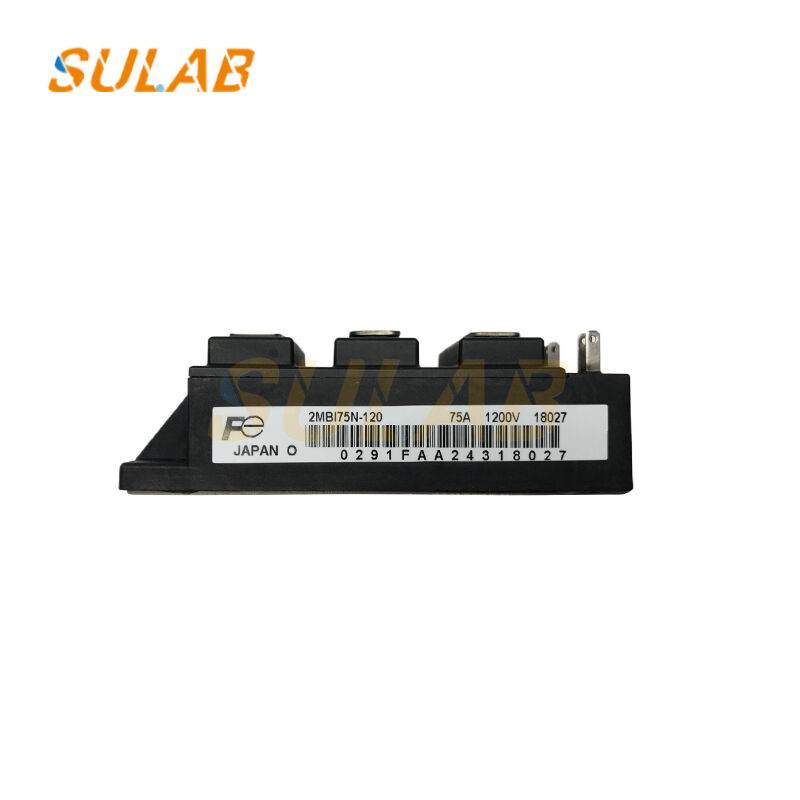

Mitsubishi Elevator Module 2MBI75N-120 2MB175N-120 75A 1200V Actual Product Photo
Brand Name:
Mitsubishi
Model Number:
2MB175N-120
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
Mitsubishi elevator module 75A 1200V
,Elevator spare parts IGBT module
,Mitsubishi 2MBI75N-120 elevator component
Brand:
Mitsubishi
Description:
Module
Model:
2MB175N-120
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description
Mitsubishi Elevator Module 2MBI75N-120 2MB175N-120
The 2MBI75N-120 is a 75A/1200V dual-IGBT module from Fuji Electric's N-series, featuring built-in freewheeling diodes designed for demanding industrial power applications.
Technical Specifications
- Voltage Rating (VCES): 1200V
- Current Rating (IC): 75A continuous / 150A (1ms pulse)
- Saturation Voltage (VCE(sat)): 3.3V @ 75A
- Isolation Voltage: 2500VAC
- Junction Temperature Range: -40°C to +150°C
Product Features
- Low saturation voltage for improved efficiency
- Minimal stray inductance design
- Built-in overcurrent limiting (4-5× rated current)
- Half-bridge configuration with 7-pin flange mounting
- High thermal cycling reliability
- Mounting torque: 3.5N*m
Application Areas
Ideal for elevator inverters, industrial motor control systems, servo drives, UPS systems, and welding machines.
| Brand | Mitsubishi |
|---|---|
| Description | Module |
| Model | 2MB175N-120 |
| Minimum Order Quantity | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Installation & Maintenance Notes
Common failures include overcurrent burnout and drive faults. Requires matched gate drivers and proper cooling systems for optimal performance and longevity.
