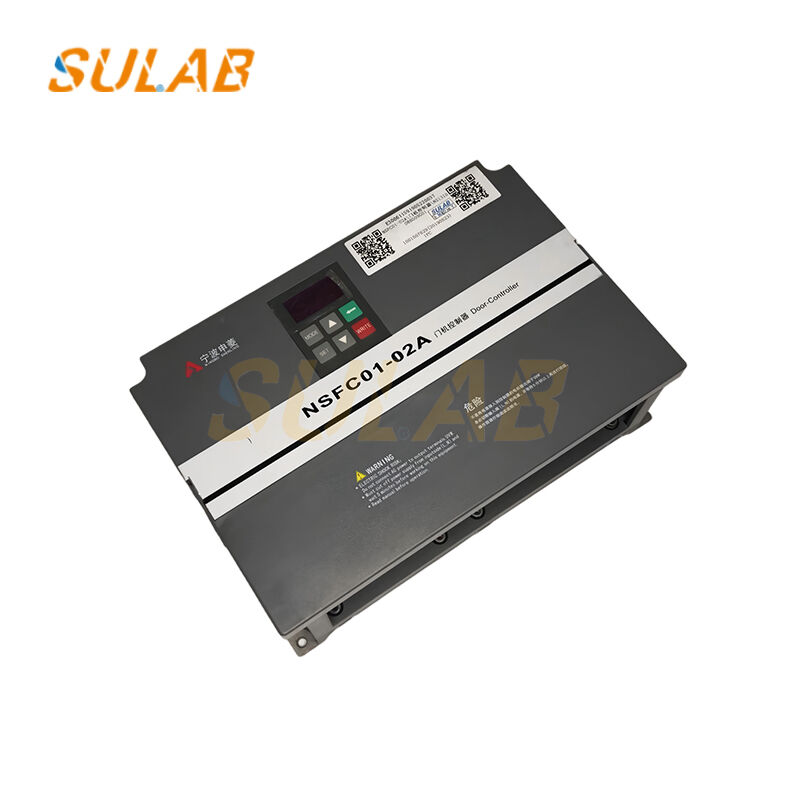

Original Ningbo Shenling NSFC01-02A Elevator Door Controller Inverter 0.4KW with Precise Speed and Position Control and Comprehensive Safety Protection

Original Ningbo Shenling NSFC01-02A Elevator Door Controller Inverter 0.4KW Door Machine Inverter Industrial Grade

Precise Speed ​​and Position Control: Utilizing an advanced closed-loop vector control algorithm, the system achieves precise multi-stage speed adjustment during elevator door opening and closing. The running curve, from start-up and constant speed to deceleration and stopping, is smooth and seamless, reducing the door opening pause time to as low as 0.3 seconds, significantly improving passenger comfort. It also supports automatic door width measurement to adapt to different door opening width requirements.

Door Operator Power Drive Core: Receives door opening and closing commands from the elevator control cabinet, converting single-phase AC power into frequency- and voltage-adjustable three-phase power to drive the permanent magnet synchronous door operator motor. It features high starting torque and fast dynamic response, easily handling the driving needs of doors of varying weights. With a rated output of 0.4KW, it meets the power requirements of mainstream elevator door operators.

Comprehensive safety protection functions: Built-in multiple safety protection mechanisms, including door jamming protection (response time <50ms), overload protection, overcurrent protection, and reverse power connection protection. When the door jams or the load is abnormal, the output is immediately cut off and an alarm is triggered to prevent the motor from burning out or the door from being damaged. At the same time, the door opening/closing limit signal monitoring ensures that the door is accurately in place before feeding back the running signal, thus preventing the elevator from running with the door.

Fault Self-Diagnosis and Feedback: Equipped with comprehensive self-diagnostic functions, it monitors the door operator's operating status in real time, automatically identifying problems such as motor faults, wiring abnormalities, and limit signal failures. It outputs fault signals through dedicated terminals, facilitating quick troubleshooting by maintenance personnel and reducing elevator downtime.

Wide Compatibility and Flexible Debugging: Compatible with door operator systems from various elevator brands including Jiangnan Jiajie, Kangli, Jutong, and Otis. Supports encoder closed-loop control, and is easy to debug. Door opening and closing speeds, acceleration/deceleration times, and torque parameters can be modified via buttons or external devices without complex programming, allowing even novice maintenance personnel to quickly learn how to use it.

Energy Saving and Environmental Adaptability Advantages: Utilizes highly efficient energy-saving technology, consuming less energy than traditional door operator controllers, reducing elevator operating costs in the long term. It also features industrial-grade protection, a wide operating temperature range, strong anti-electromagnetic interference capabilities, and can withstand the complex electrical environment of the elevator machine room, ensuring stable and reliable operation.
