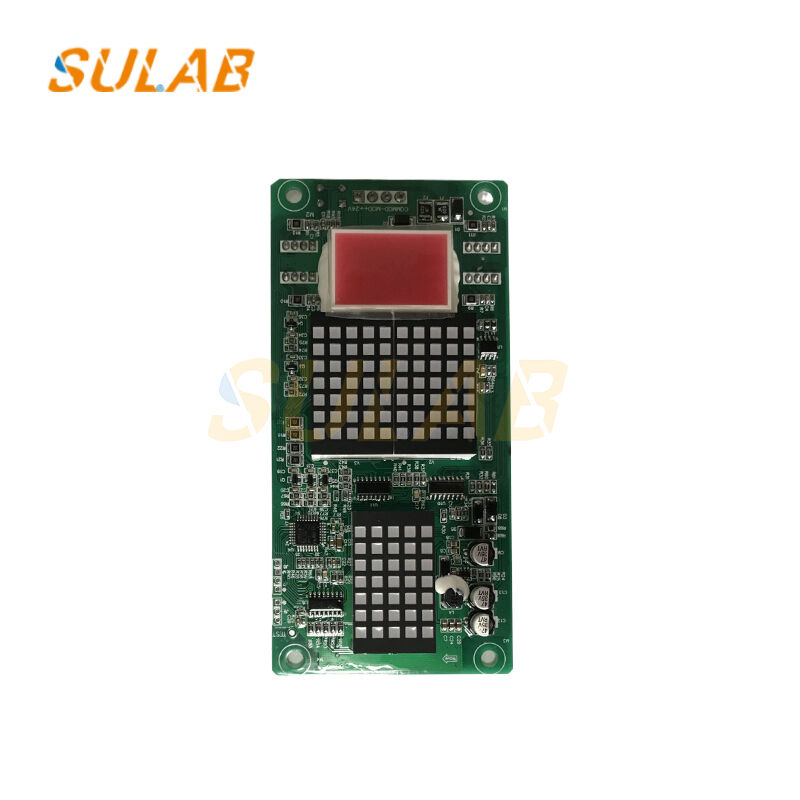

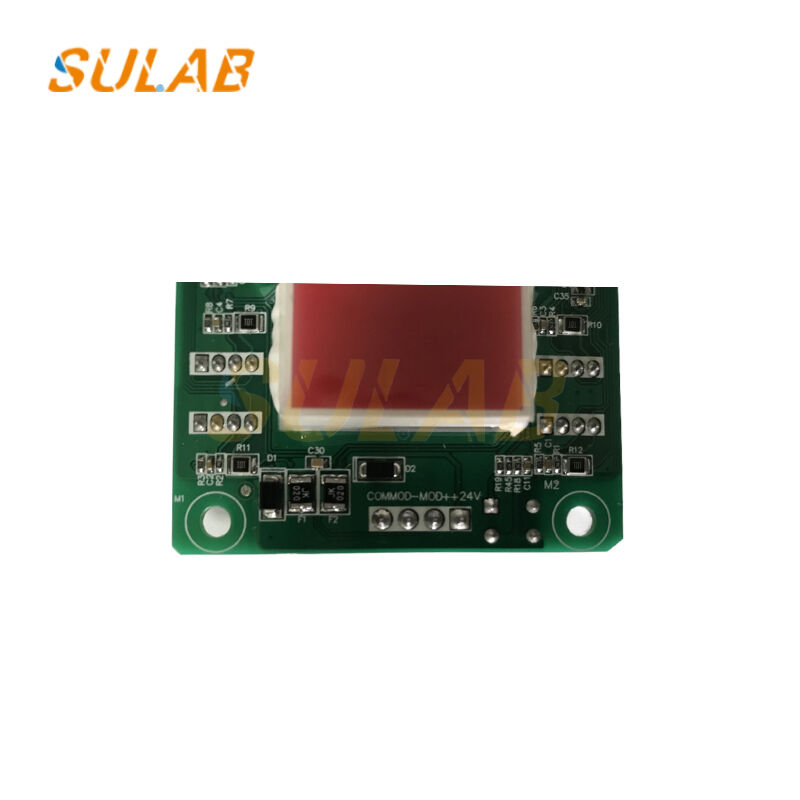

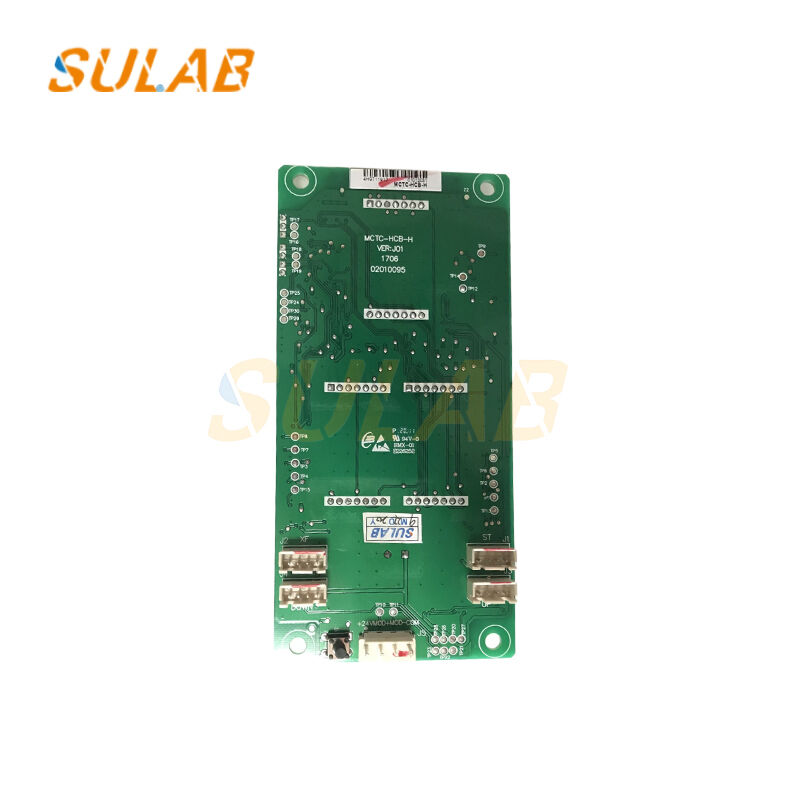

Monarch MCTC-HCB-H Elevator Call Panel with High Brightness LCD/LED Display Seamless Compatibility and Industrial-Grade Stability

Monarch MCTC-HCB-H Lift External Call Panel High Brightness LCD/LED Display  Call Display Board Floor Direction Indicator

Elevator Command Reception and Transmission: Integrated with floor call buttons for up and down directions, the panel quickly collects the elevator command after a passenger presses it and transmits it to the Monarch control cabinet mainboard via the communication bus. The mainboard then schedules elevator operation according to the command, making it the core terminal for receiving external elevator requests.

Elevator Status Visualization: A clear display of the elevator's current floor, direction of travel (up/down arrows), and busy/idle status is displayed on an LCD/high-brightness LED screen. Some versions support displaying elevator load indicators and simple fault codes, allowing waiting passengers to intuitively understand elevator dynamics, avoiding unnecessary waiting and improving the elevator experience.

Multi-Scene Adaptability: The high-brightness display supports clear visibility in strong light environments and automatically softens the light in dark environments, adapting to different lighting scenarios such as shopping malls, underground parking garages, and outdoor elevator lobbies. The LCD version can also display simple maintenance reminders and customized floor markings to meet personalized usage needs.

Seamless Compatibility with Monarch Systems: Designed specifically for Monarch NICE3000+/3000 series control systems, with fully compatible communication protocols. Original products require no programming or debugging, and can be installed and used directly without modifying control cabinet parameters. They can directly replace old external call panels, significantly reducing installation and maintenance complexity. Suitable for both new elevator installations and retrofitting of existing elevator external call systems.

Fault Feedback and Simple Prompts: When the elevator experiences a minor malfunction or enters special modes such as maintenance or fire alarm, the panel will simultaneously display corresponding prompt symbols/simple fault codes. This alerts passengers that the elevator is not functioning properly and provides maintenance personnel with initial troubleshooting information, shortening problem location time.

Industrial-Grade Stable Operation Guarantee: Utilizing industrial-grade anti-interference chips and a moisture-proof and dust-proof design, the operating temperature range is -10℃ to +60℃. It can withstand the complex electrical environment and temperature and humidity changes in elevator shafts and floor external call areas. It resists electromagnetic interference from inverters, contactors, and other equipment, and remains responsive even with high-frequency button presses, meeting the requirements for 24/7 uninterrupted elevator operation.

Modular design facilitates maintenance: The overall structure is modular and integrated, and the installation interface with the external call panel is of industry standard size. Disassembly and replacement only require plugging and unplugging the communication cable and power cable, without complicated tools. When the panel malfunctions, such as button failure or display failure, it can be quickly replaced, which greatly shortens the elevator downtime for maintenance.
