Monarch Elevator External Call Display Panel MCTC-HCB-G1 Car Display Screen MCTC-HCB-G2 Horizontal And Vertical Display
Brand Name:
Monarch
Model Number:
MCTC-HCB-G1
Minimum Order Quantity:
1
Delivery Time:
2-3 working days
Payment Terms:
D/P,T/T,Western Union
Inquiry Now
Get A Quote
Specifications
Highlight Features
Monarch elevator call display panel
,elevator car display screen
,external elevator display panel
Brand:
Monarch
Description:
Elevator Board
Model:
MCTC-HCB-G1
MOQ:
1PC
Transportion:
TNT, UPS, DHL, Fedex, Air, Sea
Packages:
Carton, Wooden Case, Pallet Etc
Delivery Time:
Normally 2-3 Working Days After Payment
Warranty:
One Year
Payment Method:
Company Bank, Western Union, Alibaba, Paypal Etc
Product Description

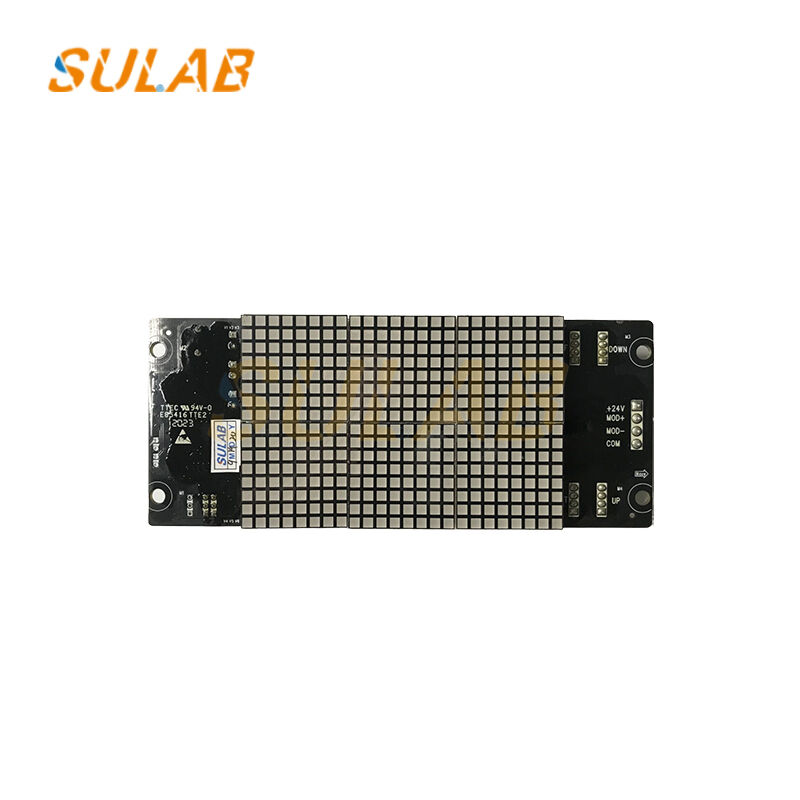

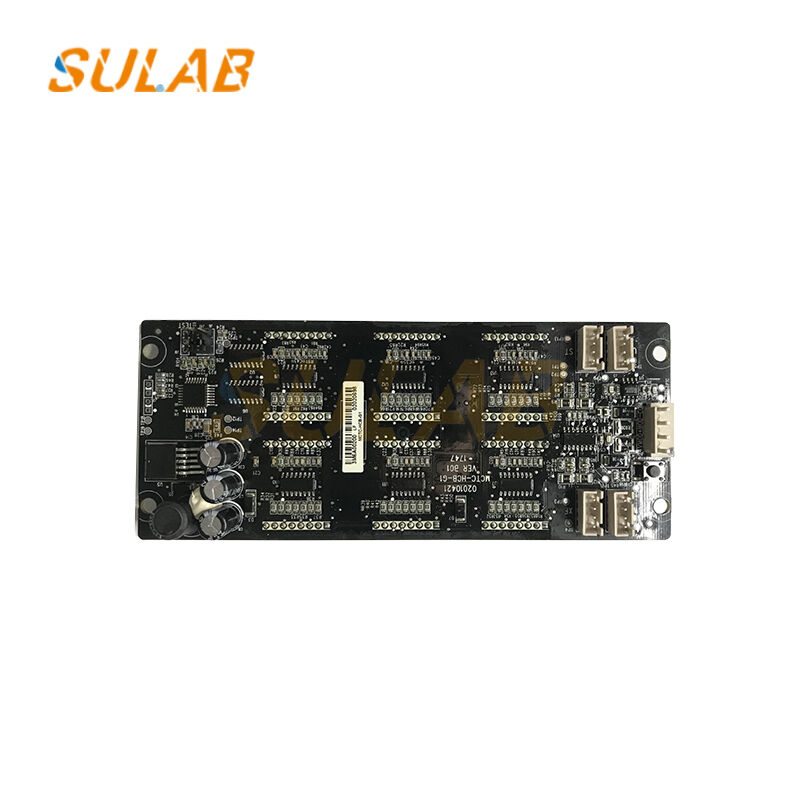

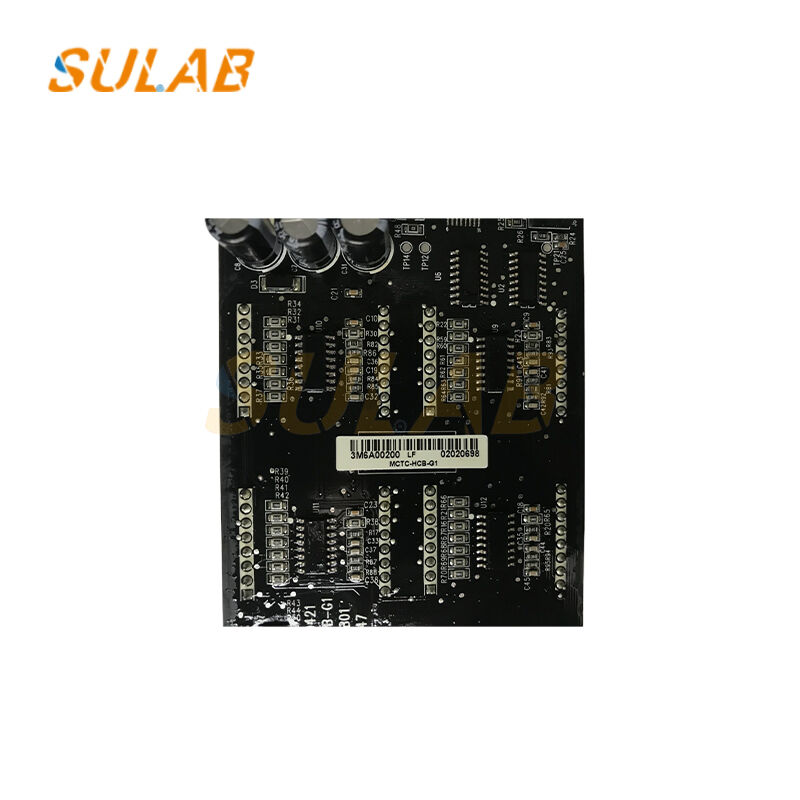

Monarch Elevator External Call Display Panel MCTC-HCB-G1 Car Display Screen
The Monarch MCTC-HCB-G1 elevator call display panel is a specialized human-computer interface solution developed by Suzhou Monarch for various elevator applications. Designed for residential and commercial elevator systems, this display panel serves as a core component of elevator call systems, providing clear operational status information to users.
Product Features
- 6 pieces of 8×8 red dot matrix large-area display
- Supports both horizontal and vertical display modes
- Chinese and English bilingual display capability
- Displays three-digit floor numbers simultaneously
- Scrolling arrows indicate elevator operation direction
- Special condition displays: maintenance, overload, fire protection
- Standardized interface design for easy installation and maintenance
Product Specifications
| Brand | Monarch |
| Description | Elevator board |
| Model | MCTC-HCB-G1 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Technical Parameters
Overall Dimensions: 157mm × 65mm × 22mm
Power Supply: DC 24V
Communication Interface: MODbus bus (CN1 terminal includes +24V, MOD+, MOD-, COM)
Digital Input: 6-channel, supporting lock ladder, fire protection, up/down call signals
Additional Features: Button light output function
Configuration: Floor address setting via S1 DIP switch (range 0-63), supports up to 56 floor calls
Compatibility & Applications: Compatible with mainstream Monarch elevator control systems, widely used in various elevator projects with stable performance and reliable operation.
