Highlight
waterproof elevator limit switch
,TZ series elevator switch
,TEND waterproof elevator parts
-
BrandTEND
-
DescriptionLimit Switch
-
ModelTZ-6101
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Alibaba, Paypal Etc
-
Brand NameTEND
-
Model NumberTZ-6101
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T,Western Union
TEND Waterproof Limit Switch TZ-6104 6004 6001 6102 6143 6101 6002
TEND Waterproof Limit Switch TZ-6104 6004 6001 6102 6143 6101 6002

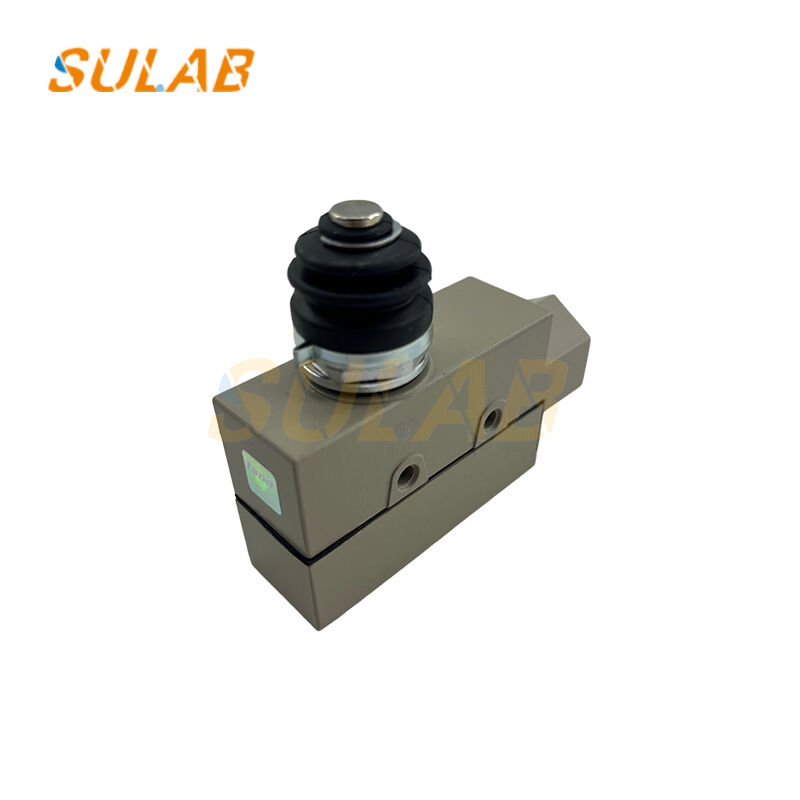

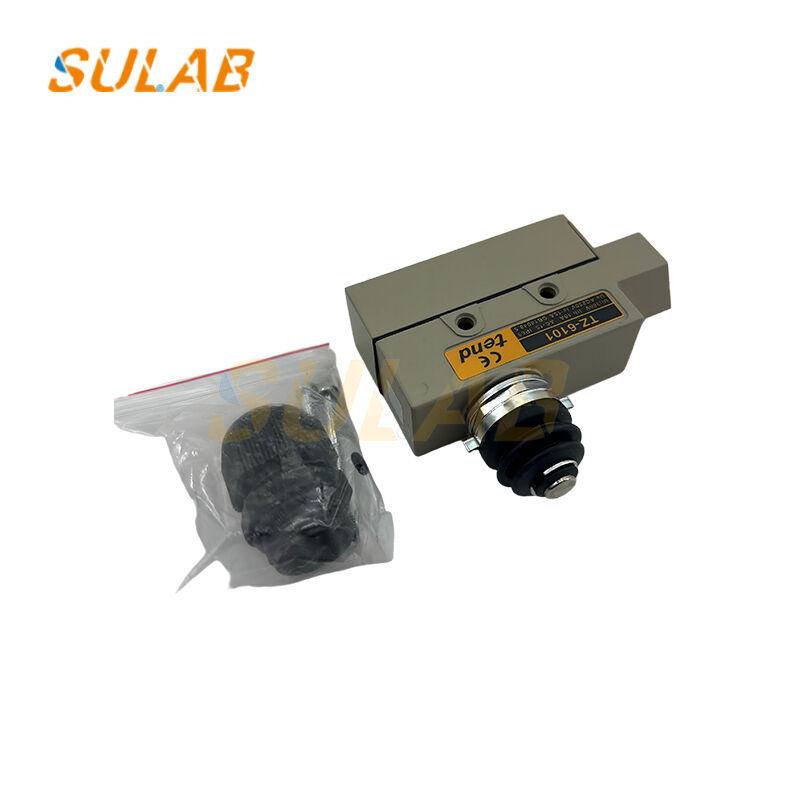

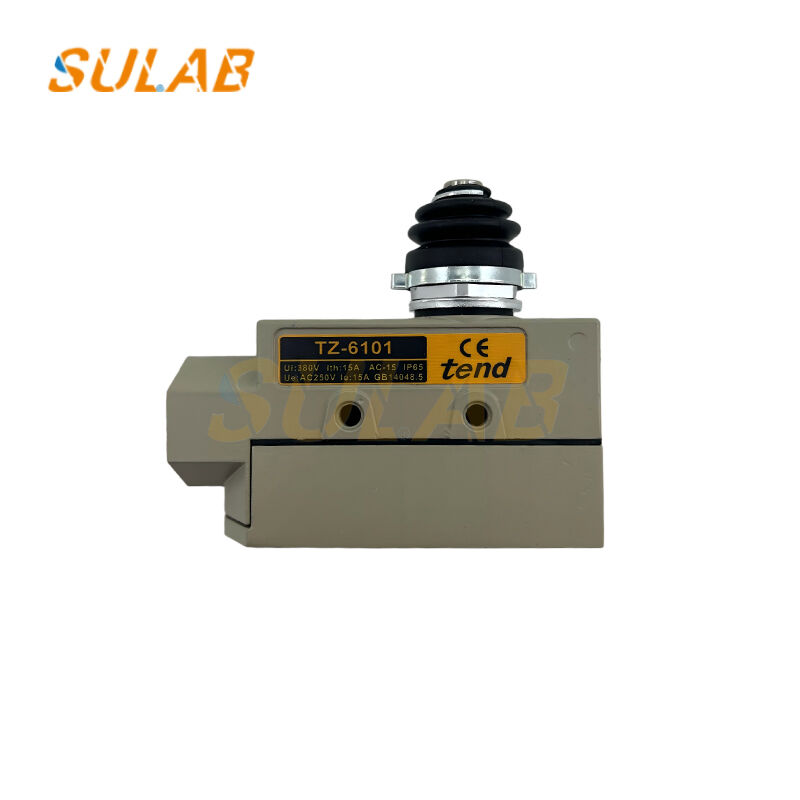

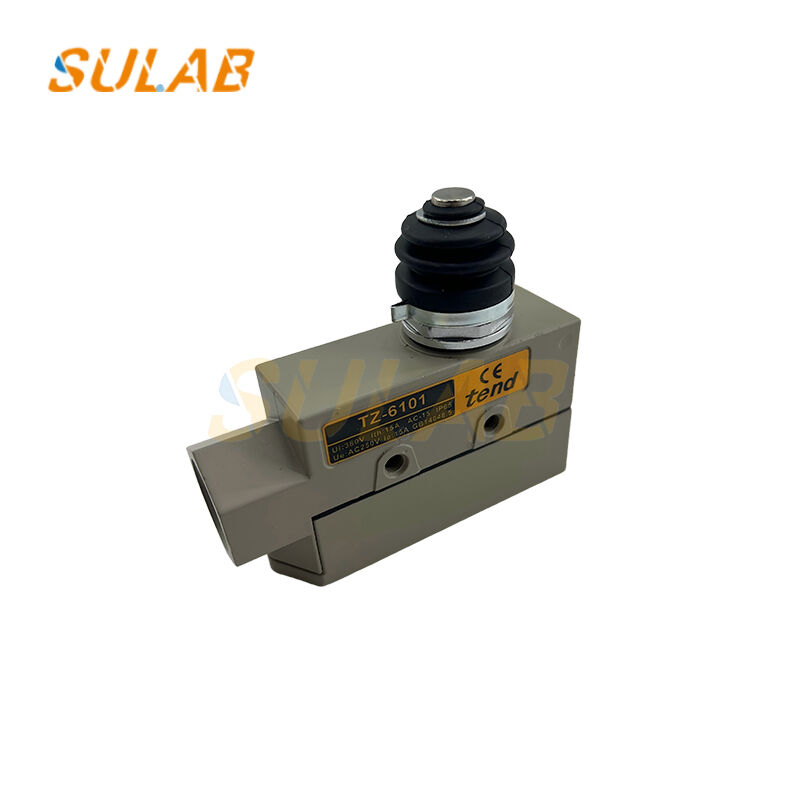

Tend TZ-6101 is a waterproof plunger-type limit switch from Taiwan Tend, part of the TZ-6 series horizontal sealed limit switches. This key component provides reliable position detection and safety protection in industrial automation applications.
Product Specifications
| Brand | TEND |
| Description | Limit Switch |
| Model | TZ-6101 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Alibaba, Paypal etc |
Key Features & Construction
- Die-cast aluminum housing with stainless steel plunger
- IP65-rated sealed construction for water, oil, and dust resistance
- Dual-circuit contacts (1 NO, 1 NC) with rated capacity of AC250V 15A
- Three mounting methods: side, base, and diagonal mounting
- Front-facing terminals for easy installation and maintenance
- Mechanical life exceeding one million cycles
- High shock and vibration resistance
- Operating temperature range: -10℃ to +80℃
- Compatible with various AC/DC control circuits
Core Functions & Applications
This limit switch provides essential functions including equipment travel limitation, direction control, and overtravel protection. When moving parts contact the plunger, it triggers contact switching to cut or conduct control circuits, preventing equipment damage from over-travel. Widely applied in elevator leveling, machine tool positioning, and assembly line detection systems.
Certifications: CE and RoHS certified. This cost-effective standard sealed limit switch delivers reliable electrical performance with compact, durable design for industrial control applications in harsh, contaminated environments.
