Fujitec Compatible Elevator Control Board Direct Replacement with Original Factory Specifications

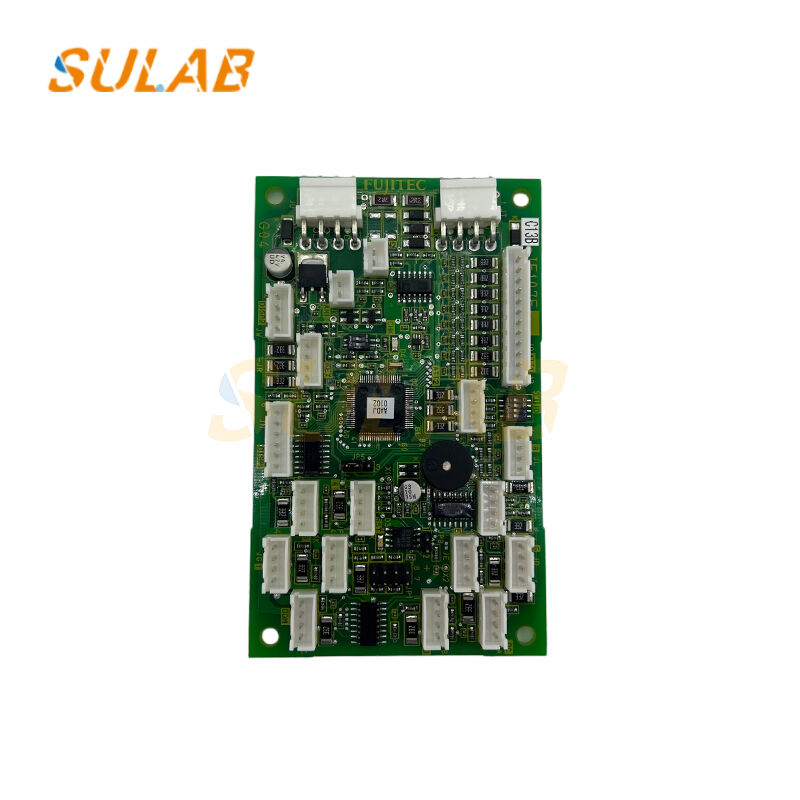

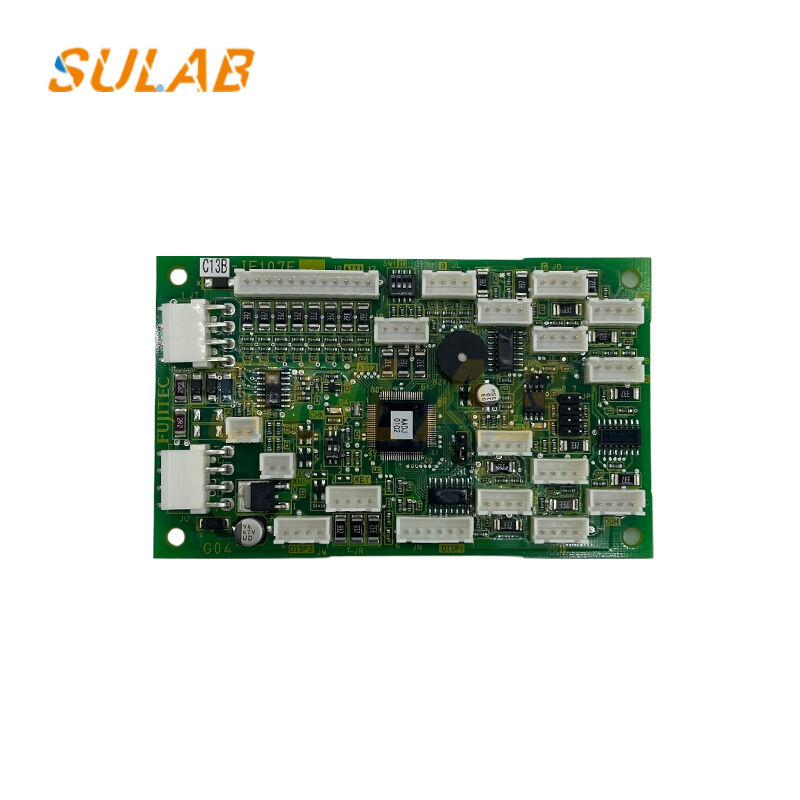

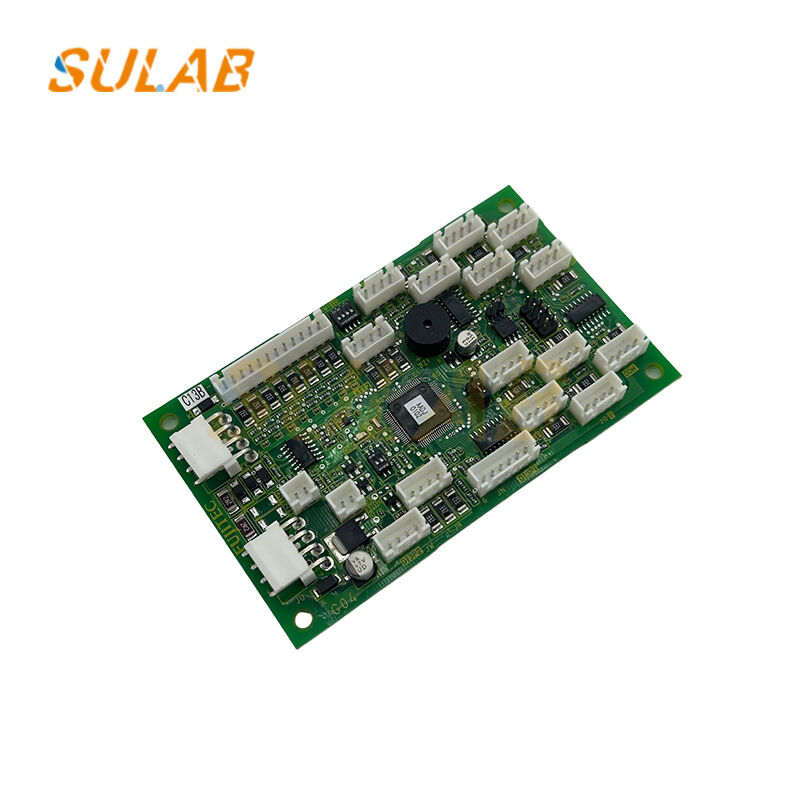

C13B-IF107E Fujitec Lift Car Control Board Direct Replacement Part Lift Car Control Board Direct Replacement Part Car interior instruction panel original factory specifications direct installation

1. Car In-Car Command Reception and Transmission: As the core of in-car command processing, this function receives operation commands from buttons such as floor selection buttons, door open/close buttons, and emergency call buttons within the car. After rapid processing, it transmits the commands to the elevator main control board, ensuring accurate command response. This allows the elevator to stop at the corresponding floor according to passenger needs and complete door opening/closing actions. It also supports user-friendly functions such as reverse call disabling, improving operational efficiency.

2. Car In-Car and Main Control System Communication and Linkage: This function handles the two-way signal exchange between the car in-car system and the elevator control cabinet. On one hand, it uploads in-car operation commands to the main control board; on the other hand, it receives elevator operating status signals (such as current floor, direction of travel, fault indications, etc.) from the main control board. This achieves coordinated synchronization between the car in-car system and the overall elevator system, preventing signal interruptions or mistransmissions.

3. Operation Status Feedback and Display Control: Linked to the in-car display panel, it provides real-time feedback on the elevator's operating status, including the current floor, upward/downward direction, overload, and maintenance status, allowing passengers to clearly understand the elevator's operating conditions; at the same time, it controls in-car indicator lights, buzzers, and other components to achieve functions such as command confirmation prompts and overload alarms, improving the elevator riding experience and safety.

4. Fault Detection and Feedback: Built-in simple fault detection logic monitors the real-time operating status of the car's command circuit and communication lines. When problems such as button malfunction or abnormal signal transmission occur, the fault signal is promptly fed back to the main control board, triggering an elevator fault alert. This facilitates quick problem location and troubleshooting by maintenance personnel. It also supports fault data storage, providing a basis for subsequent maintenance.

5. Original Factory Compatibility and Convenient Replacement: Manufactured strictly according to Huasheng Fujitec's original factory specifications, the installation dimensions, interfaces, and communication protocols are fully compatible with Huasheng Fujitec's mainstream elevator models. No wiring modifications or programming adjustments are required; simply plug and unplug the old board to restore normal operation of the car system, significantly reducing maintenance time and labor costs. It is compatible with both new Huasheng Fujitec elevators and old elevator retrofitting needs.

6. Stable, Anti-interference, and Durable: Adopting an industrial-grade circuit design, it has strong anti-electromagnetic interference capabilities, can withstand high-frequency interference from elevator machine room inverters and high-power equipment, and is suitable for the 24-hour uninterrupted operation of elevators; it selects highly durable components, with a low failure rate and long service life, and also has good environmental adaptability, which can adapt to the operating environment of elevators in different scenarios, meeting the high-quality standards of Huasheng Fujitec Elevator.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
