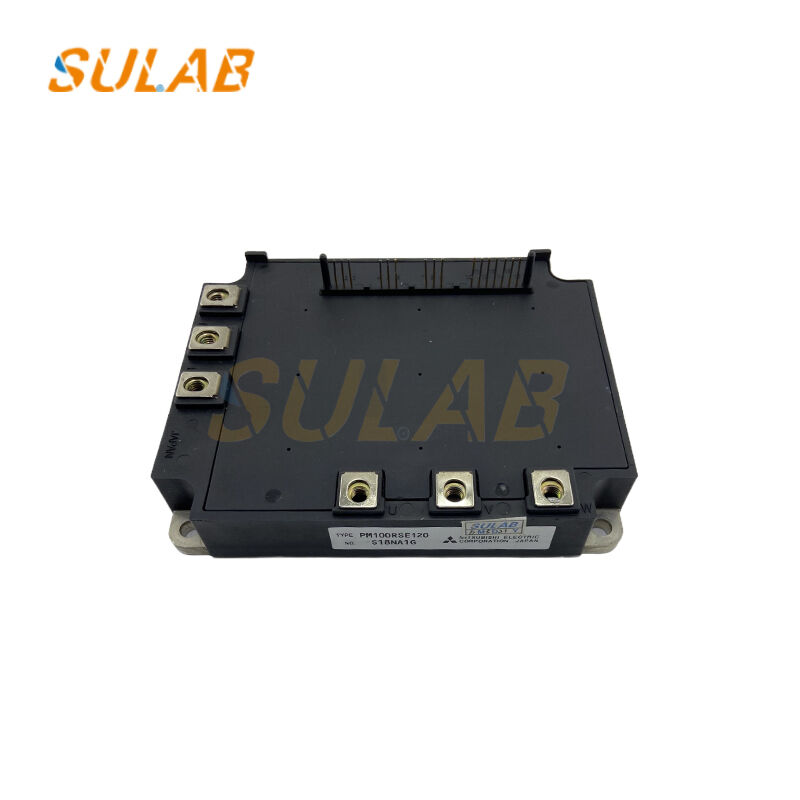

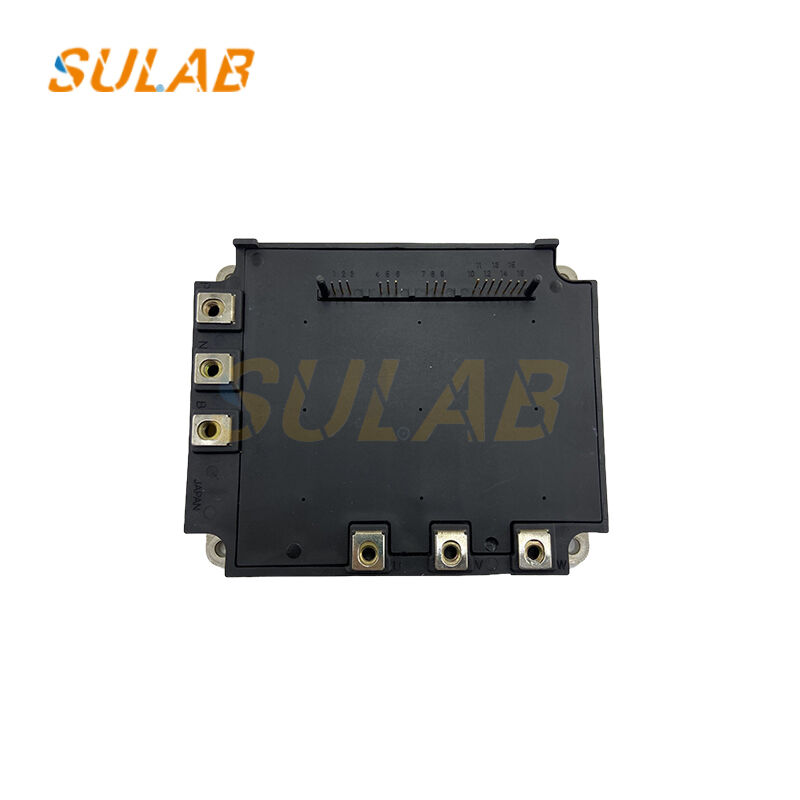

Mitsubishi PM100RSE120 Intelligent Power Module 100A 1200V with Overcurrent Protection and Energy Efficient for Elevator Inverter & Motor Control

PM100RSE120 Mitsubishi Intelligent Power Module For Lift Inverter & Motor Control High Power Lift Spare Parts

Variable frequency drive and speed control rectifies three-phase AC power into DC power, then inverts it into AC power with adjustable frequency and voltage. This precisely controls the elevator traction motor speed, achieving smooth speed regulation throughout the entire process of elevator start-up, acceleration, constant speed, deceleration, and leveling, ensuring stable, comfortable, and low-noise operation.

High-power power conversion and output: Rated parameters 100A / 1200V, capable of handling the high-power output of medium- and low-speed elevator (≤2.5m/s) traction machines, providing stable power to the motor. Suitable for residential elevators, shopping mall freight elevators, medical elevators, etc.

Overcurrent/overvoltage/overheat protection: Built-in drive, detection, and protection circuits monitor current, voltage, and temperature in real time; in case of overcurrent, short circuit, overvoltage, or overheating, the IGBT is immediately shut down, protecting the inverter, motor, and elevator main control system from burnout.

Highly efficient and energy-saving, low-loss: Utilizing fourth-generation IGBT chip technology, this system features low conduction and switching losses, high frequency conversion efficiency, reduced elevator operating energy consumption, and improved overall system energy efficiency.

Signal feedback and fault diagnosis: Real-time feedback of operating status, temperature, and current signals to the elevator mainboard; outputting alarm signals in case of faults, facilitating rapid problem location for maintenance (e.g., module overheating, short circuit, drive malfunction).

Stable and reliable, with strong anti-interference: Industrial-grade packaging and a strong anti-interference design, suitable for high-temperature, humid, and dusty environments in elevator machine rooms; modular structure for convenient installation and replacement, compatible with Mitsubishi Lingyun, Lingjie, GPS series, and other elevators.
