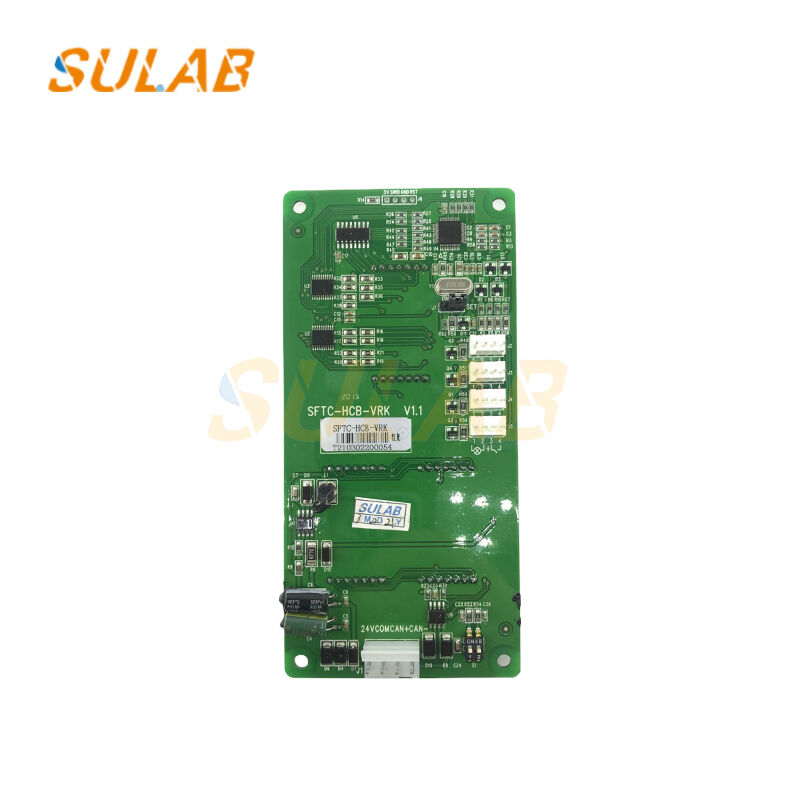

SFTC-HCB-VRK Elevator Hall Call Display Board with CAN Bus Communication Floor Display and Fault Code for STEP Elevator

SFTC-HCB-VRK (SM-04-VRK) Elevator Hall Call Display Board / Outer Call Panel For STEP Elevator Parts Replacement Parts

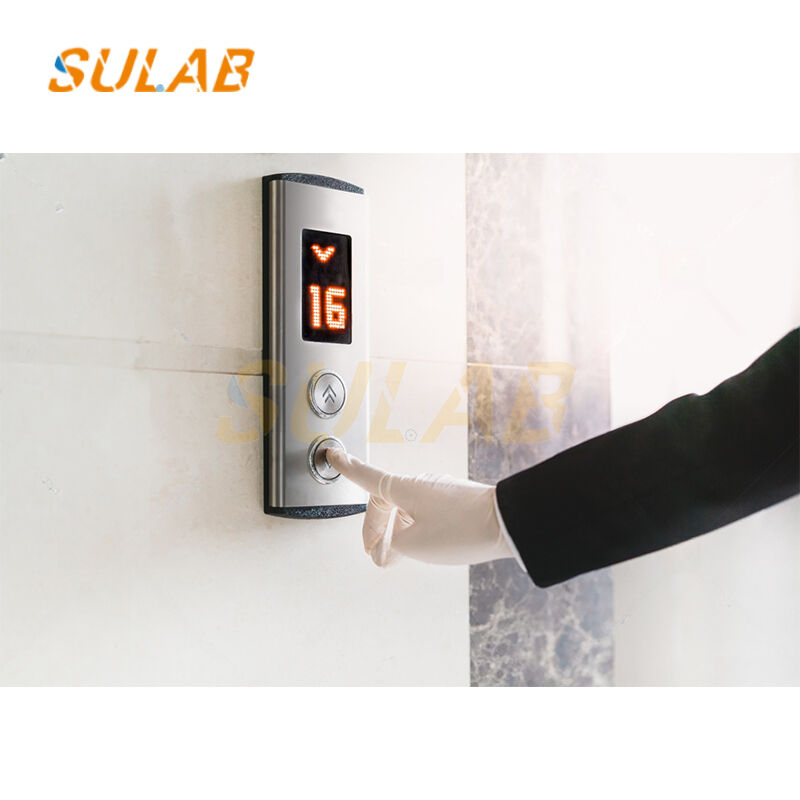

Floor Display

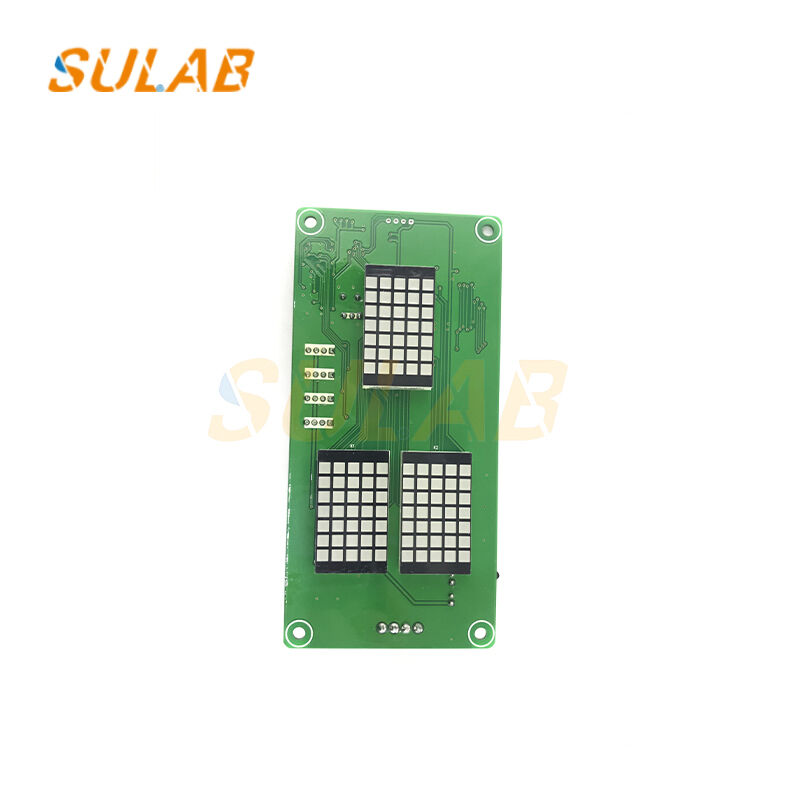

Highlighted red segment codes / dot matrix display of the current elevator floor (1, 2, 3...)
Clearly displays elevator up (↑) / down (↓) direction of travel
External Call Command Reception
Receives up/down button signals from outside the hall and sends a call request to the elevator main control system
Button indicator light on: Indicates the call has been registered; light off: Elevator has arrived and responded
Status Information Display
Full load, fire alarm, overload, park, etc.
Fault Code Display (for easy maintenance)

Communication and Control

CAN bus communication for stable signal transmission with the Xinshida motherboard (e.g., AS380)

Supports floor address DIP switch settings (FLOW/SET jumper pins)

Built-in terminating resistor (CAN DIP switch) to ensure stable long-distance communication

Applicable Scenarios
Xinshida system passenger elevators and freight elevators

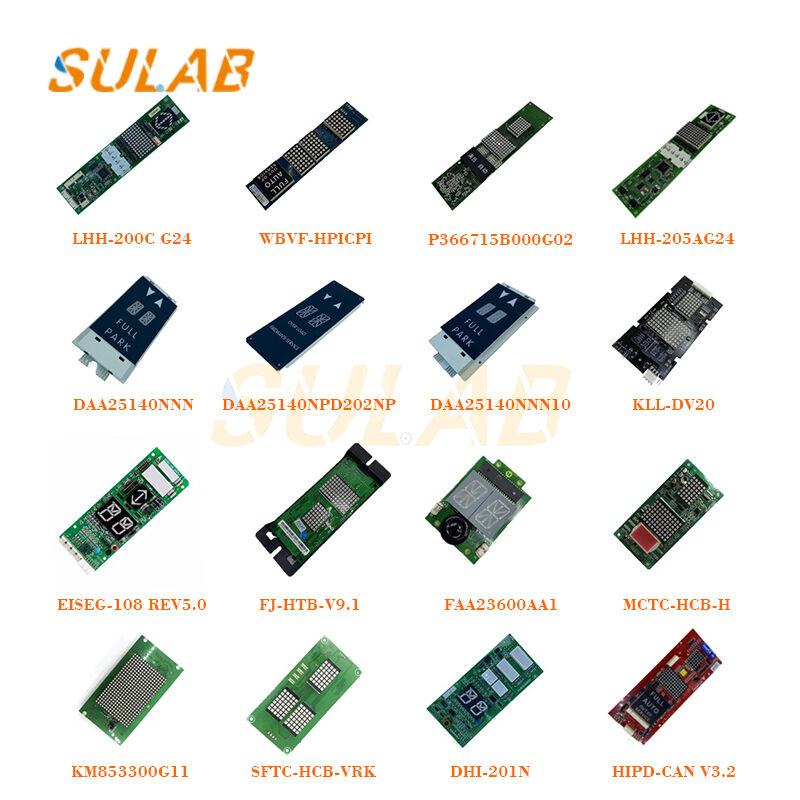

Alternative Models: SM-04-VRF, SM.04VR/K, SM-04-VRE, etc.
