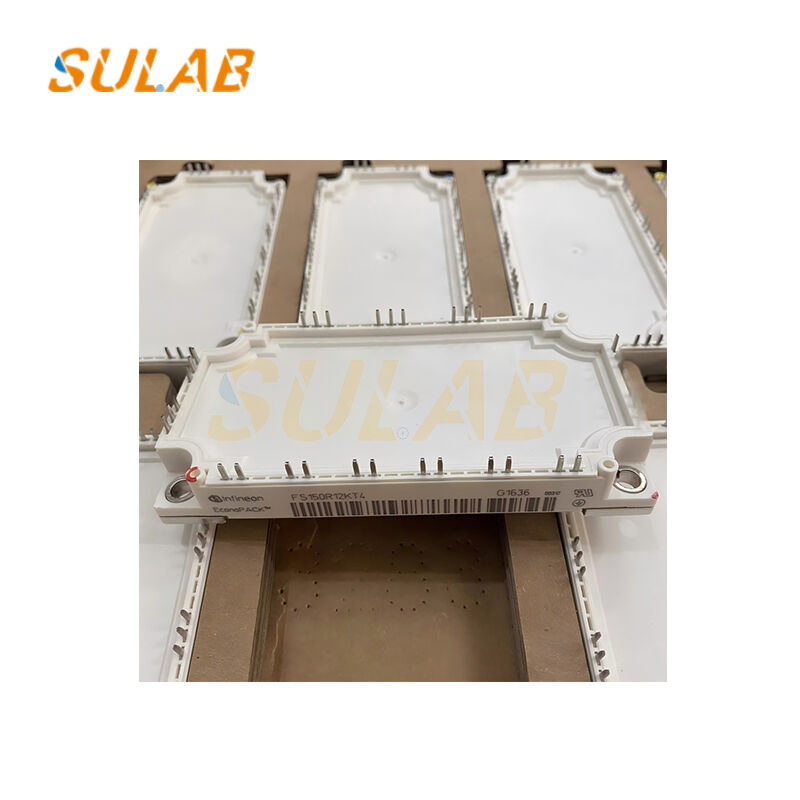

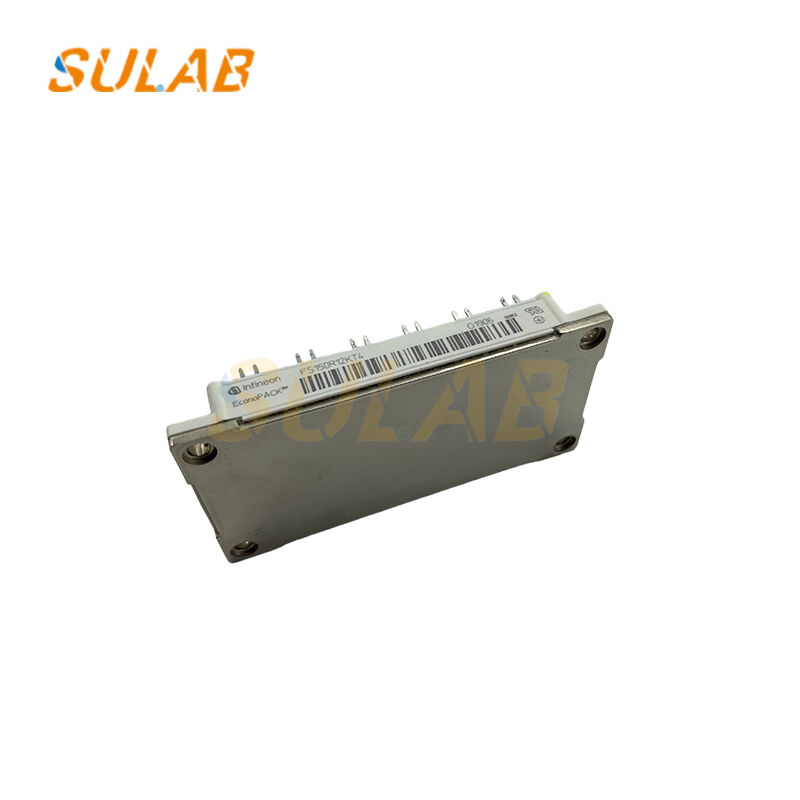

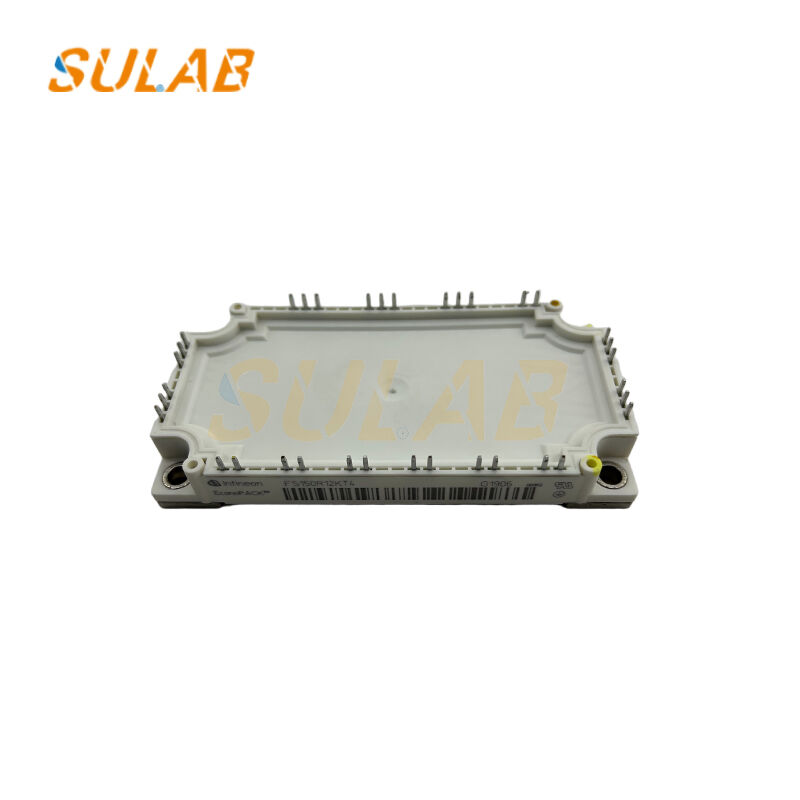

Original FS150R12KT4 Infineon IGBT Module 1200V 150A Six-Pack EconoPACK3 with TRENCHSTOP IGBT4 for Elevator Inverter Motor Drive

Original FS150R12KT4 Infineon IGBT Module, 1200V 150A Sixpack EconoPACK3, TRENCHSTOP IGBT4, EmCon4 Diode, NTC Sensor, Low Loss, High Reliability for Elevator Inverter Motor Drive

Basic Parameters

Model: FS150R12KT4

Brand: Infineon

Type: Six-Pack IGBT Power Module

Collector-Emitter Withstand Voltage: 1200V

Rated Continuous Current: 150A

Chip Technology: TRENCHSTOP IGBT4 Fourth Generation Trench Gate Technology

Built-in Components: EmCon4 Fast Recovery Diode + NTC Temperature Sensor

Package: EconoPACK3 Standard Package

Maximum Operating Junction Temperature: 150℃

Mounting Method: Screw Mounting, Standard Pin Adapter for Universal Inverter Driver Boards

Product Performance Characteristics: Low saturation voltage drop, low switching loss, low heat generation, and high energy efficiency; Internally integrated with six IGBTs and freewheeling diodes, high integration, simplifying inverter circuit design; Built-in temperature detection for real-time temperature control protection against overheating damage; Surge resistant and voltage surge resistant, suitable for elevators with frequent start-stop operations; Excellent insulation performance and fast heat dissipation base, resulting in excellent heat dissipation when paired with a radiator; Industrial-grade quality, strong stability, and long lifespan, suitable for long-term continuous operation.
