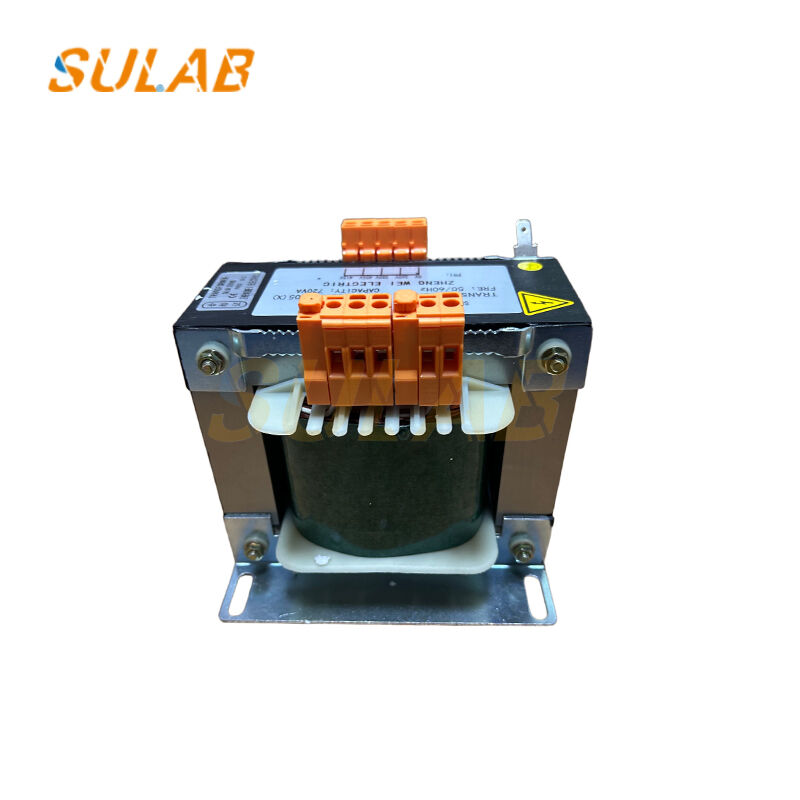

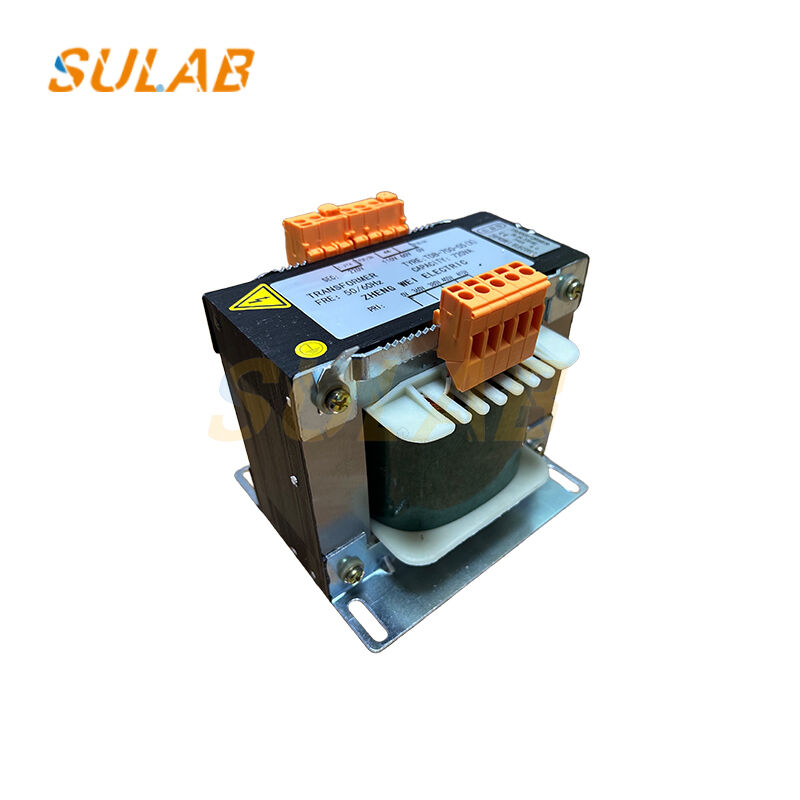

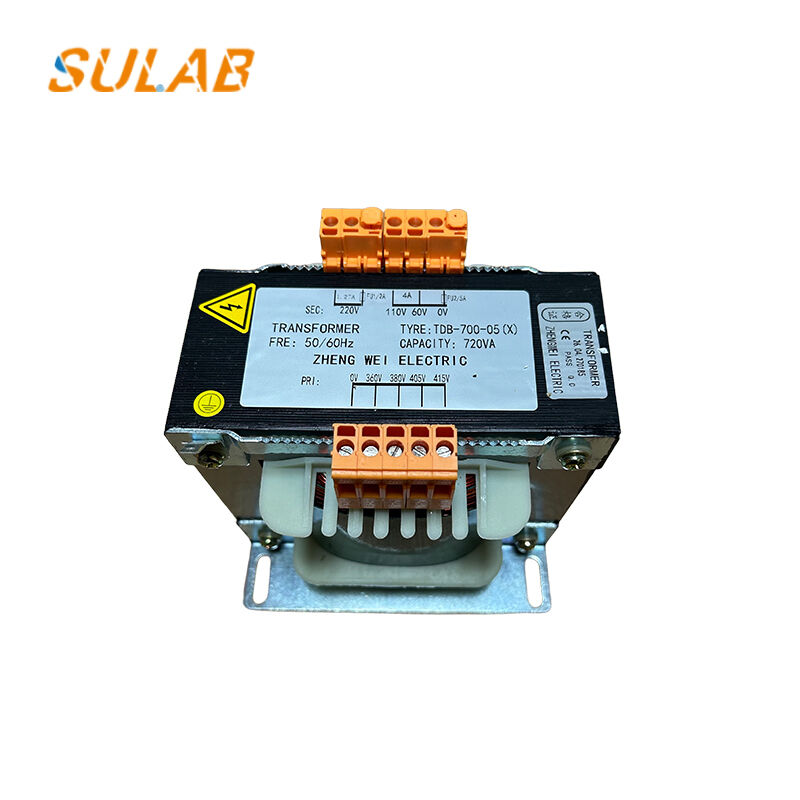

TDB-700-05 (X) 700VA Elevator Isolation Transformer with Voltage Conversion and Electrical Isolation for Elevator Cabinet Power Supply

TDB-700-05 (X) Elevator Isolation Transformer Elevator Cabinet Power Supply Transformer Power Transformer 700VA

The voltage conversion and stabilization function converts the high-voltage AC mains power into multiple low-voltage AC power sources required by the elevator, providing a stable power supply to the main board, PLC, door controllers, contactors, floor call buttons, car lighting, and other equipment, preventing voltage fluctuations from damaging electrical components.

The electrical isolation and interference suppression function isolates the elevator from grid noise and harmonic interference, protecting the stability of the elevator's main control system signals and reducing malfunctions such as elevator misalignment, system crashes, and unexplained stops.

The complete safety power distribution unit provides independent power to the elevator safety circuit, door lock circuit, and brake circuit, ensuring the normal operation of elevator door opening and closing, brake release, and leveling/stopping logic. It is a core power supply component of the elevator control cabinet.

Durable, adaptable, and easily replaceable industrial-grade pure copper coils with high insulation levels, high temperature and overload resistance, and no overheating during long-term continuous operation; standard installation dimensions allow direct replacement of old or damaged TDB-700-05 (X) units, requiring no modification and ready to use immediately. It is compatible with various passenger and freight elevator control cabinets.
