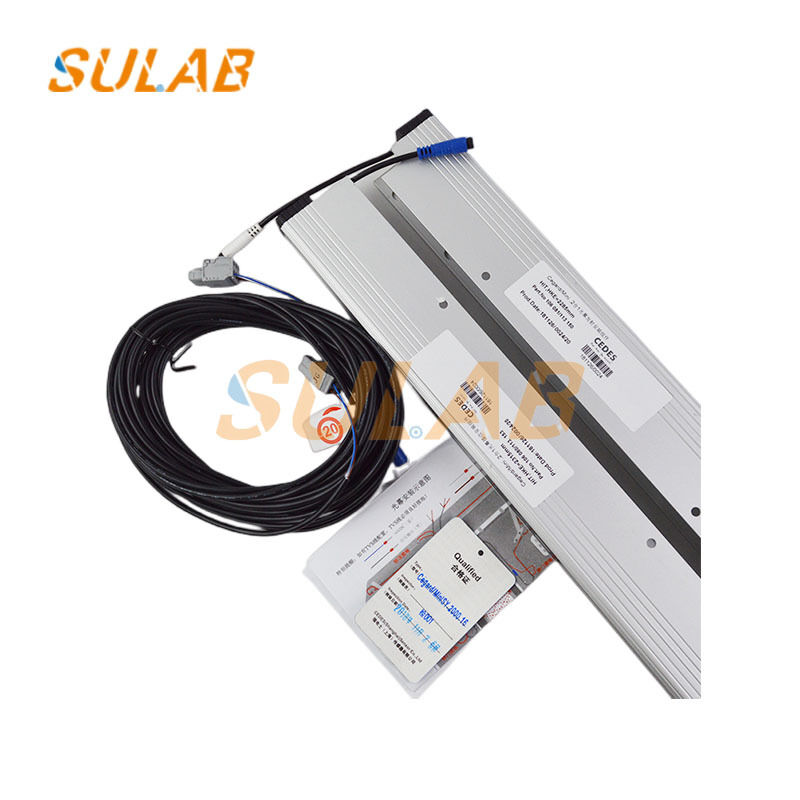

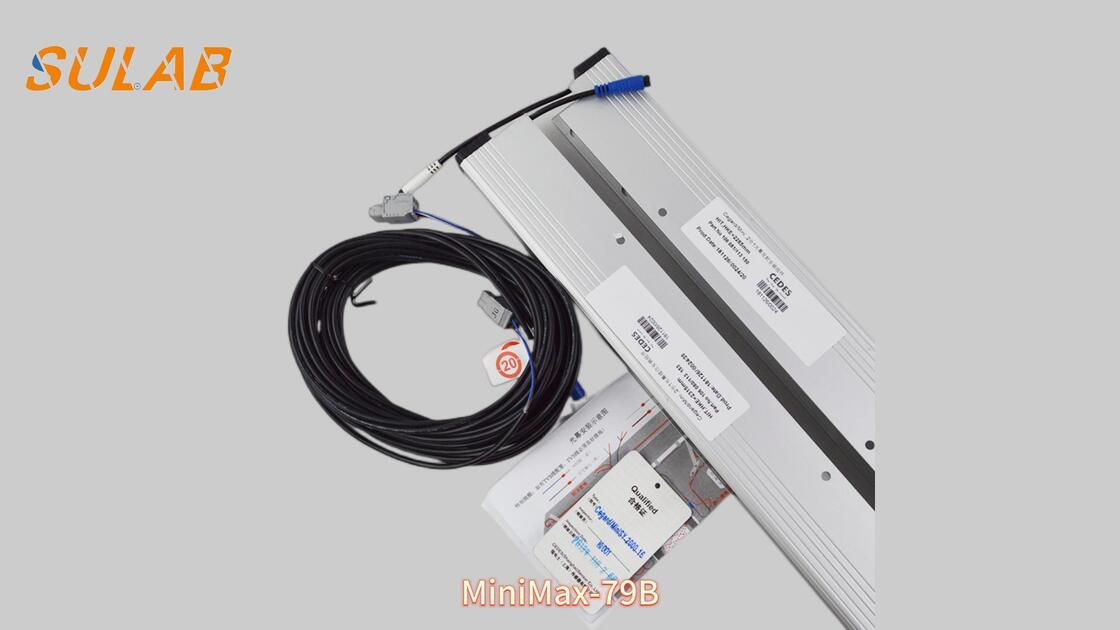

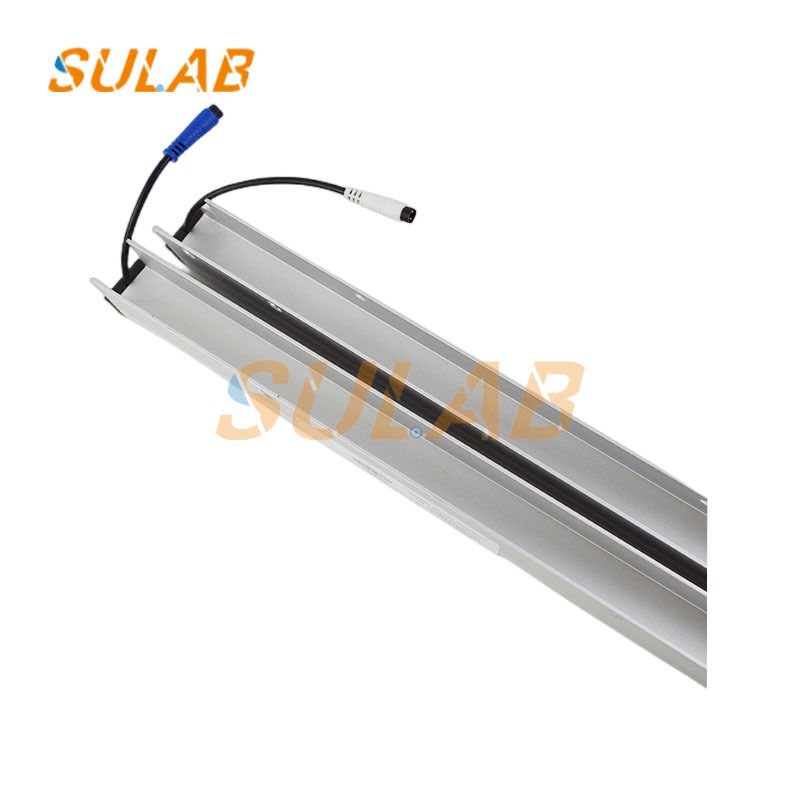

CEDES 79-Beam Elevator Door Safety Light Curtain Infrared Obstacle Sensing IP65 Sensors Spare Part MiniMax-79B
-
BrandCEDES
-
DescriptionElevator Parts
-
ModelMiniMax-79B
-
MOQ1PC
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
ApplicableElevator
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Paypal Etc
-
Brand NameCEDES
-
Model NumberMiniMax-79B
-
Minimum Order Quantity1PC
-
Packaging DetailsCarton, Wooden case, Pallet etc
-
Delivery TimeNormally 2-3 working days after payment
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
CEDES 79-Beam Elevator Door Safety Light Curtain Infrared Obstacle Sensing IP65 Sensors Spare Part MiniMax-79B
CEDES 79-Beam Elevator Door Safety Light Curtain Infrared Obstacle Sensing IP65 Sensors Spare Part MiniMax-79B
- The MiniMax-79B is an original elevator door safety light curtain manufactured by CEDES, equipped with 79 high-density infrared beams with a 1800mm detection height, capable of accurately detecting objects as small as 5mm to fully cover the door opening without blind spotsmedia.cedes.com.
- It supports a wide input voltage range of 10-30VDC with a universal push-pull output (PNP/NPN), and the output logic can be switched between normally open and normally closed via the select terminal, adapting to various elevator control system interfaces.
- Constructed with high-strength polycarbonate housing and IP65 protection grade, it features excellent dustproof and splash-proof performance, maintaining stable operation in a temperature range from -20°C to +60°C in complex elevator hoistway environments.
Brand SULAB Description Elevator parts Model MiniMax-79B MOQ 1PC Transportion TNT, UPS, DHL, Fedex, Air, Sea Applicable Elevator Packages Carton, Wooden case, Pallet etc Delivery Time Normally 2-3 working days after payment Warranty One year Payment Method Company Bank, Western union, Paypal etc - With integrated control electronics and a built-in self-calibration system, it requires no external power supply box, effectively extending the service life of infrared LEDs and reducing the cost of additional accessories and on-site maintenance.
- It complies with EN 81 elevator safety standards and CE/CSA certification, with strong anti-electromagnetic interference capability to ensure reliable signal transmission even under frequent current fluctuations in elevator electrical systems.
- It features a universal mounting design compatible with most mainstream elevator brands, with pre-wired connectors for plug-and-play installation, and each unit undergoes strict aging testing before delivery with reliable quality and long service life.
