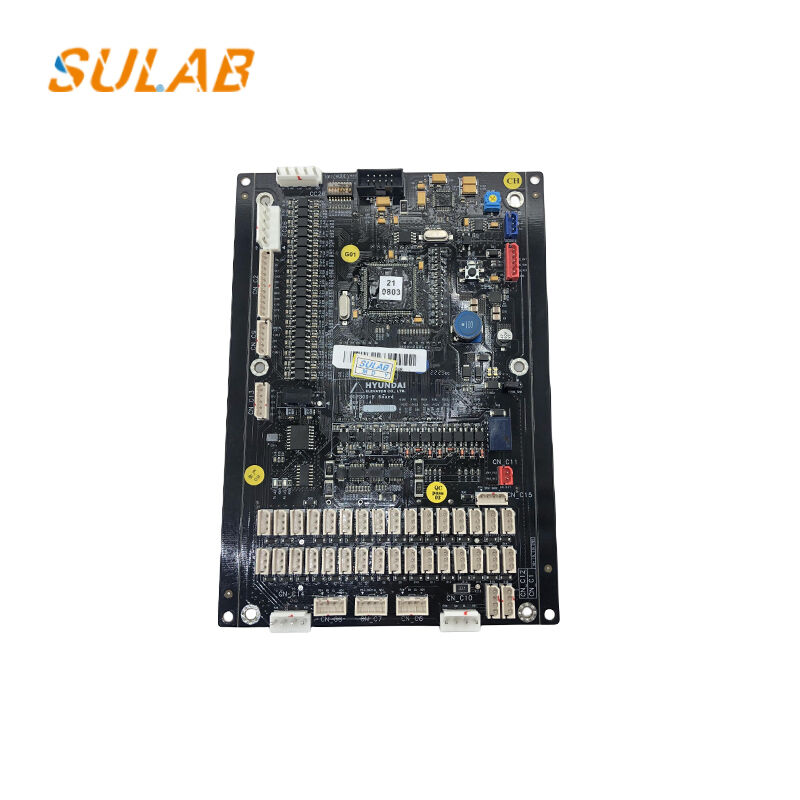

Shanghai Hyundai Elevator COP-30D Car Operating Panel / Internal Call Communication Board (Part No. 20400507) – STVF9 System

COP-30D (Part No. 20400507 / CC-907, variant COP30D-N) is an integrated car call and display communication board exclusively designed for Hyundai STVF9 elevator systems. This board combines floor button signal collection, dot-matrix floor display, and car bus communication functionality in a single unit.

• Installed inside car operating panel for seamless integration
• Transmits car call commands, current floor position, and running direction
• Communicates full-load, out-of-service, and auto-mode signals to main control cabinet
• Built-in voice announcement interface for enhanced functionality
• Constructed with industrial FR-4 blue PCB for durability
• Multiple plug terminals for button matrix, hoistway bus, door and alarm circuits
• Built-in voltage regulator for vibration and EMI resistance
• Versions Rev1.4 and Rev1.6 are fully interchangeable for plug-and-play replacement

This board effectively resolves typical elevator faults including unresponsive car buttons, blank floor display issues, and communication loss between car operating panel and main control system.
