Hyundai Elevator PCB Board with Industrial FR-4 Flame-Retardant Substrate Multi-Stage Surge Suppression and Plug-and-Play Replacement Traction Motor Control Card

LM BD Elevator Inverter Main Drive PCB Board REV1.0 LM-WJ18C0002 Traction Motor Control Card Hyundai Passenger Lift Replacement Spare Parts

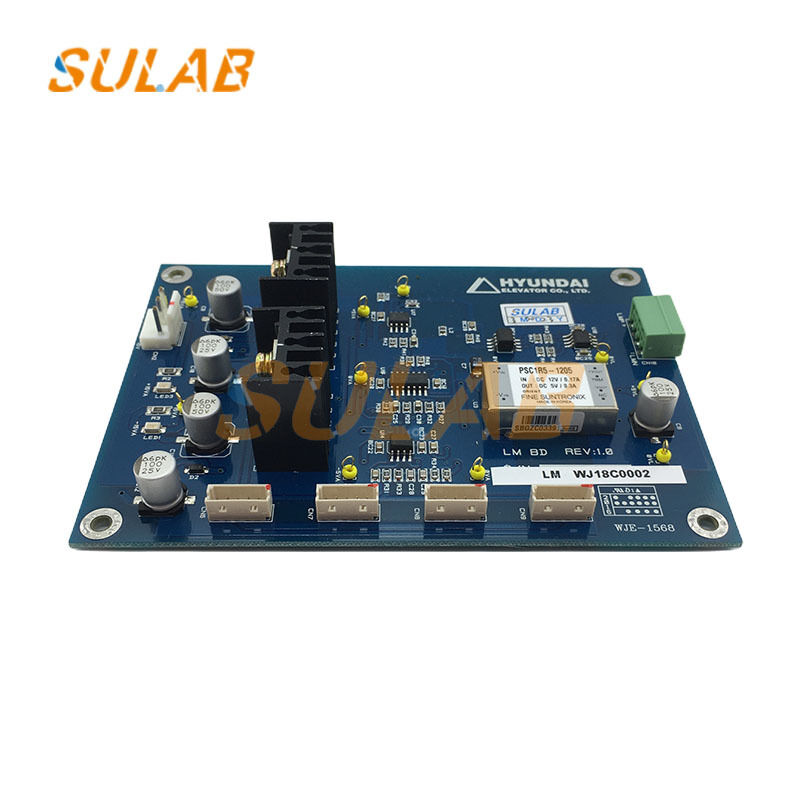

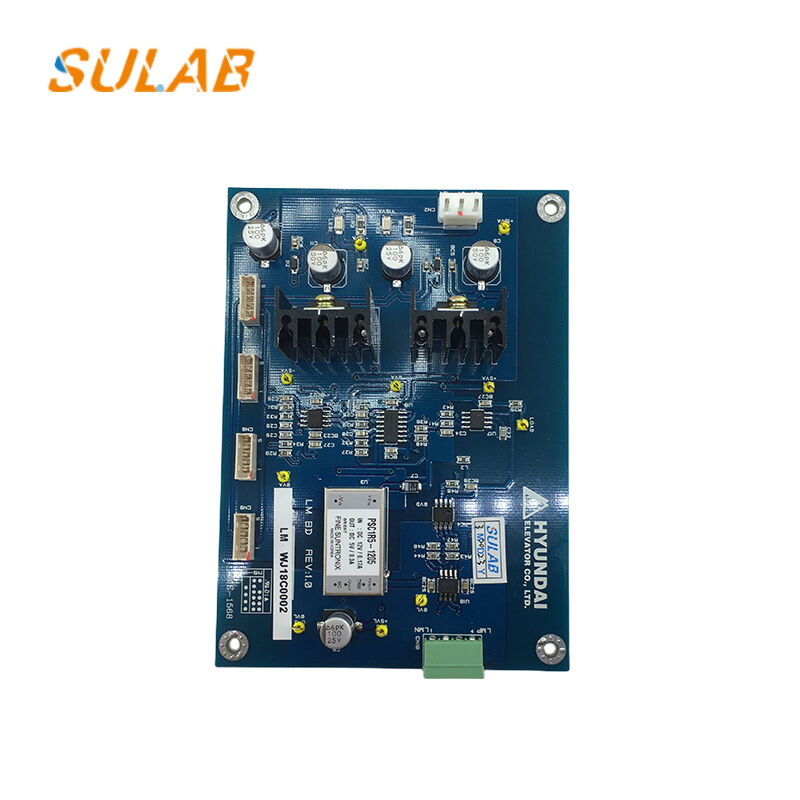

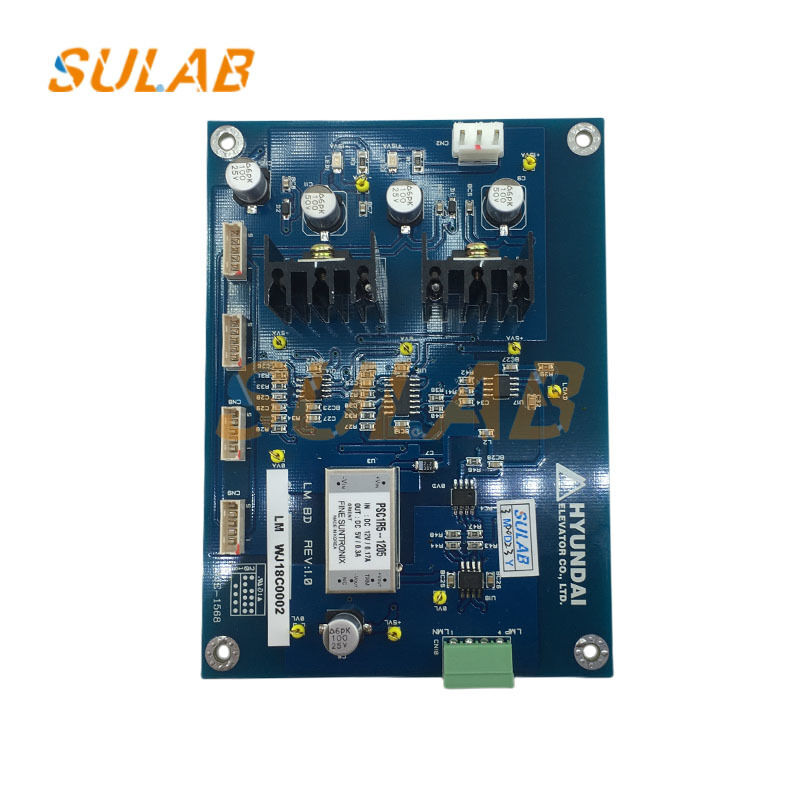

LM BD (LM-WJ18C0002) is the original drive control PCB for Hyundai elevator frequency converter unit. It adopts industrial FR-4 flame-retardant substrate and high-performance microprocessor, equipped with complete drive signal processing circuit, multi-stage surge suppression and anti-electromagnetic interference components. As the core control card inside Hyundai elevator inverter, it receives operation instructions from main control board and outputs precise PWM signals to drive power modules. Standard interface definition and mounting hole layout support direct plug-and-play replacement, perfectly matching corresponding Hyundai elevator traction drive systems.

Core Functions
Traction Motor Drive Signal Calculation & Output
Receive running commands from elevator main control board, calculate PWM modulation signals and send to power modules, precisely adjust traction motor speed, torque and rotation direction.
Real-Time Drive Status Monitoring
Collect feedback signals of output current, voltage and motor encoder; continuously monitor inverter working state during elevator operation.
Multi-Layer Safety Protection Execution
Trigger protection action immediately when detecting overvoltage, overload, short-circuit or overheating, cut drive output to prevent traction machine and inverter hardware damage.
Data Communication Between Inverter & Mainboard
Transmit motor speed, load, temperature and fault information to elevator main controller, receive speed curve and operation logic instructions bidirectionally.
Fault Signal Storage & Diagnosis
Automatically record operation abnormal codes for maintenance technicians to rapidly locate drive system faults, improve maintenance efficiency.
