Elevator Main Unit Motor Montanaly Traction Machine MCK200 300 500 Series Full Series Custom-made Original Factory Direct Supply
-
Highlight
Elevator traction machine motor
,MCK series elevator motor
,Custom-made elevator main unit
-
BrandSulab
-
DescriptionElevator Motor
-
ModelMCK200
-
TransportionTNT, UPS, DHL, Fedex, Air, Sea
-
PackagesCarton, Wooden Case, Pallet Etc
-
Delivery TimeNormally 2-3 Working Days After Payment
-
WarrantyOne Year
-
Payment MethodCompany Bank, Western Union, Paypal Etc
-
Brand NameSULAB
-
Model NumberMCK200
-
Minimum Order Quantity1
-
Delivery Time2-3 working days
-
Payment TermsD/P,T/T
Elevator Main Unit Motor Montanaly Traction Machine MCK200 300 500 Series Full Series Custom-made Original Factory Direct Supply
Elevator Main Unit Motor Montanaly Traction Machine MCK200 300 500 Series

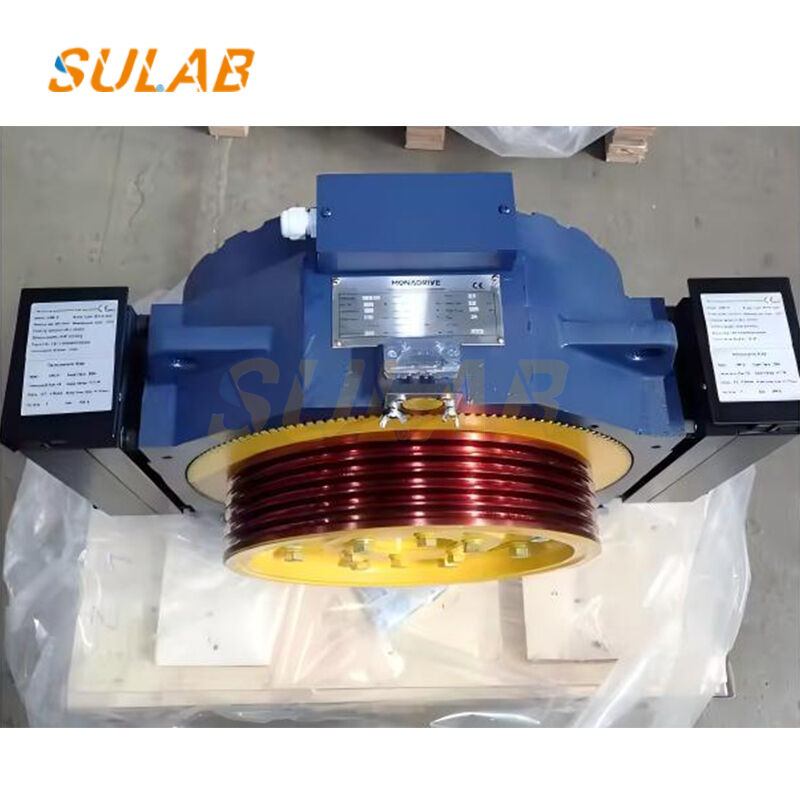

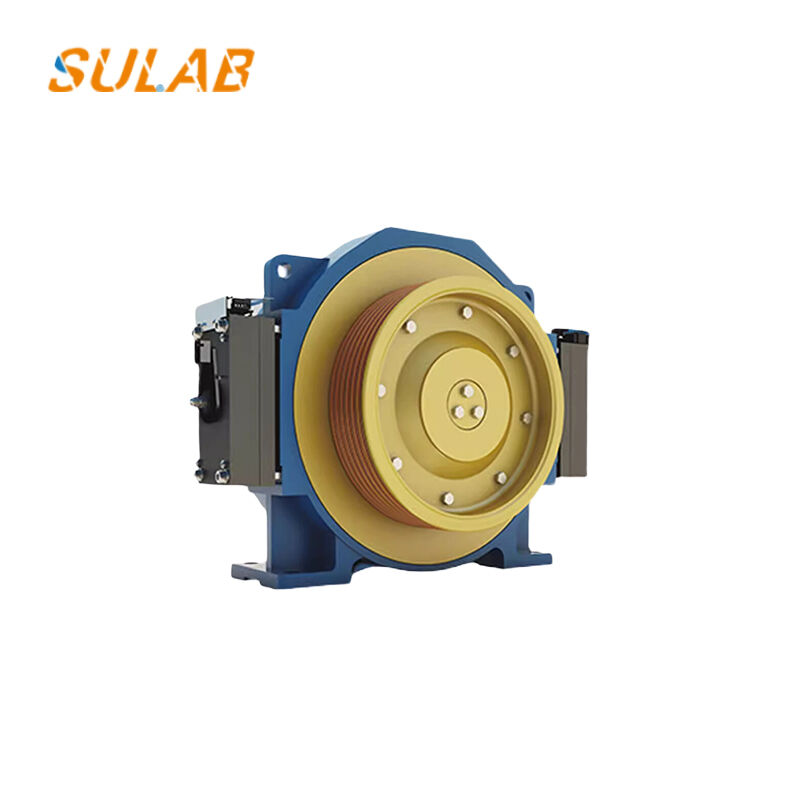

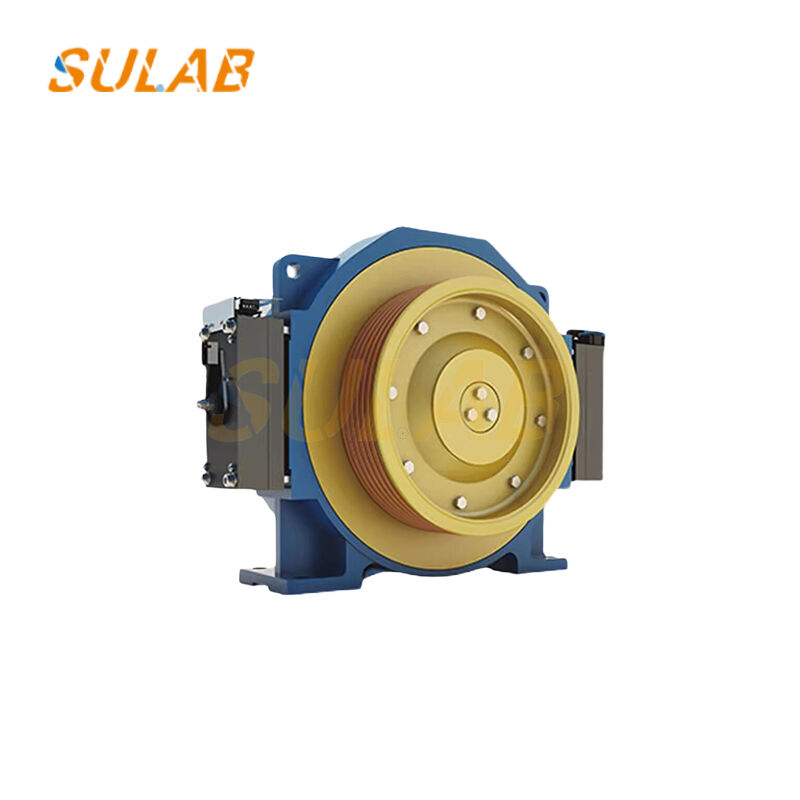

Full series custom-made original factory direct supply. The Monadrive MCK200 is a permanent-magnet synchronous gearless traction machine manufactured by Monadrive, designed for passenger elevators in residential buildings, shopping malls, and hospitals.
Product Specifications
| Brand | Sulab |
|---|---|
| Description | Elevator motor |
| Model | MCK200 |
| MOQ | 1PC |
| Transportation | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, Paypal etc |

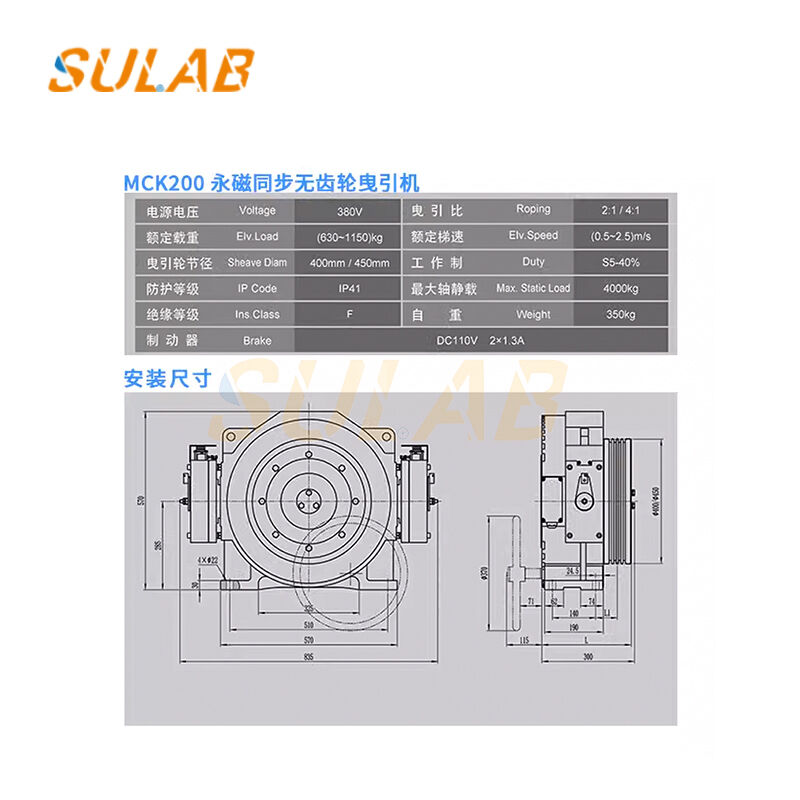

Technical Specifications
Supports both machine-room and machine-room-less installation. Rated load ranges from 630kg to 1150kg, speed from 0.5-2.5m/s, with 2:1 or 4:1 roping options, and traction sheave diameters of 400mm and 450mm. Features IP41 protection grade, F-class insulation and S5-40% duty cycle, allowing 240 starts per hour. Dual DC110V brakes deliver stable stopping performance, low noise and smooth riding experience.
Key Features & Benefits
- Compact mechanical layout for convenient on-site assembly and commissioning
- Maximum static axle load of 4000kg
- Ideal for new elevator manufacturing and modernization replacement projects
- Remarkable energy-saving performance compared to geared traction machines
- Standardized components simplify routine maintenance
- Readily available spare parts for heavy-duty continuous operation
- CE certified for global elevator projects
Application: Suitable for passenger elevators in residential buildings, shopping malls, and hospitals. Perfect for both new installations and modernization projects.
