Modules 7MBR100VN120-50 7MBR75VN120-50 75U4R120-50 FP100R12KT4

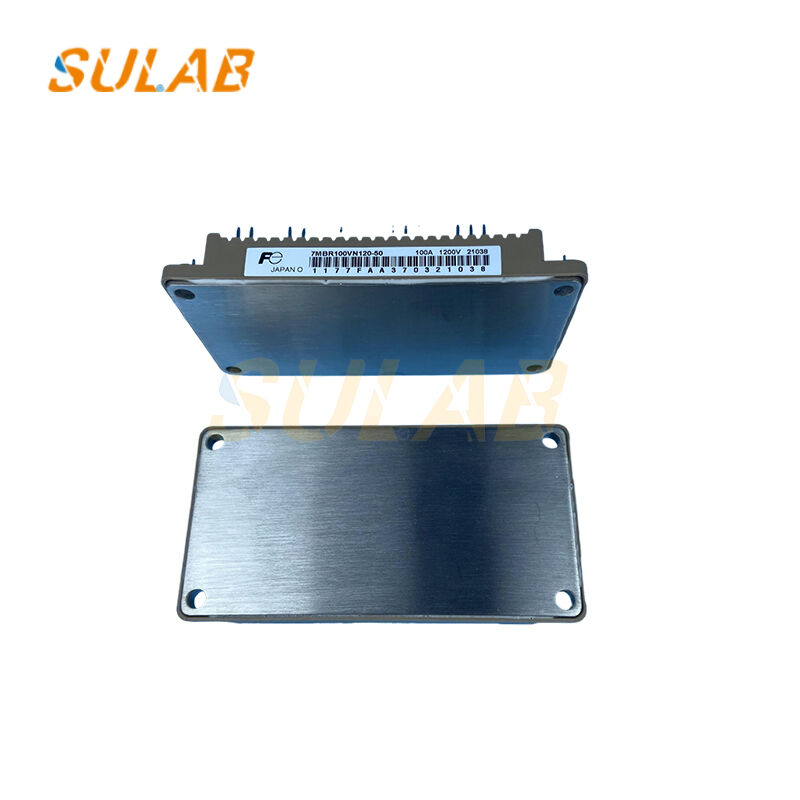

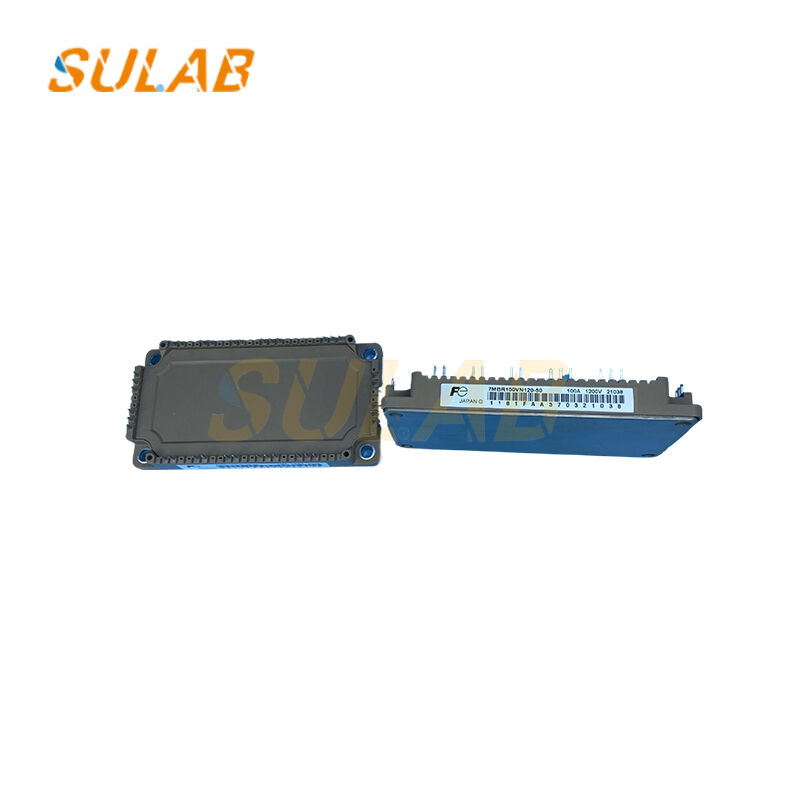

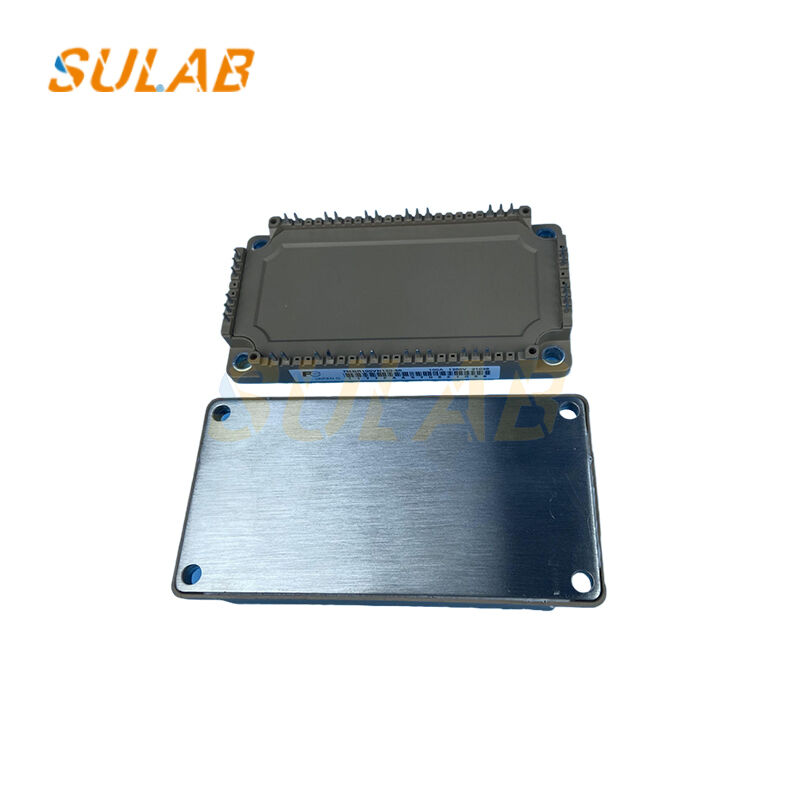

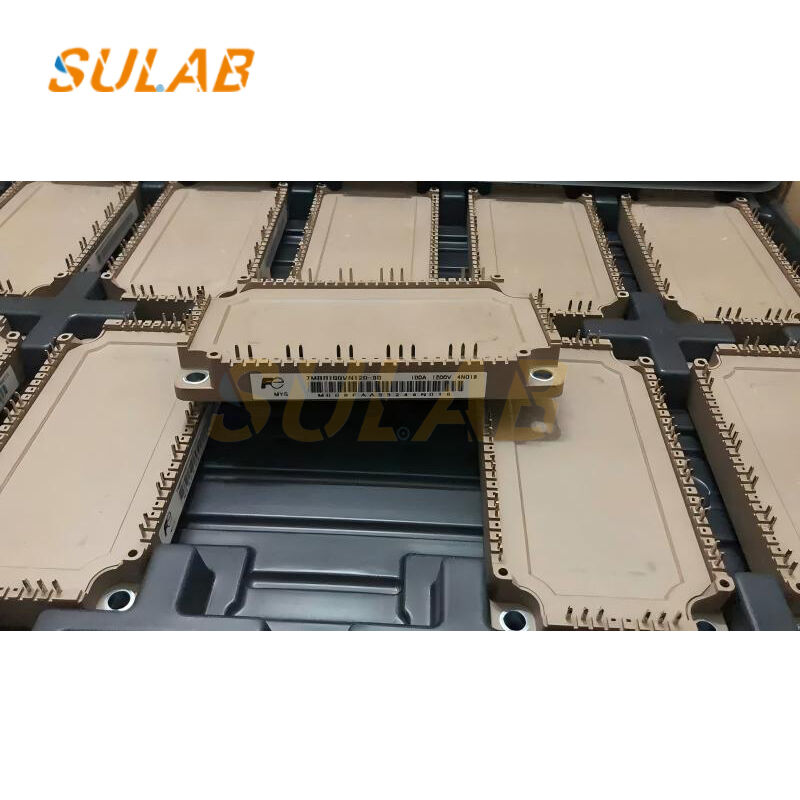

The 7MBR100VN120-50 is Fuji Electric's 6th-generation V-series PIM power integrated module rated at 1200V, 100A. This 7-in-one unit integrates a rectifier bridge, three-phase inverter, and braking circuit within the EconoPIM M720 package designed for PCB soldering mounting. It features low VCE(sat) to minimize power loss and is widely used in elevator inverters, industrial motor drives, and servo systems.

As a key vulnerable spare part for elevator control cabinet inverters, this module can be directly replaced during breakdowns, short-circuits, or over-current alarms. Its standard package facilitates easy heat dissipation without requiring significant modifications to peripheral circuits. Original and compatible replacements are readily available in the maintenance market, making them convenient for mass procurement in new elevator production and modernization repair work, effectively reducing equipment downtime.
