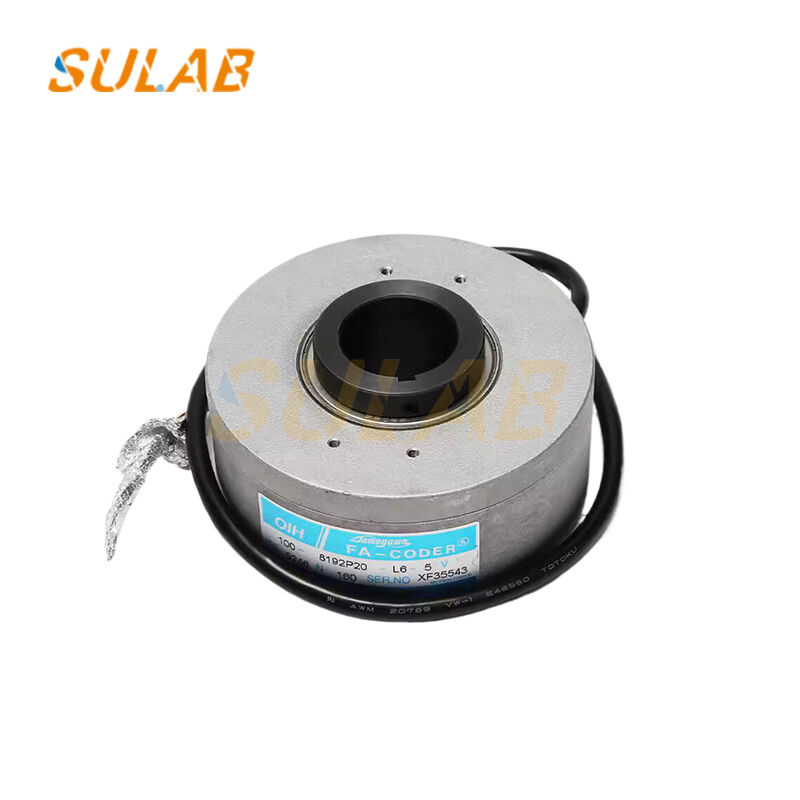

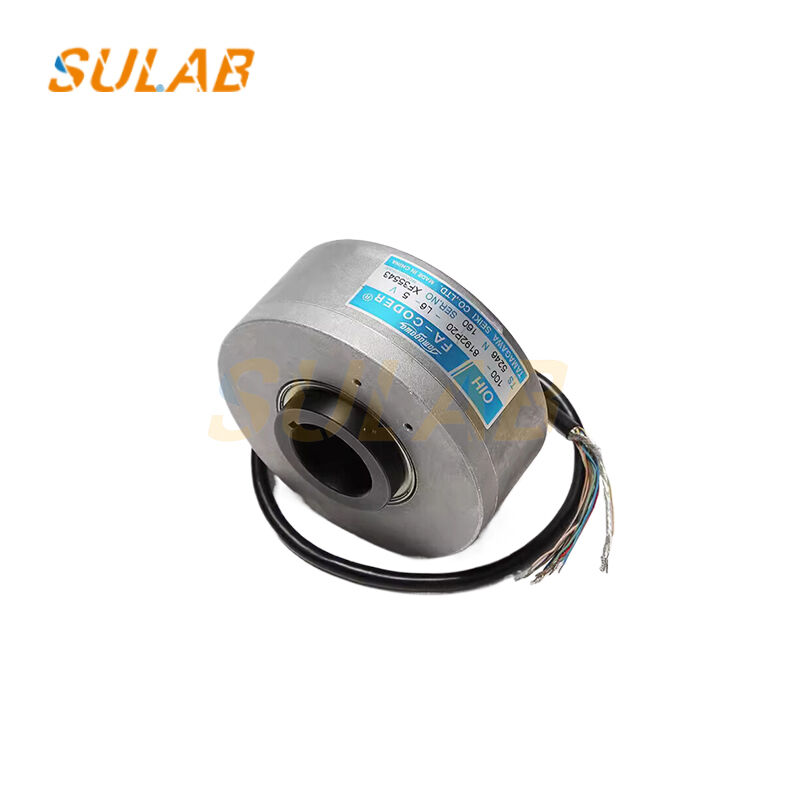

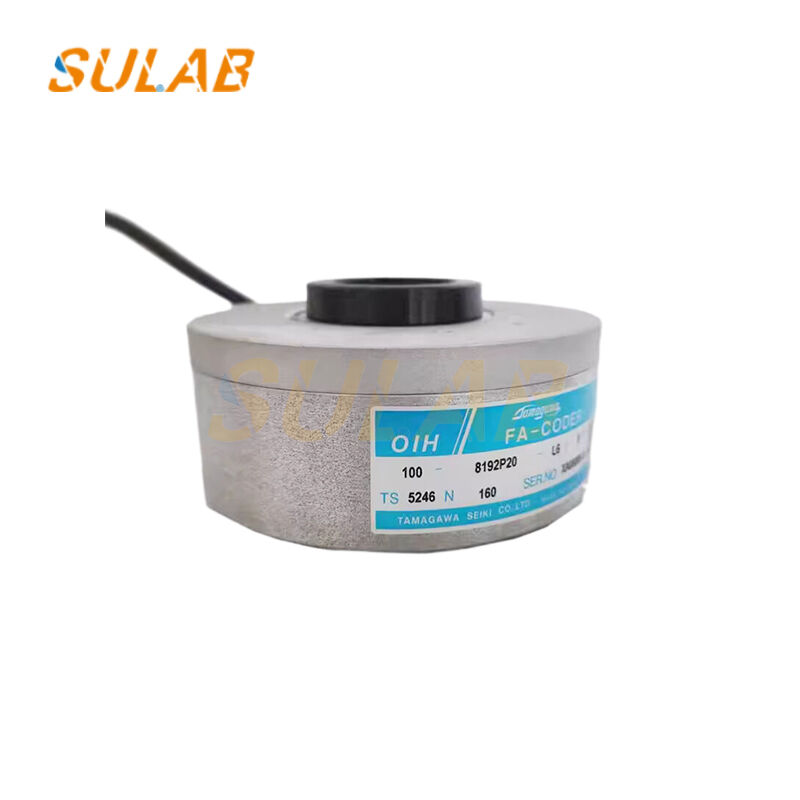

Tamagawa TS5246N160 Hollow Shaft Rotary Encoder with 8192 Pulses Per Revolution 5V Power Supply and Compact Hollow-Hole Structure for Elevator Speed Position Sensing

Tamagawa TS5246N160 OIH100‑8192P20‑L6‑5V Hollow Shaft Rotary Encoder, Elevator Traction Motor Speed Position Sensor, Replacement Elevator Spare Part for Lift Modernization & Repair Service

The Tamagawa TS5246N160 is an optical incremental hollow‑shaft rotary encoder, model OIH100‑8192P20‑L6‑5V, widely applied for elevator traction machines. It runs on 5V power supply with 8192 pulses per revolution, outputs A/B/Z and UVW phase signals via line‑driver mode, supporting stable signal transmission under elevator operation vibration. Featuring compact hollow‑hole structure, reliable anti‑interference performance and wide working temperature range, this encoder fits geared and gearless elevator motors perfectly. It is a direct replacement part for maintenance, breakdown replacement and elevator retrofit projects, delivering consistent precision for long‑term lift running.

Functions

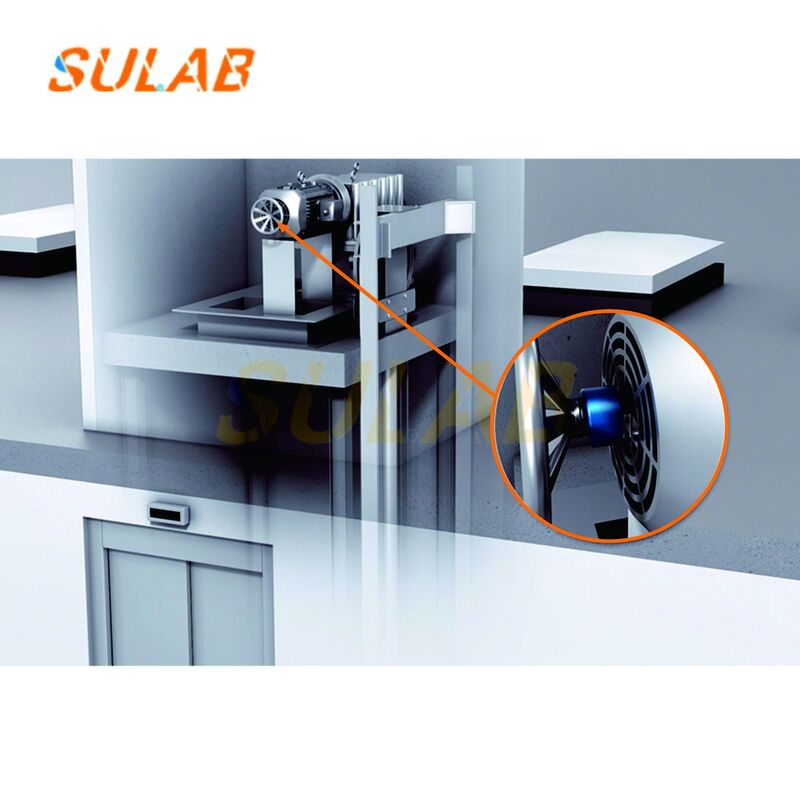

1. Detects real‑time rotating speed, rotation direction and shaft position of elevator traction motor, transmits digital pulse signals to elevator main controller.
2. Provides accurate position feedback for elevator car leveling, ensuring smooth start‑stop and precise floor‑arrival positioning performance.
3. Supplies UVW commutation signals for motor vector control, stabilizes elevator running comfort and avoids jitter during operation.
4. Monitors motor operating status, helps control system implement speed closed‑loop adjustment, safeguards elevator safety and stable operation.
