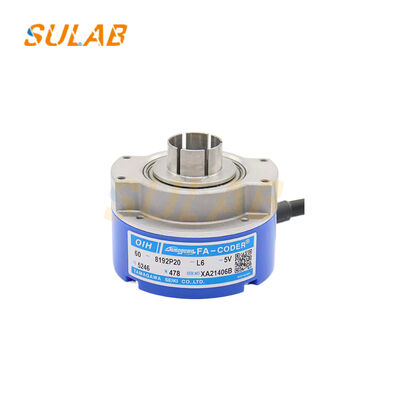

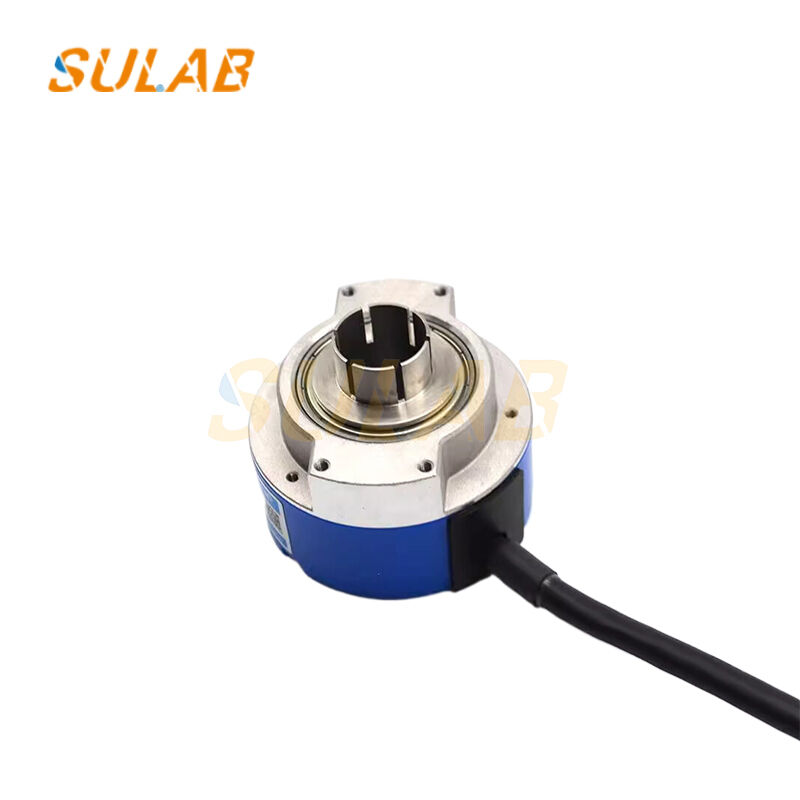

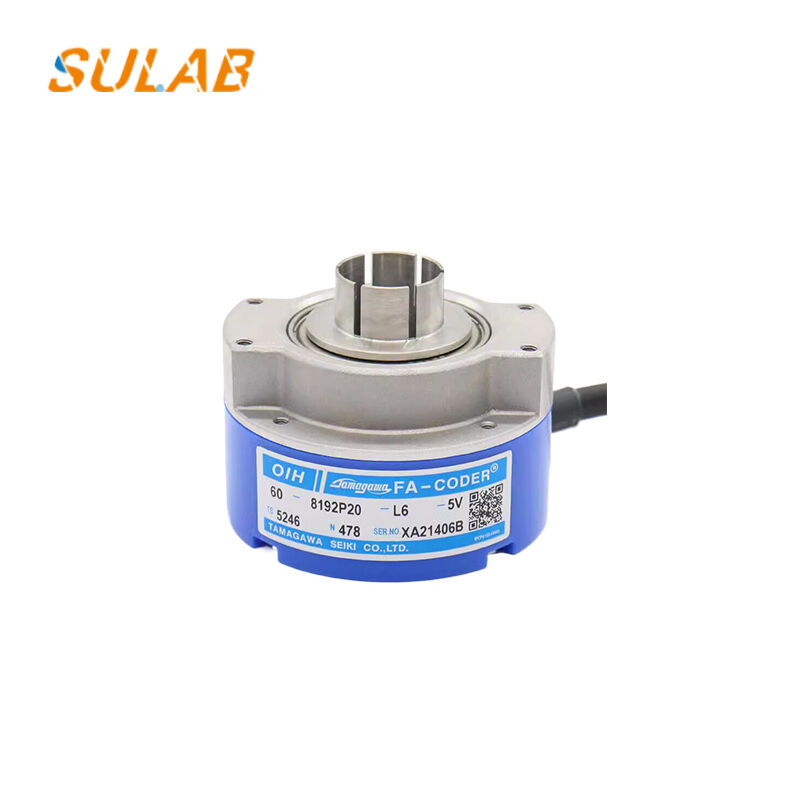

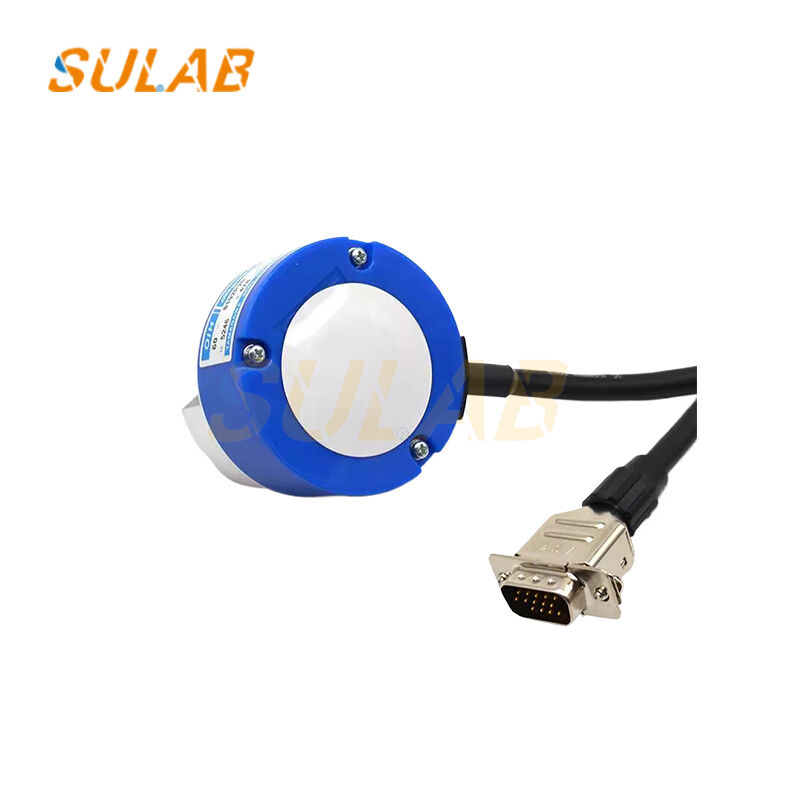

Tamagawa TS5246N478 Hollow Shaft Rotary Encoder with 8192 Pulses Anti-Vibration Structure for Elevator Traction Motor

Tamagawa TS5246N478 OIH60‑8192P20‑L6‑5V Hollow Shaft Rotary Encoder, Elevator Traction Motor Speed Position Sensor, Replacement Spare Part for Hitachi Elevator Repair & Modernization Projects

The Tamagawa TS5246N478, model OIH60‑8192P20‑L6‑5V, is a high‑performance optical hollow‑shaft incremental FA‑Coder widely used for Hitachi elevator traction machinesTAMAG.... Powered by DC 5V, it delivers 8192 pulses per revolution, outputting A/B/Z phase and UVW commutation signals via line‑driver output. Built with anti‑vibration and anti‑interference structure, it maintains stable signal output under harsh elevator operating environments. Compact hollow‑shaft design enables fast installation and replacement. It is a reliable spare component for elevator maintenance, fault replacement and lift modernization, ensuring long‑term accurate and steady elevator operation.

Functions

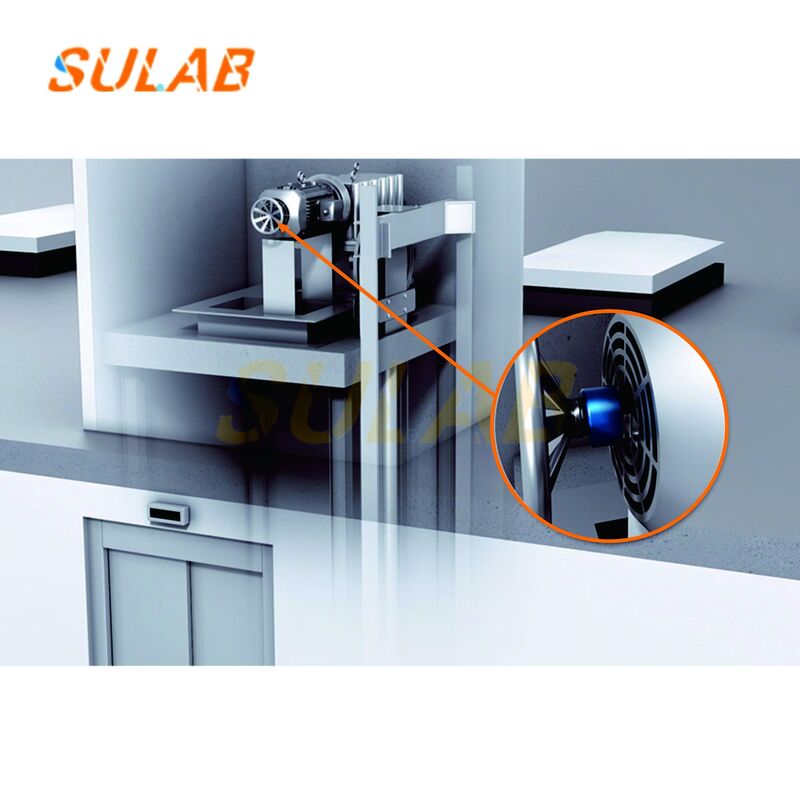

1. Real‑time detection of traction motor rotation speed, rotating direction and shaft position, sending digital pulse feedback signals to elevator main controller.
2. Provides precise position feedback for elevator car leveling, realizing accurate floor stopping and smooth start‑stop performance.
3. Offers UVW commutation signals for motor vector control, reducing running jitter and improving riding comfort.
4. Supports closed‑loop speed regulation of elevator control system, monitors motor running status and guarantees elevator safe and stable operation.
