Tamagawa TS5246N2436 Hollow Shaft Rotary Encoder with 8192 Pulses per Revolution and Vibration-Resistant Design for Elevator Traction Motors

Tamagawa TS5246N2436 Hollow Shaft Rotary Encoder, OIH100‑8192P20‑L6‑5V Elevator Traction Motor Encoder, Speed Position Feedback Sensor, Lift Replacement Spare Part for Elevator Repair & Retrofit

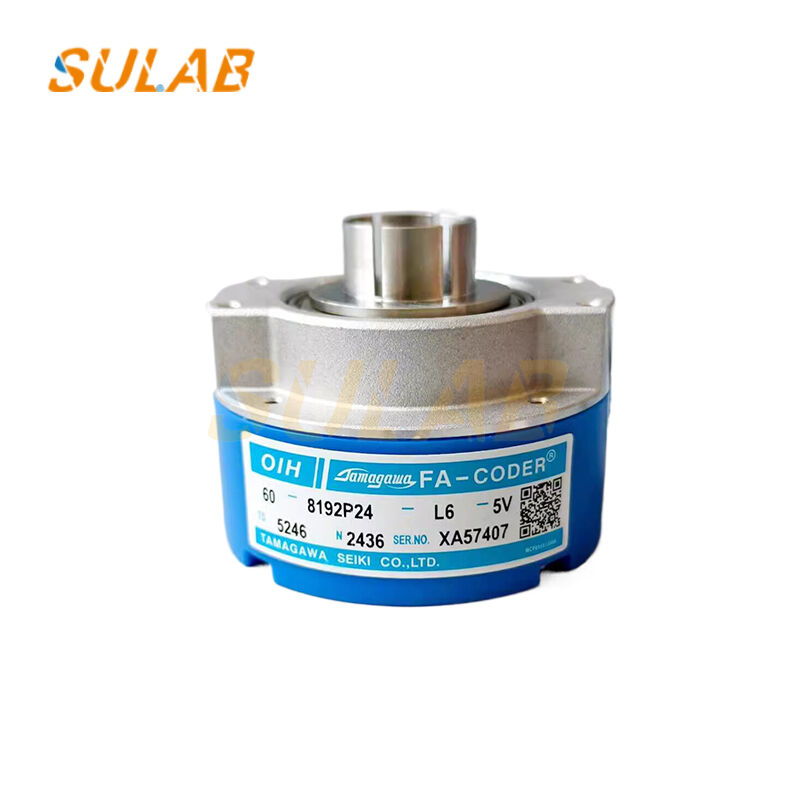

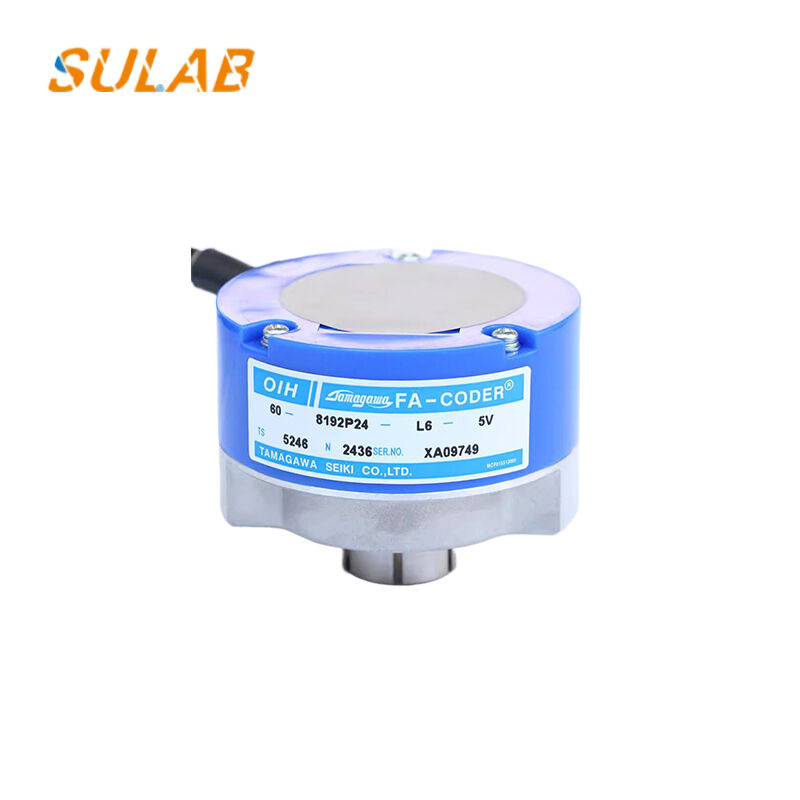

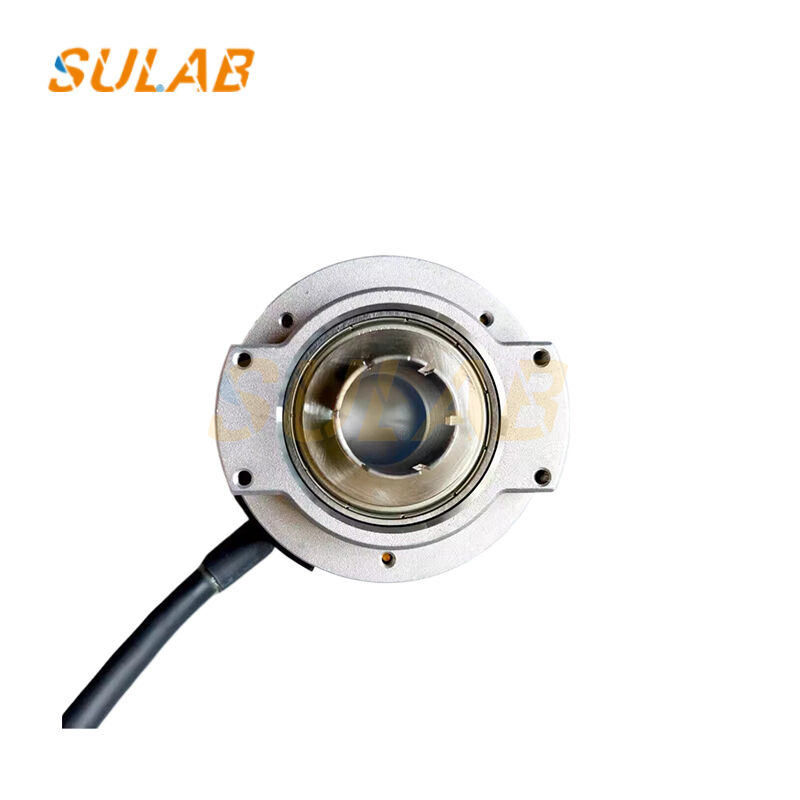

The Tamagawa TS5246N2436 is a high‑precision optical hollow‑shaft incremental encoder for elevator traction machines, model OIH100‑8192P20‑L6‑5V. Powered by DC 5V, it outputs 8192 pulses per revolution together with A/B/Z phase and UVW commutation signals through line‑driver output. Designed with excellent vibration‑resistance and anti‑interference capability, it maintains stable signal output under complex elevator operating conditions. Its hollow‑shaft structure allows quick mounting and swapping. Widely used for elevator maintenance, part replacement and modernization projects, it delivers reliable and accurate feedback to guarantee consistent elevator performance.

Functions

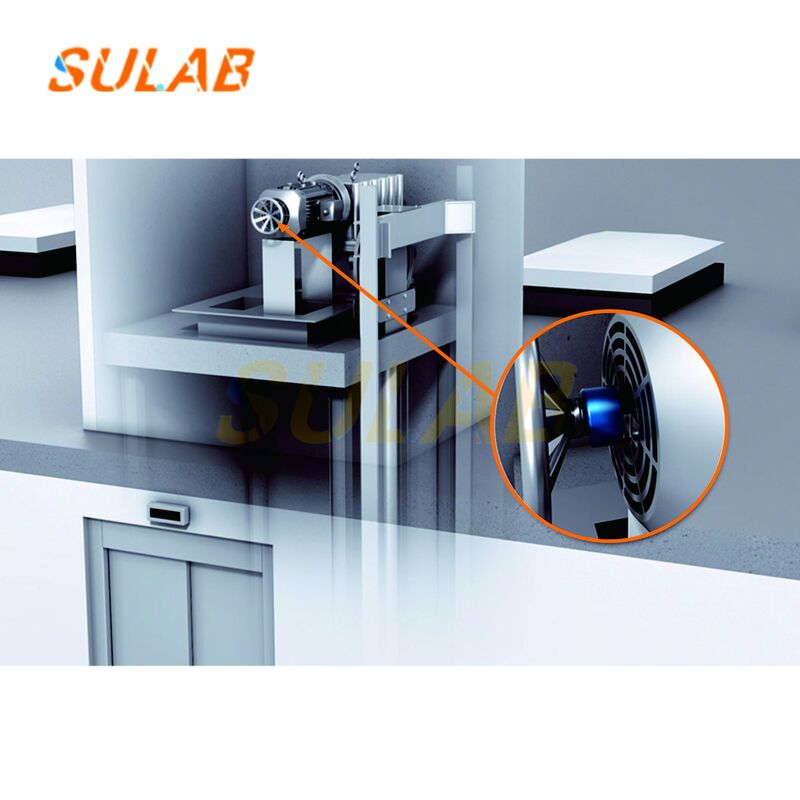

1. Captures real‑time rotation speed, direction and shaft position of the traction motor, and transmits pulse feedback signals to the elevator main controller.
2. Provides precise position feedback for car leveling, achieves accurate floor stopping and smooth acceleration & deceleration.
3. Supplies UVW commutation signals for motor vector control, reduces running vibration and improves passenger riding comfort.
4. Enables closed‑loop speed regulation for the control system, monitors motor working status and ensures safe and stable elevator operation.
