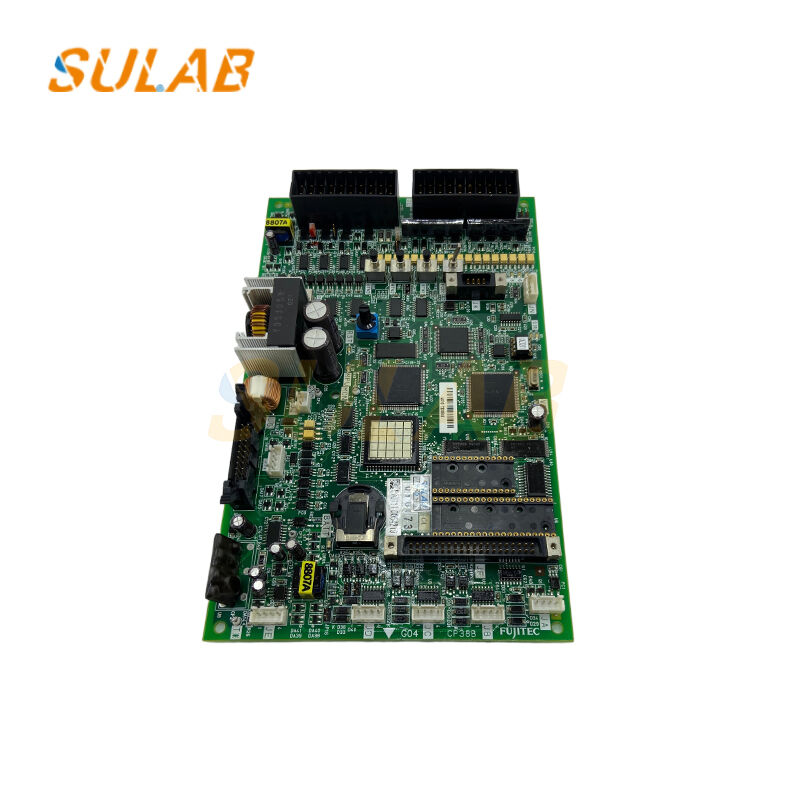

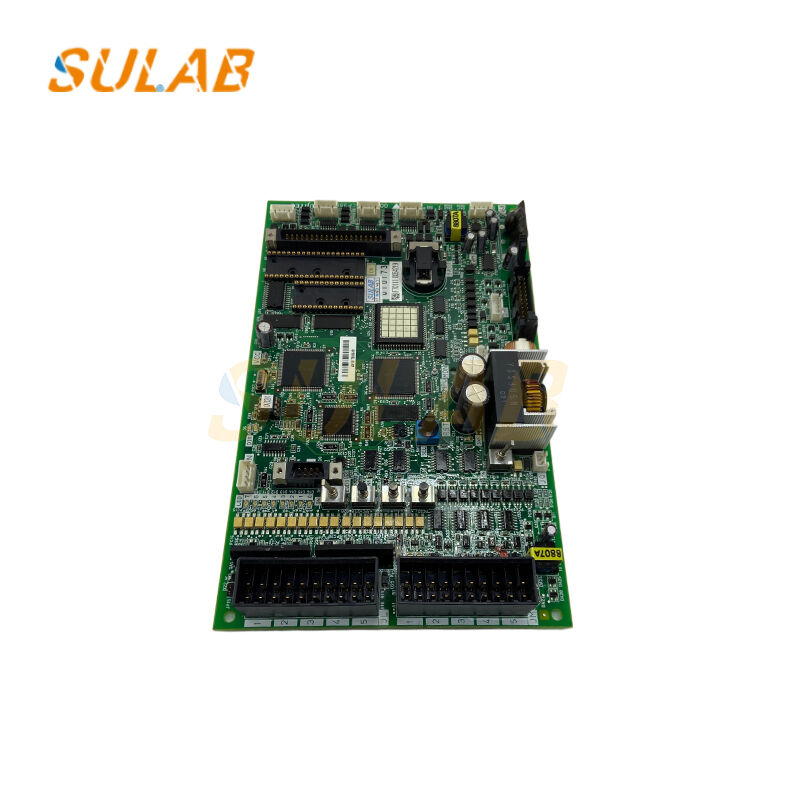

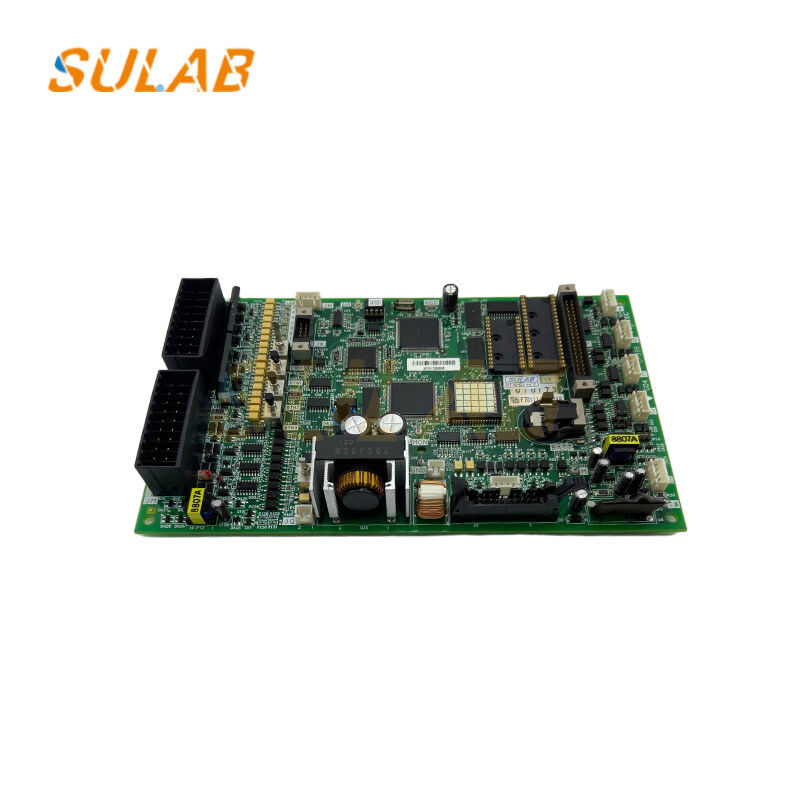

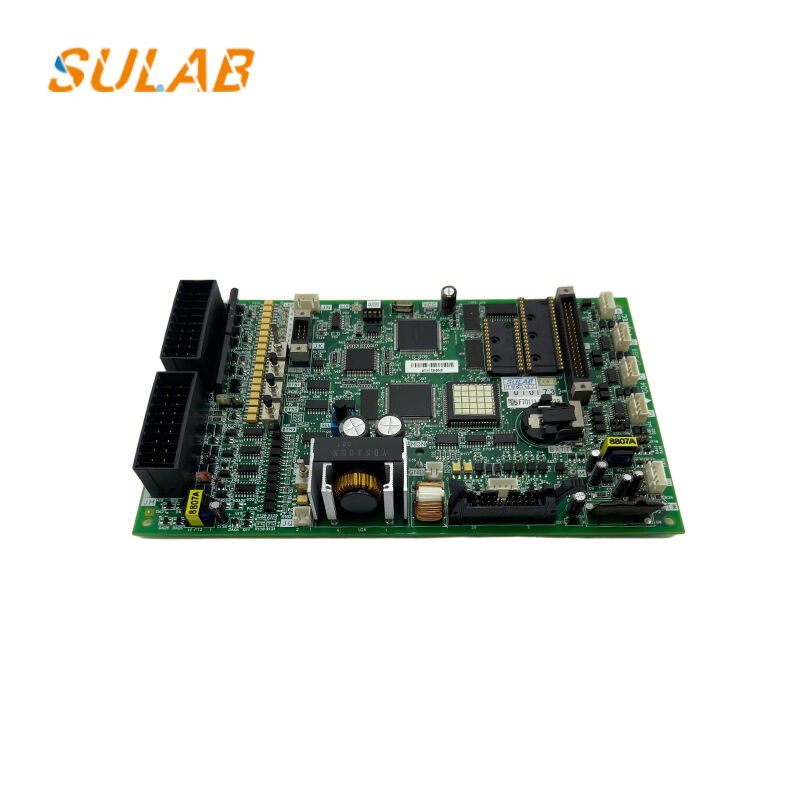

Fujitec CP38B Elevator Main Board with High-Grade Industrial Components and Multi-Layer Anti-Interference PCB Layout for Plug-and-Play Replacement

Fu**tec Elevator Main Board CP38B, Elevator Controller PCB Board For Fujitec Lift Control Cabinet

CP38B is the core main control PCB board for Fujitec CP38 series elevator control system. As the central logic processing unit installed inside elevator machine‑room control cabinet, it adopts high‑grade industrial electronic components, multi‑layer anti‑interference PCB layout, strong anti‑vibration and anti‑electromagnetic‑interference performance, adapting to long‑term continuous elevator operation environment. It connects with car top board, door controller, display panels and safety circuit through dedicated interfaces. It supports fault code recording, self‑diagnosis function and parameter adjustment. Exact match for original hardware structure and connectors, plug‑and‑play replacement, no extra hardware modification required. Ideal spare part for repairing malfunctioning Fujitec elevators caused by mainboard damage, logic failure, system crash and communication breakdown, widely used in elevator maintenance and renovation projects.

Functions

1. Acts as elevator central control core, processes landing calls, car calls, safety‑loop signals, executes elevator running logic, controls elevator ascending, descending, leveling and stop actions.
2. Communicates with car panel, hall indicators and door drive board, transmits floor data and operation instructions to realize complete elevator coordination control.
3. Continuously monitors safety circuit, limit switch and protection signals, triggers safety interlock to stop elevator once abnormal condition detected to guarantee passenger safety.
4. Built‑in fault memory and self‑diagnosis function, stores fault codes for technicians quick troubleshooting and parameter commissioning.
5. Solves mainboard‑caused faults: elevator no start‑up, random stop, communication error, unresponsive call registration, unstable running.

Rich Content (Working Environment, Installation Notes & Application Scope)

Working temperature:‑10℃ ~ +55℃; Relative humidity ≤90%, non‑condensing. Installed in indoor elevator machine‑room control cabinet. Keep away from corrosive gas, heavy dust, water splash and strong electromagnetic interference. Power supply must be fully cut off before disassembly and installation to prevent PCB chip burnout. All connectors should be fastened tightly to avoid poor contact. Professional elevator technicians are required for parameter checking and debugging after replacement. Suitable for Fujitec passenger elevators equipped with CP38 series control system, widely applied in residential buildings, office buildings and commercial complexes. Regular cabinet dust cleaning helps extend mainboard service life. It can replace damaged original CP38B board for elevator repair and modernization jobs.
