Elevator Car Communication Board CAN Bus Control Panel with Diagnostic & Debugging Function for Real-time Communication and Centralized Control

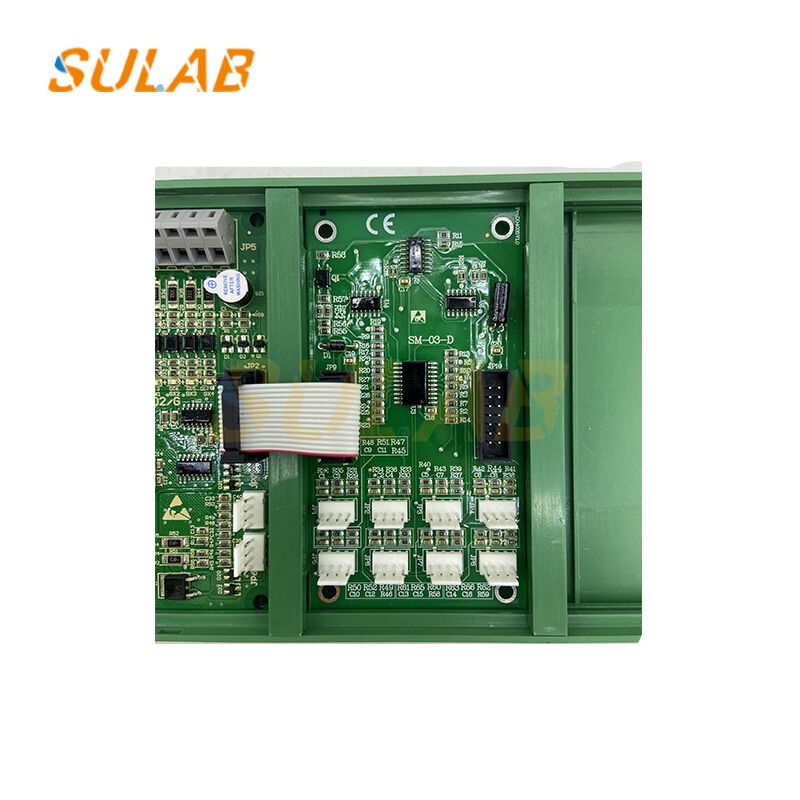

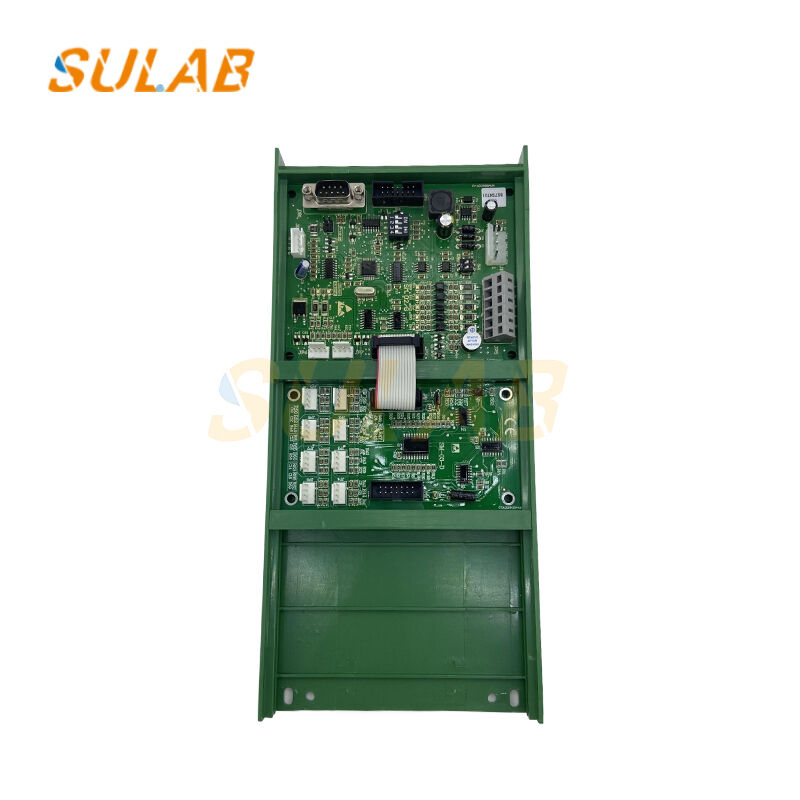

Elevator Car Communication Board CAN Bus Control Panel Interface Car Controller Board for STEP Elevator with Diagnostic & Debugging Function SM.02G  SM-03-D

CAN Bus Communication Hub: Interacts in real-time with the control cabinet mainboard, car top panel, and external call panel via the CAN bus, transmitting key data such as floor selection commands, door opening/closing signals, car position, and fault codes, ensuring accurate synchronization of commands and status.

Centralized Control of Car Equipment: Drives and monitors floor selection buttons, door opening/closing buttons, floor displays, voice announcement system, emergency lighting, fans, and other equipment within the car, providing unified management of power supply and signals, simplifying wiring and maintenance.

Status Monitoring and Fault Diagnosis: Collects real-time data on car door status, door lock signals, and communication link integrity, possessing self-testing and fault feedback capabilities, facilitating rapid location of problems such as communication interruptions, button malfunctions, and display anomalies.

Debugging and Expansion Adaptation: Supports handheld operator access (DB1 interface), allowing direct parameter debugging from the car side; compatible with various car configurations (main/auxiliary/rear/disabled driver control box), adapting to different elevator type requirements.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
