KN Kone Elevator PCB Board Dot Matrix Display PCB Board F2KHDM KM806880G02

There are also some small circuit boards in the control cabinet, they are the power circuit boards 713140G01 to 713140G08, which are equivalent to the switching power supply of other elevators, and the safety circuit circuit boards 713120G01 and G02, especially the safety circuit circuit with the function of opening the door in advance. The serial number of the board is 713160G01, this board is equipped with 4 ABB brand relays, these relays are relatively easy to damage. The function of the relay is to use its contacts to short-circuit the door lock when approaching the door zone. If the contacts are damaged, the function of opening the door ahead of time will fail, and a fault may be reported.

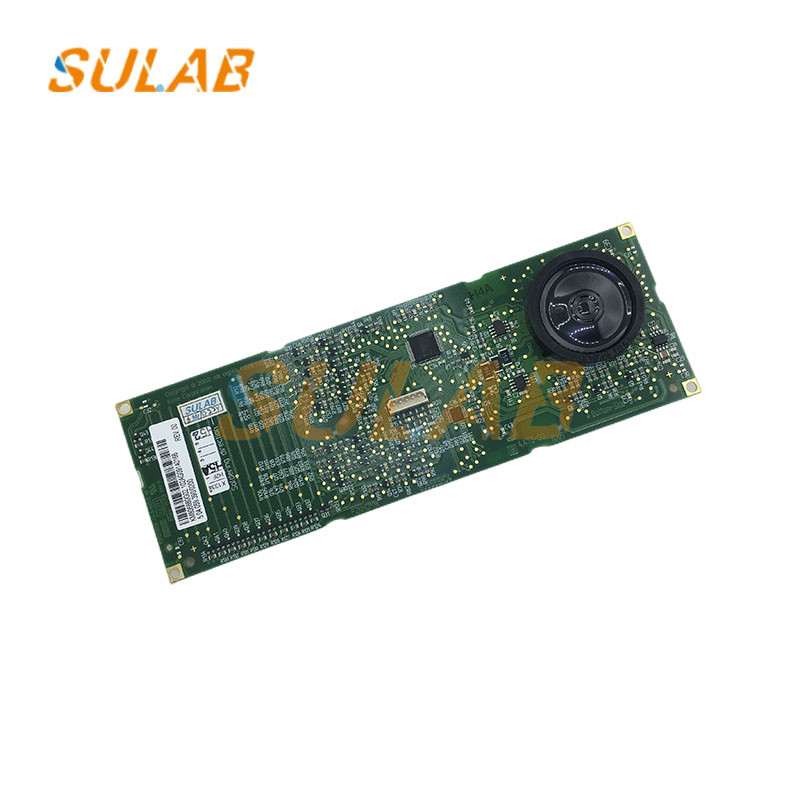

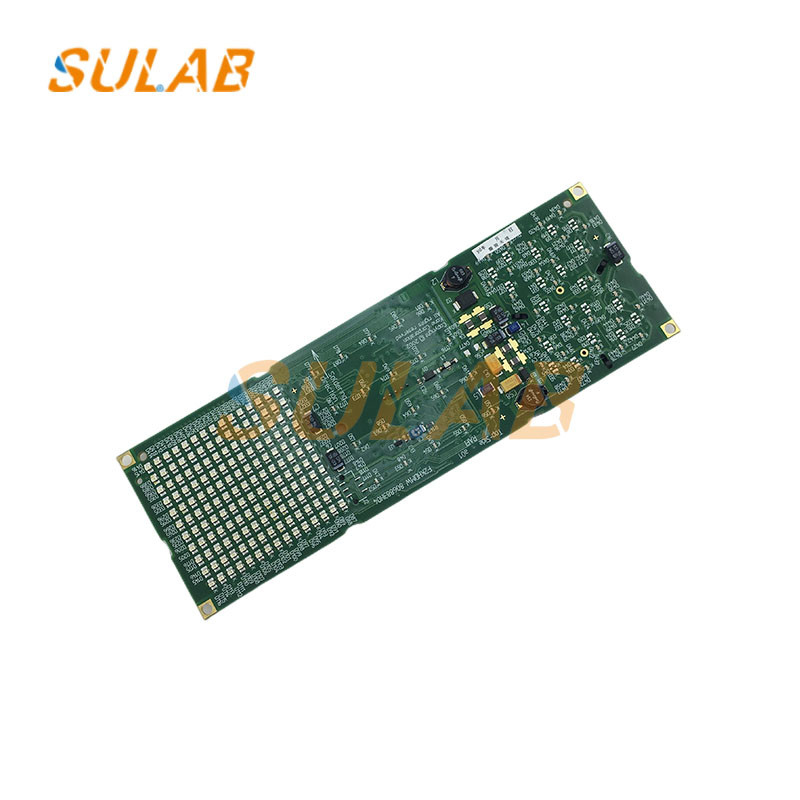

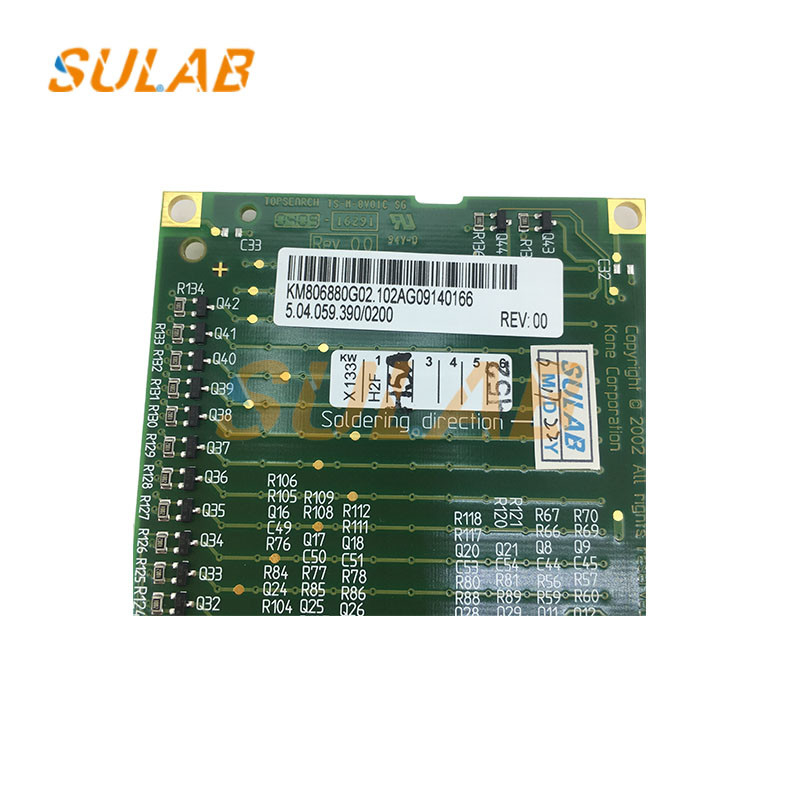

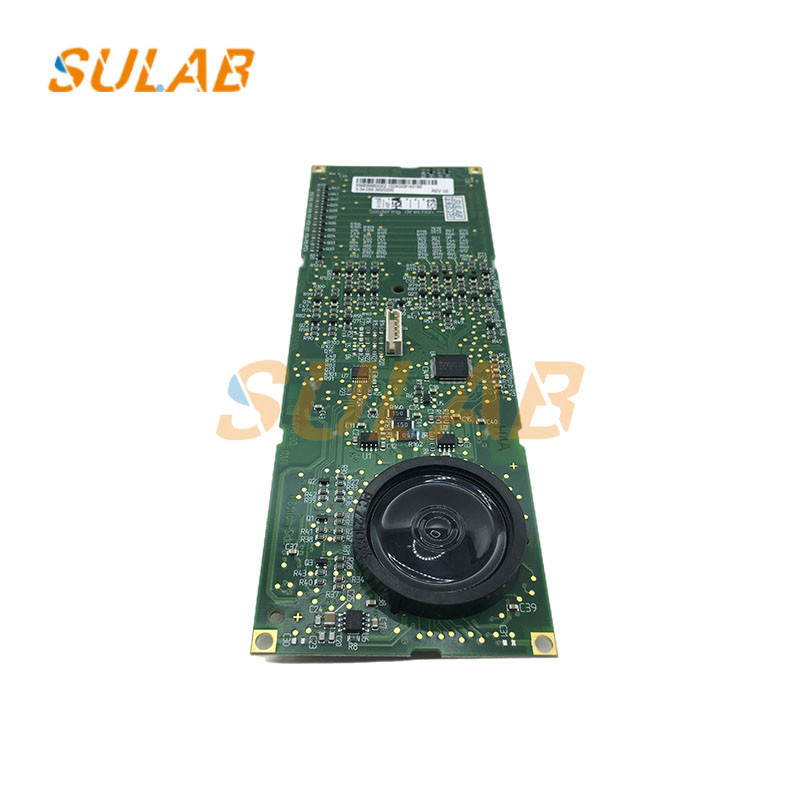

Details for Kone Elevator Lift HLI DOT MATRIX AMBER Display PCB Board F2KHDM KM806880G02

Pictures for Kone Elevator Lift HLI DOT MATRIX AMBER Display PCB Board F2KHDM KM806880G02

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
