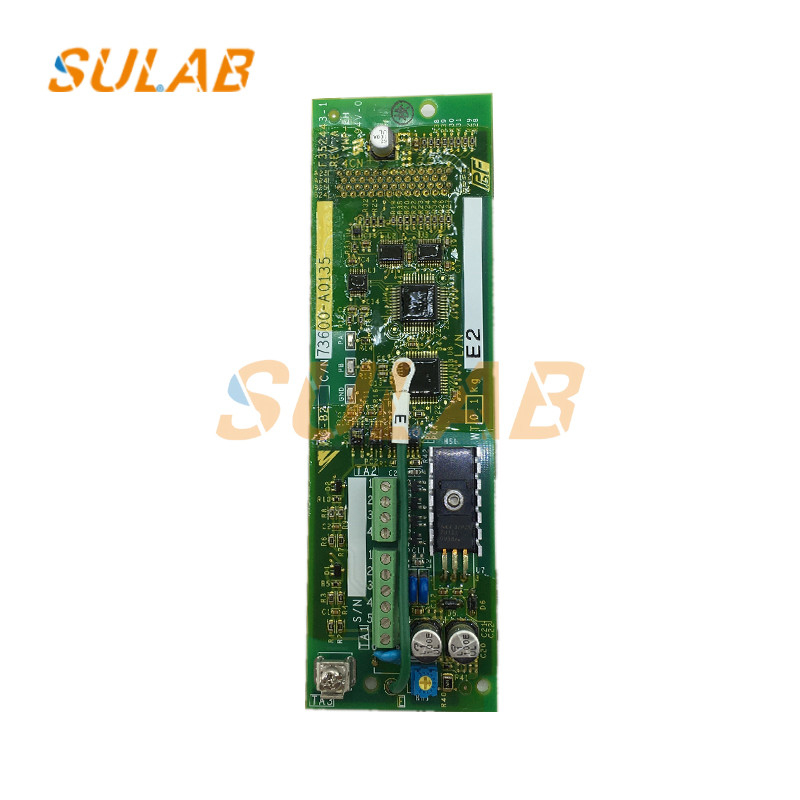

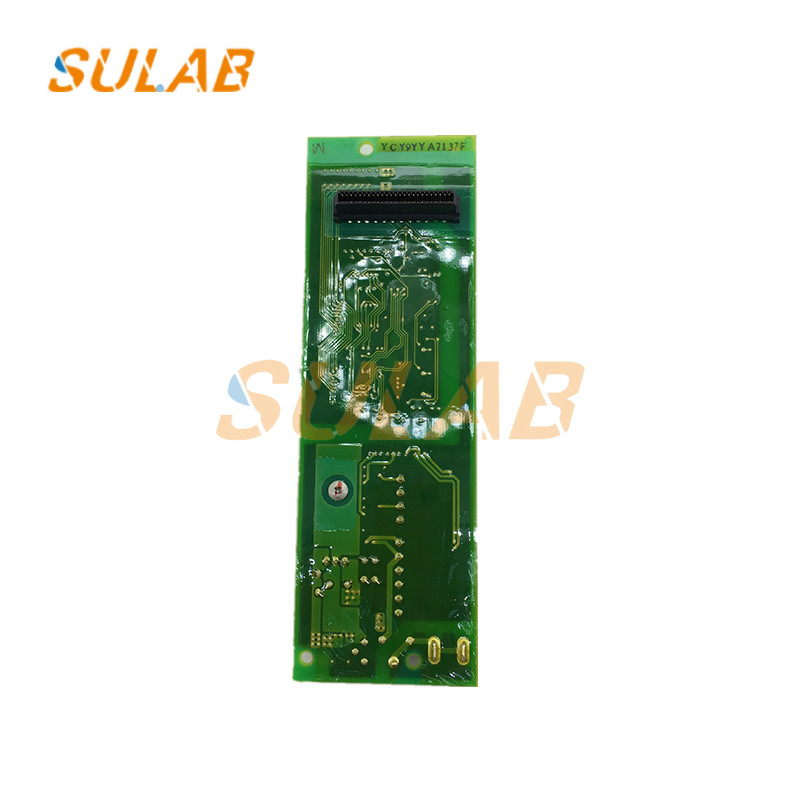

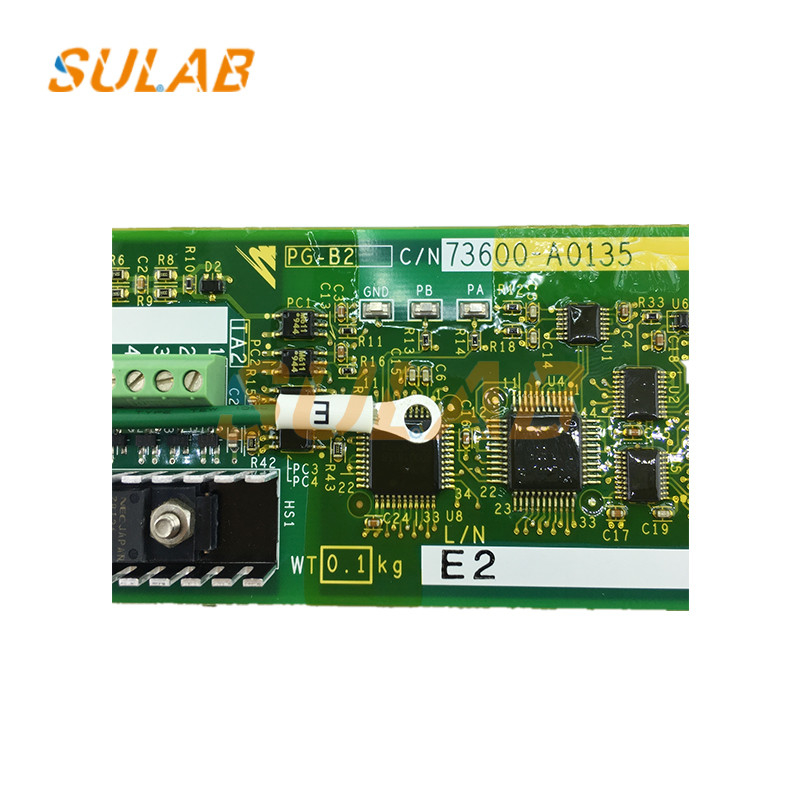

YASKAWA elevator Lift Frequency Inverter Encoder PG Card PG-B2


Description of YASKAWA Elevator Lift Frequency Inverter Encoder PG Card PG-B2


Now Yaskaw inverter 1000 series PG card has PG-E3 PG-B3 PG-X3 PG-B2 PG-F3 PG-X2.

Details for YASKAWA Elevator Lift Frequency Inverter Encoder PG Card PG-B2

Pictures for YASKAWA Elevator Lift Frequency Inverter Encoder PG Card PG-B2

PG should be called a pulse generator, short for PulseGenerator. Often used to measure rotational speed. Such as photoelectric encoder (encoder) is a kind of PG. The PG card in the inverter is a part of the vector inverter, which can convert and isolate the signals of the encoders with different output forms, and output the signals that can be adapted to the controller. Mainly include: level conversion, analog-to-digital conversion, optocoupler isolation, shaping, etc.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
