Air Transportation Elevator Lift PCB Board DPP-200 3X02100*A Compatible with LG SIGMA

Details for LG SIGMA Elevator Lift Circuit Pcb Board DPP-200 3X02100*A

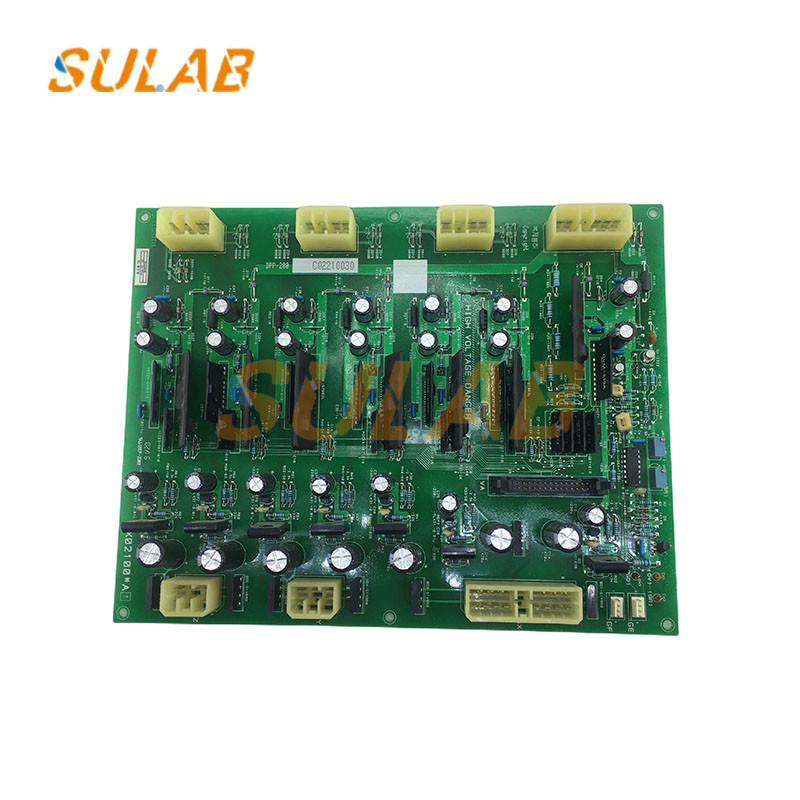

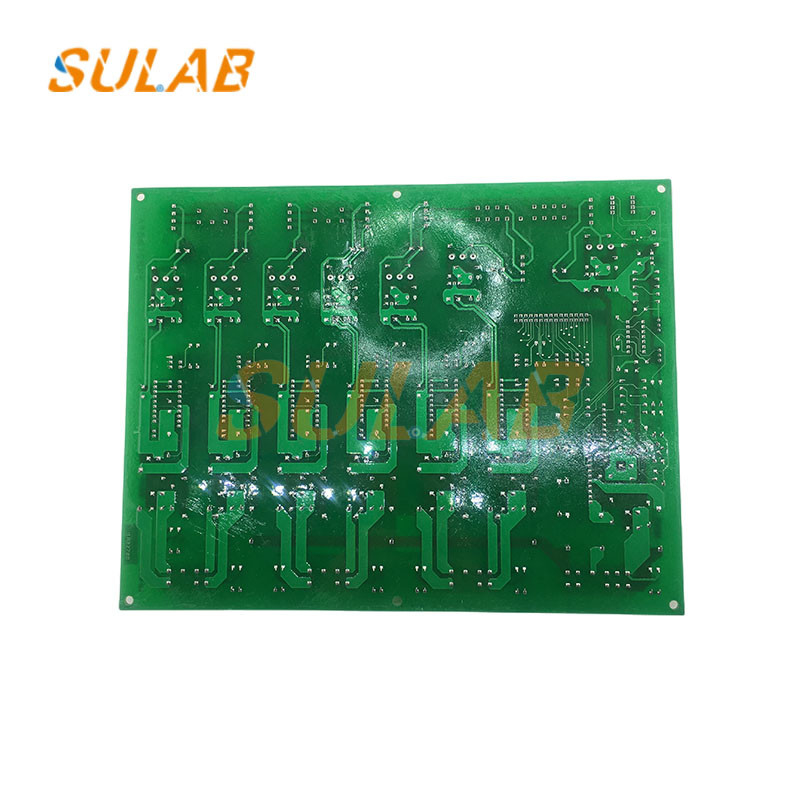

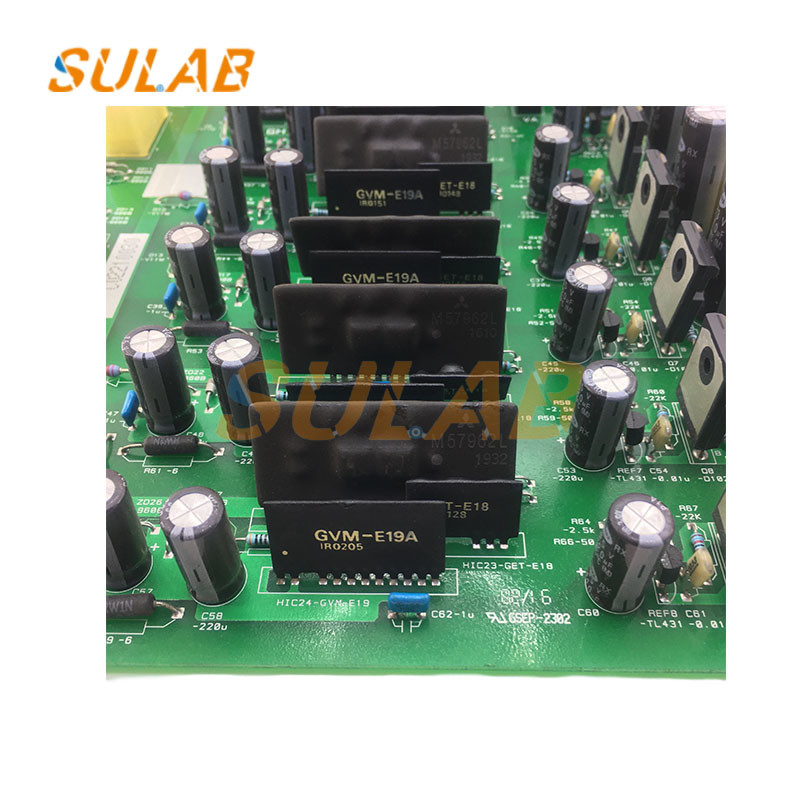

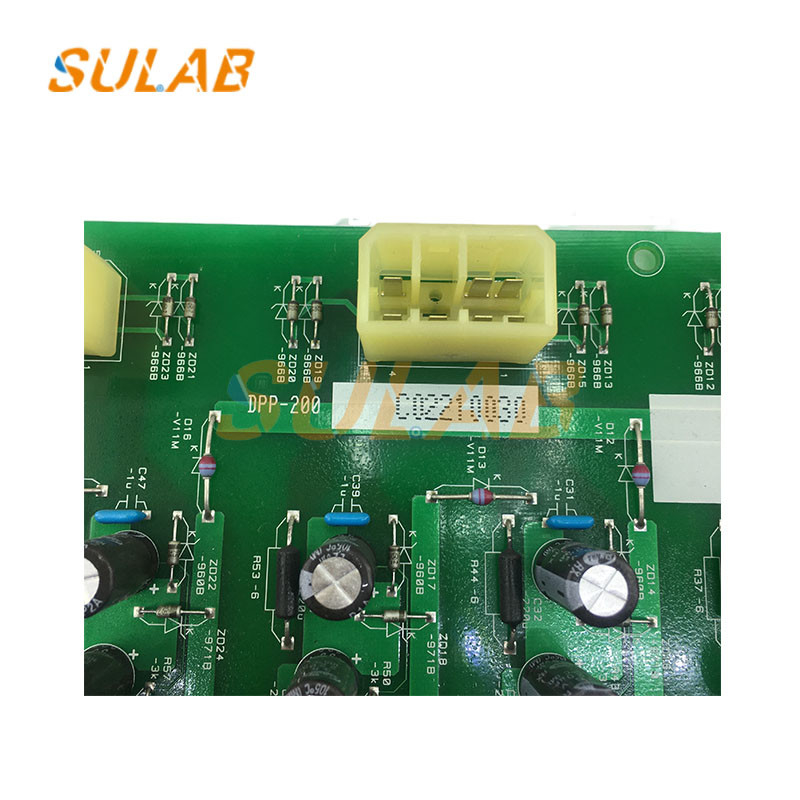

Pictures for LG SIGMA Elevator Lift Circuit Pcb Board DPP-200 3X02100*A

LG Sigma elevator debug operation at low speed (check operation)

1) Obstacles in the hoistway
2) Hall door (closed)
3) Safety touch panel cable connection (if the car door is not equipped, short-circuit)
4) PJ1 plug of DCD-212 PCB is connected to car top junction box. (SBD door operator)
5) All emergency stop switch positions.
6) OPB normal operation mode (non-idle)
7) All plug connections in the CP and cable connections at the top of the car
8) Confirm the fuse and its capacity
9) Ground state
10) Insulation status of each switch.
11) IGBT capacity
12) DOC-120, DOR-1XX Check switch position (Idle)
13) Whether there is any debris outside the speed limiter wheel.
14) Switch status and counterweight situation
15) The power capacity of the lights in the control cabinet must be less than 300W

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
