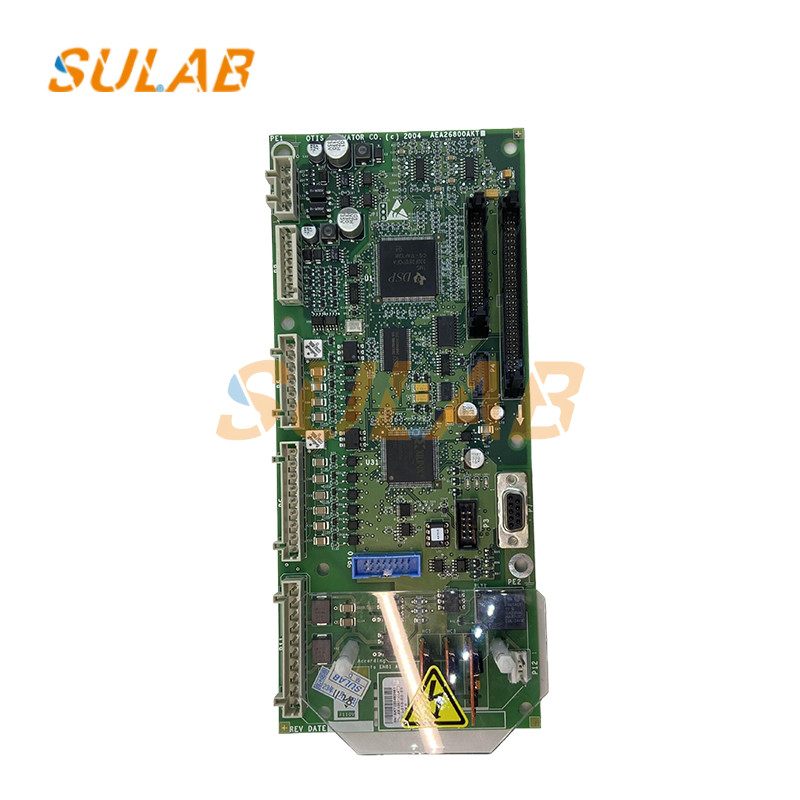

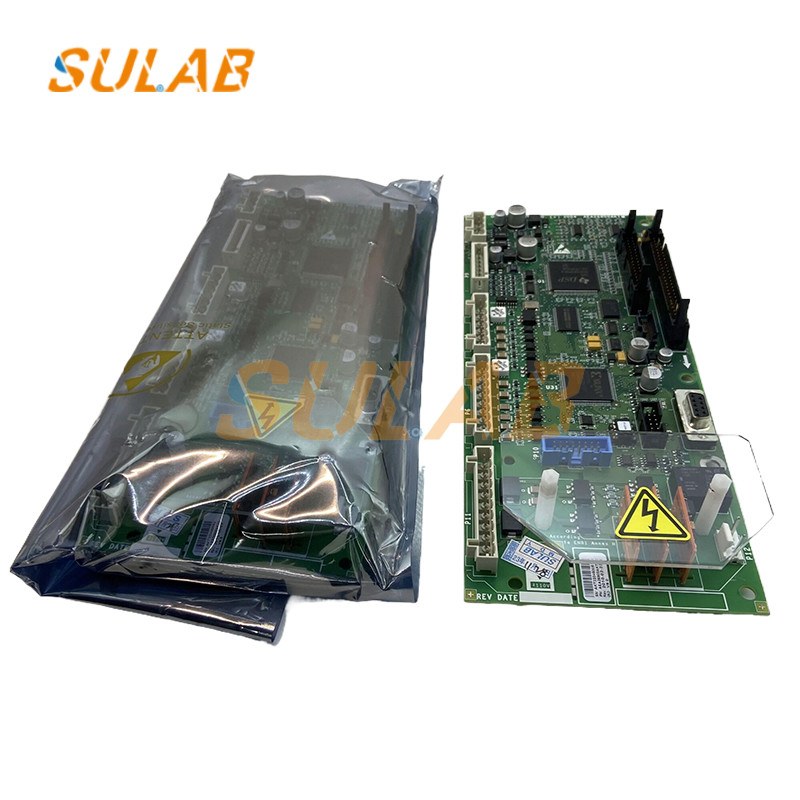

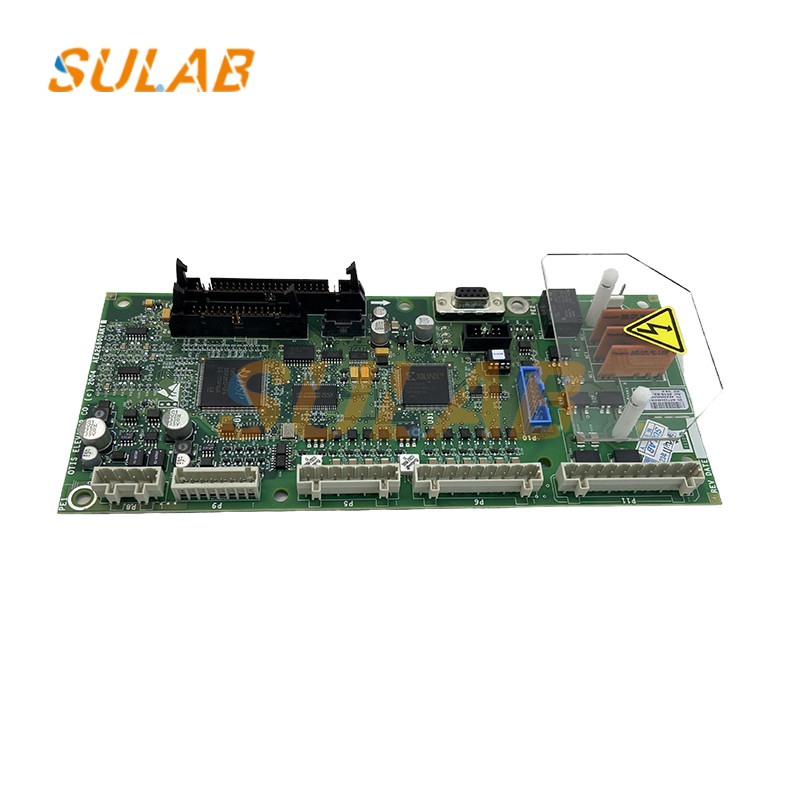

Otis Elevator Spare Parts GGDCB Drive Main PCB Board ABA/ACA/AEA26800AKT1/ADA26800AKT2

Details for Otis Elevator Spare Parts GGDCB Drive Main PCB Board ABA/ACA/AEA26800AKT1/ADA26800AKT2

Pictures for  Otis Elevator Spare Parts GGDCB Drive Main PCB Board ABA/ACA/AEA26800AKT1/ADA26800AKT2

OTIS OVF30 inverter is the inverter equipped in the 300VF control system of the early OTIS elevator. Due to its long service life (at least 10 years), the probability of damage to the ABA26800XU1 (or XU2) board in the inverter is relatively high. I have repaired many inverters. Now I will share with you the faults that are easy to damage and difficult to find. If there are any deficiencies, please point them out.

Fault 1: Power on normally, the inverter main board displays X04A, and the UDX light on this board keeps turning on and off. At the same time, the UDX relay keeps pulling in, and the BRK light is not on.

Fault point: This fault is generally caused by a problem in the IGBT drive signal circuit to the driver board, which is generally caused by the increase in the resistance value of the R118-R124=499 ohm resistor. Replacing the bad resistor can solve the problem.

Fault 2: Power on normally, inverter mainboard displays X04A, start maintenance, the UDX light on this board keeps turning on and off, while the UDX relay keeps pulling in, and the BRK light turns on and off again.

Fault point: This fault is generally caused by the increase in the resistance of the current sampling resistor in the current detection circuit. If the resistance of resistors R146, R149, R152 increases, just replace them.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
