Mitsubishi Elevator Elevator Power Board Elevator Accessories Original Products P203722B000G01

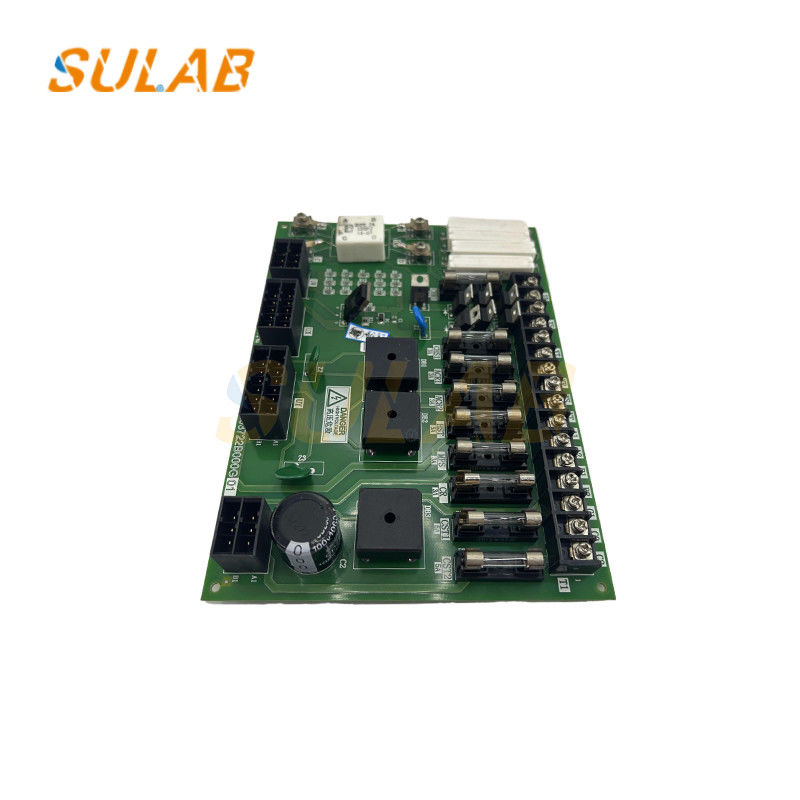

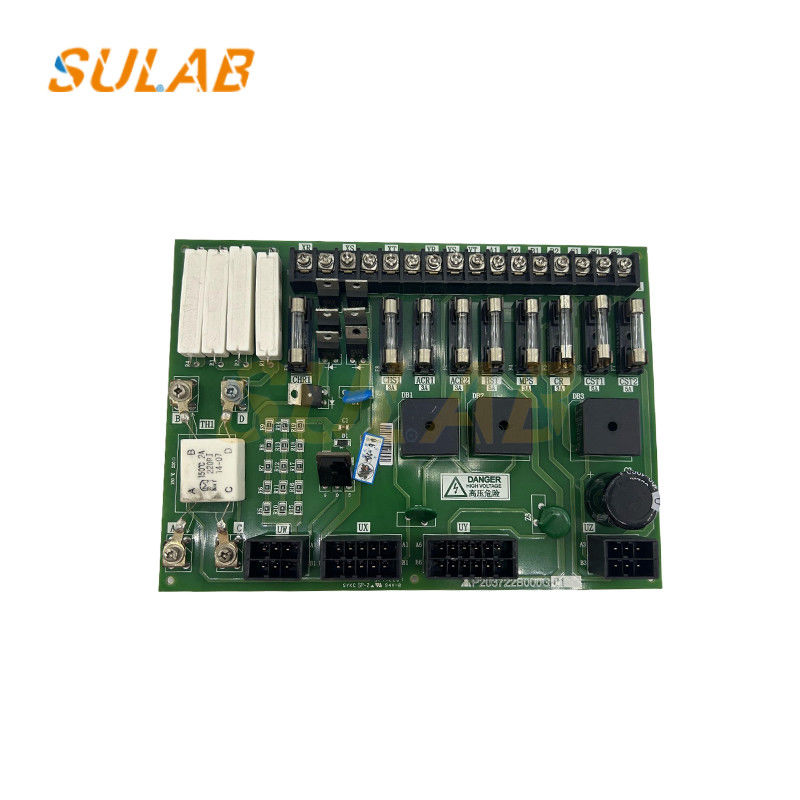

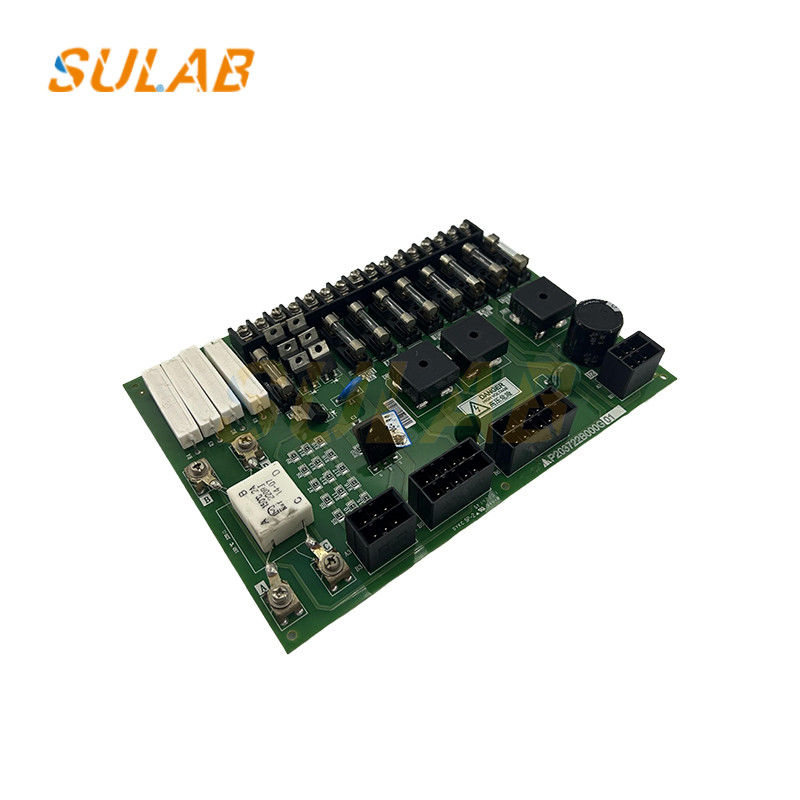

Mitsubishi Elevator Elevator Power Board Power Board Elevator Accessories Original Products P203722B000G01

Install the board
Fix the board: Place the P203722B000G01 board in the predetermined installation position in the elevator control cabinet. Usually, it can be firmly fixed to the cabinet body using screws or clips to ensure that the board is firmly installed and will not loosen due to vibration or other external forces.
Connect the power cord: According to the wiring mark of the board and the electrical schematic diagram of the elevator control cabinet, connect the power cord of the appropriate specification to the power input terminal of the P203722B000G01 board. When wiring, pay attention to the correct polarity of the power cord, ensure that the connection is firm, avoid poor contact or looseness, so as to prevent the board from working abnormally due to power problems.
Connect signal lines and other control lines: According to the requirements of the elevator control system, connect the relevant signal lines, control lines, etc. to the corresponding terminals of the board. These lines may include connection lines with other elevator control modules, sensors, actuators and other equipment. When connecting, carefully refer to the wiring diagram to ensure that the connection is correct and avoid problems such as wrong connection and missing connection.

Inspection and testing
Appearance inspection: After installation, carefully check whether the board is firmly installed, whether all connecting wires are tightly connected, whether there is any looseness, detachment or wiring error. Check whether the surface of the board is damaged, scratched or has other abnormalities.
Electrical test: Before powering on, you can use a multimeter and other tools to test the electrical performance of the board's power input, output terminals and related signal line terminals to check for short circuits, open circuits or abnormal resistance.
Power-on test: After confirming that there are no problems with the appearance and electrical tests, turn on the power of the elevator control cabinet and observe whether the indicator light on the P203722B000G01 board lights up normally, and whether the elevator control system can be initialized and run normally. You can check whether the board can work normally and whether it can correctly control the various actions of the elevator by operating the relevant functions of the elevator, such as running up and down, opening and closing doors, etc. If problems are found during the test, the power supply should be cut off in time for troubleshooting and repair.
