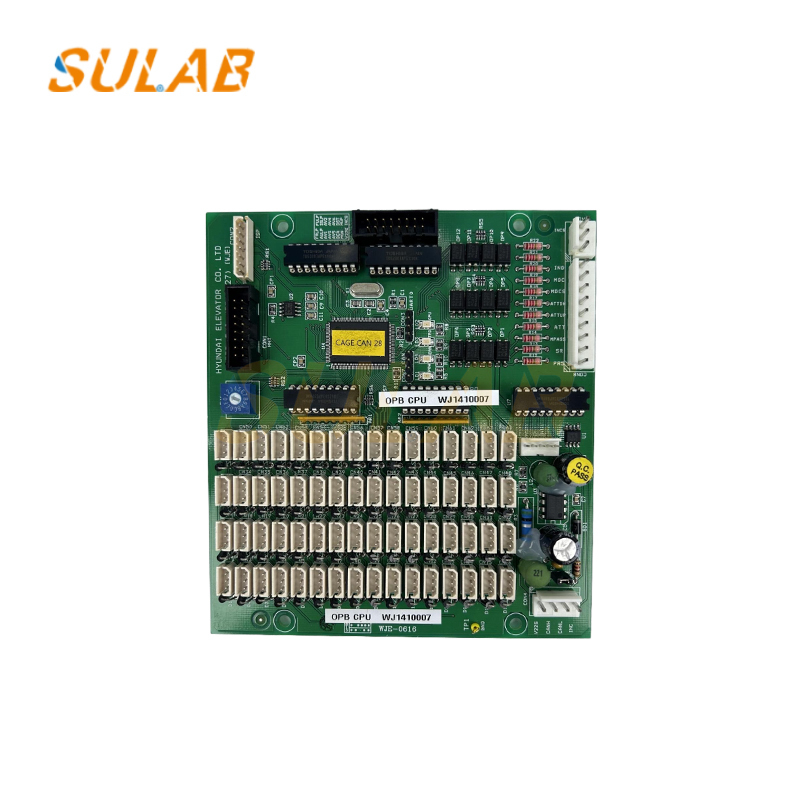

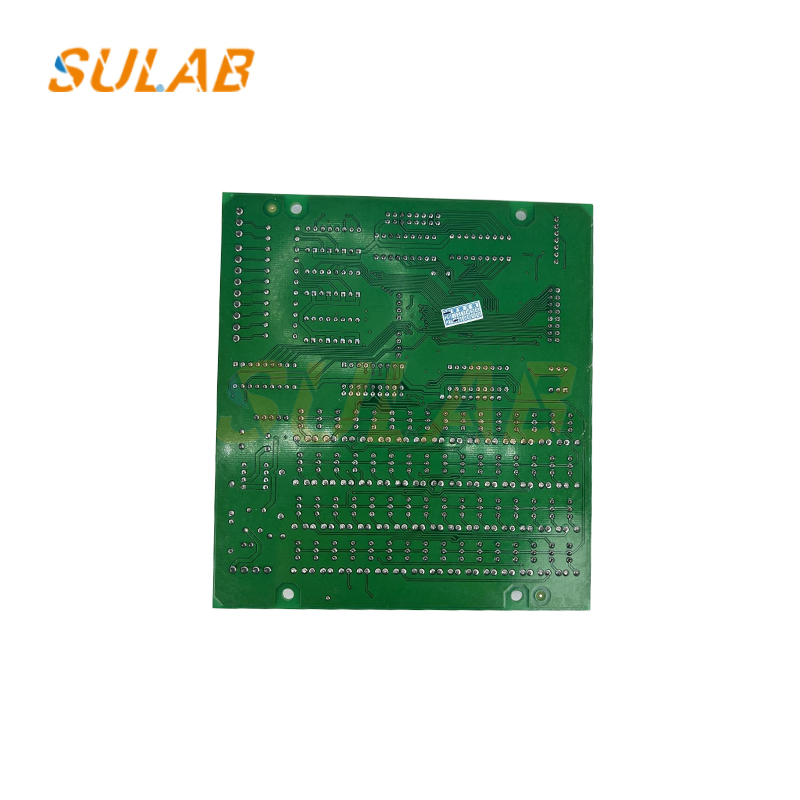

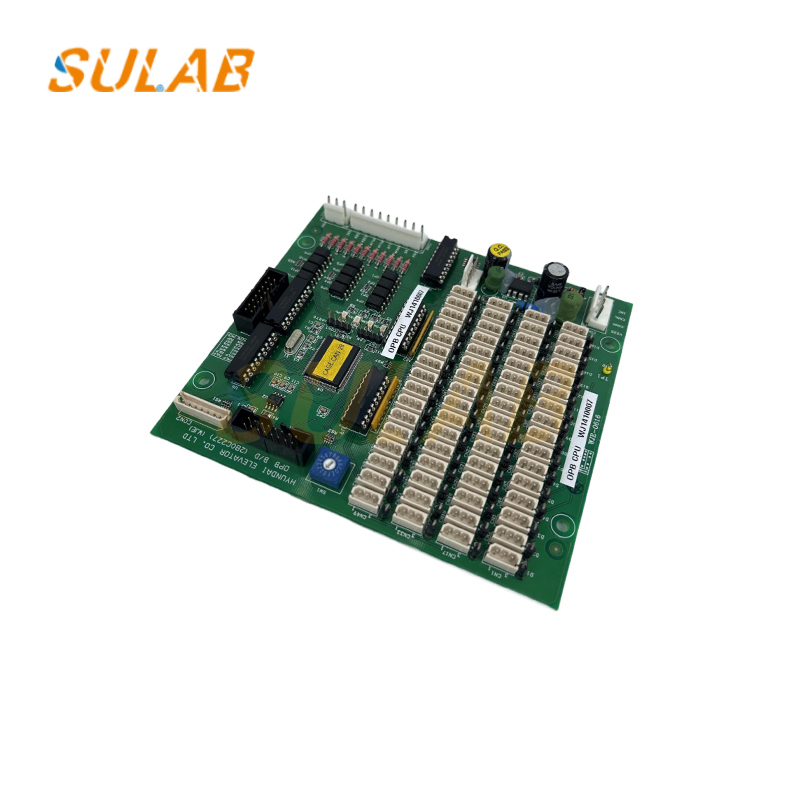

Modern Elevator Accessories Are Suitable For Brand Elevator Communication Circuit Boards OPB BD 280C227
This system is compatible with Hyundai Elevators and its affiliated brands. Its main functions include:
Receives and identifies signals from buttons on the elevator control panel (such as floor buttons, door opening and closing buttons, and emergency call buttons).
Transmits the processed signals to the elevator's main controller to control the elevator's operating status (such as stopping at designated floors and opening and closing doors).
Some models may also include an integrated indicator light control function, which uses the panel's indicators to provide feedback on the elevator's current status (such as floor display and direction of travel).
| Brand | SULAB |
| Description | Elevator parts |
| Model | OPB BD 280C227 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Applicable | Elevator |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Functions:
Command Reception and Processing: Receives signals from interior select buttons, door opening and closing buttons, and other signals. For example, a split-type control panel can handle input and response for interior select buttons and door opening and closing buttons.
Signal Transmission: Converts passenger key signals into control signals and transmits them to the elevator's integrated control box via a communication module, enabling the elevator to respond and execute the corresponding action.
Status Display Control: Some control panel boards can control the display to display information such as elevator floor, direction of travel, and fault codes. For example, Elevator's KFXM04009V10 main control panel provides real-time display of elevator status and floor information, making it easier for passengers to understand elevator operation and helping maintenance personnel troubleshoot faults.
Special Function Control: Some control panel boards also have special functions such as IC card control. For example, the BL2000-ZLB-V1.2 main control panel allows users to configure the elevator's IC card control enable input and enable or disable IC card control at specific floors using DIP switches.
Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.
Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.
Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.
Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.
Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
