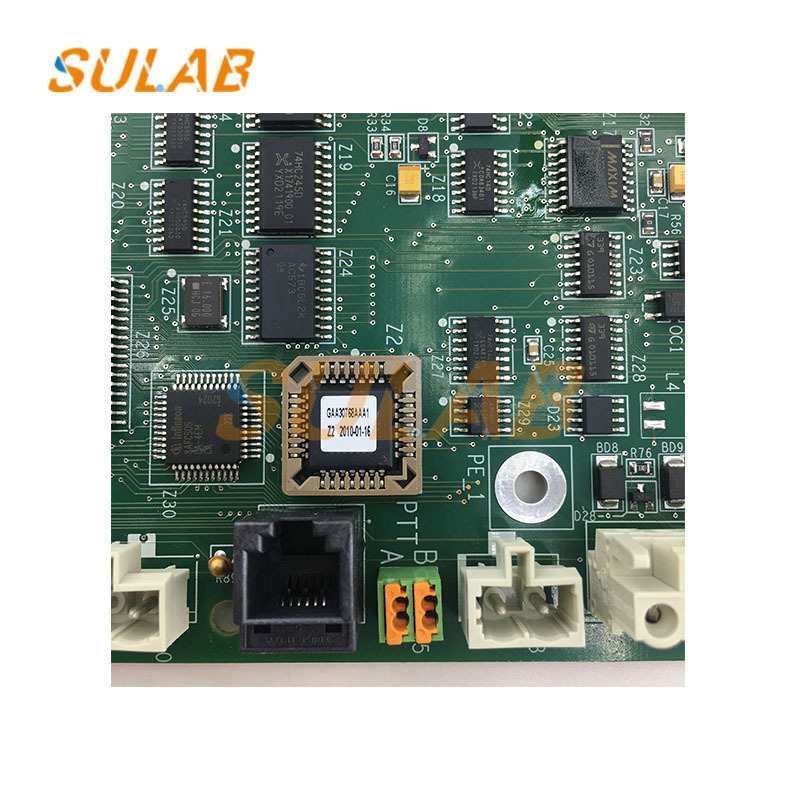

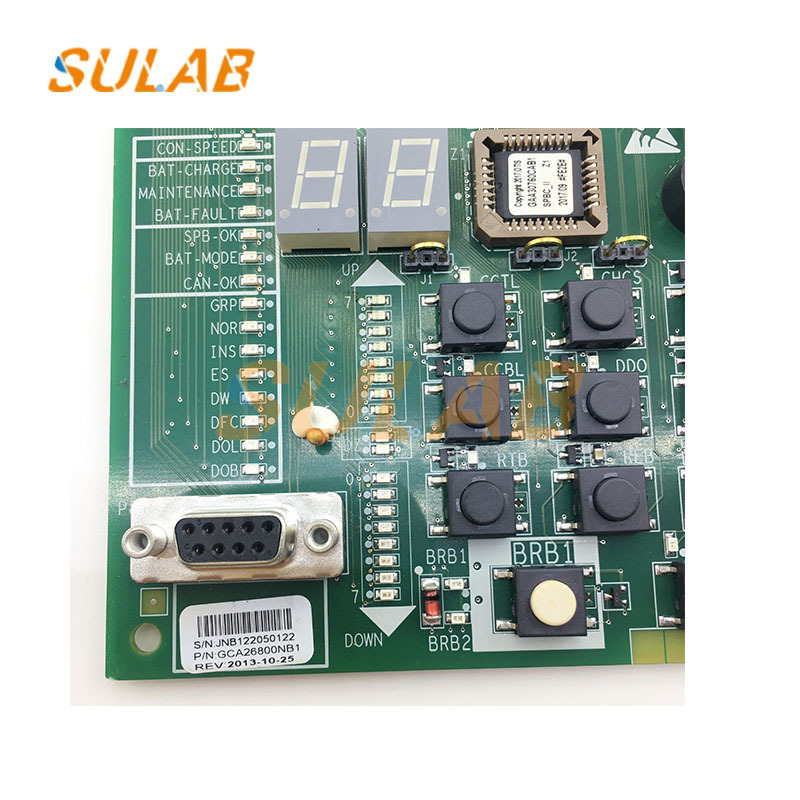

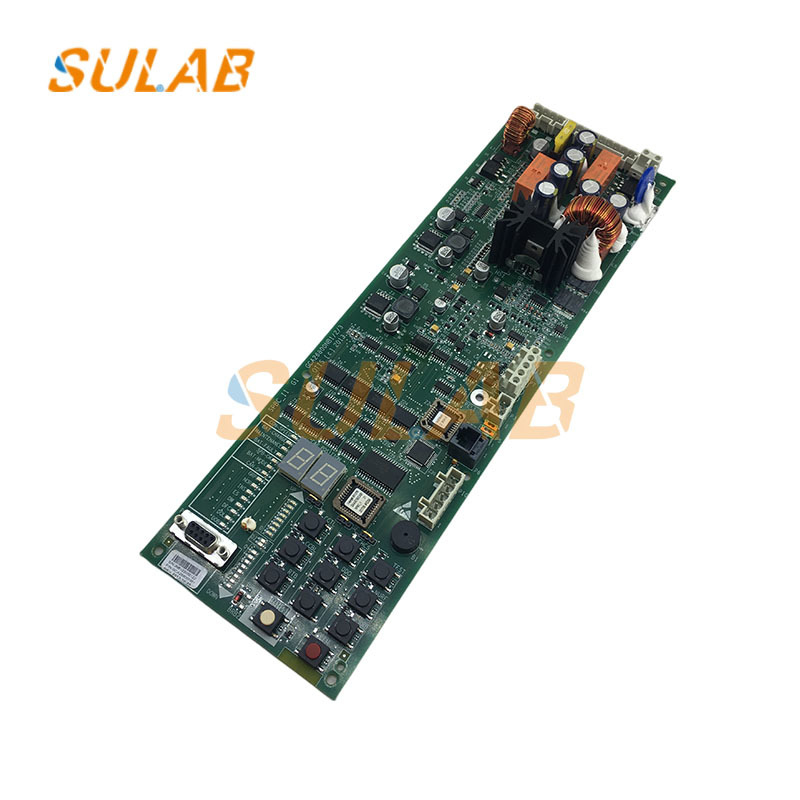

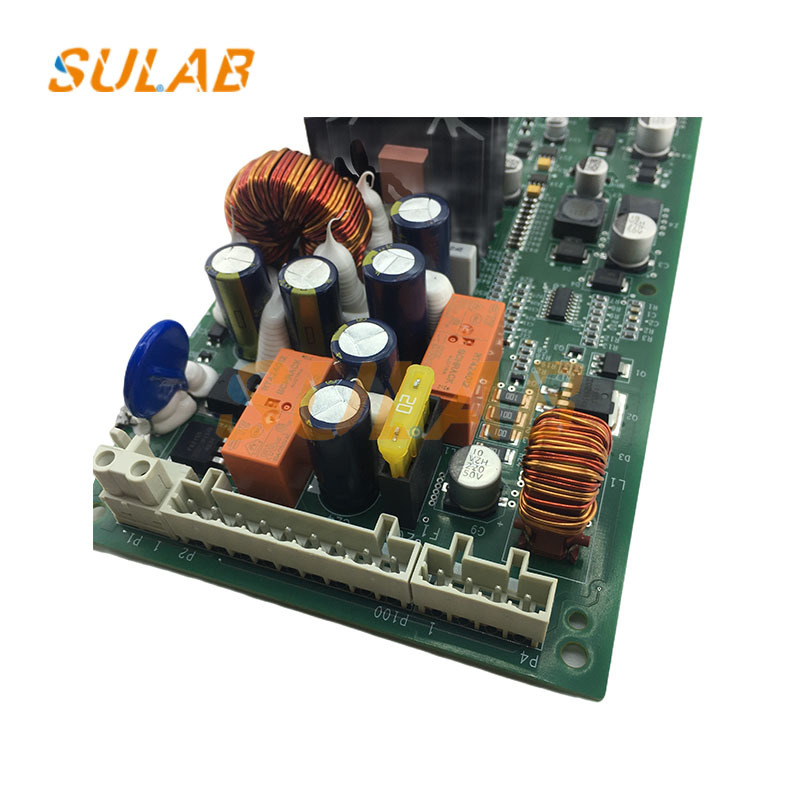

Elevator SPBC Brake Steel Elevator Accessories Rescue Board Elevator Circuit Main PCB Board New Elevator Accessories GCA26800NB1
Basic Parameters (Typical Values, refer to the official manual for specific values)
Voltage Rating: Rated collector-emitter voltage (Vce) is typically 1200V (suitable for medium- and high-voltage industrial applications).
Current Rating: Rated continuous collector current (Ic) is approximately 260A (based on specific cooling conditions, such as Tc = 125°C), with enhanced short-term overload current capability.
Packaging: Utilizes Fujifilm's commonly used 6-in-1 modular package (integrating multiple IGBT chips and freewheeling diodes), optimizing heat dissipation and mounting compatibility. This package is typically within the size range of industrial standard power modules.
Operating Temperature: The junction temperature (Tj) range is typically -40°C to 150°C, adapting to the harsh temperature fluctuations of industrial environments.
| Brand | SULAB |
| Description | Elevator parts |
| Model | GCA26800NB1 |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Applicable | Elevator |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Key Technical Features
Integrated Freewheeling Diode: A high-performance anti-parallel diode is integrated internally to simplify peripheral circuit design, improve switching reliability, and reduce reverse recovery losses.
Optimized Heat Dissipation Design: Utilizes ceramic-clad copper (DBC) substrate technology to enhance thermal conductivity, reduce module temperature rise, and extend power cycle life.
Low Switching Loss: Suitable for medium and high frequency applications (typically ≤10kHz), it balances switching speed and losses to improve overall energy conversion efficiency.
Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.
Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.
Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.
Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.
Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
