KM50014542G11 Elevator Shaft Communication Board with Bus Communication Transmission and Safety Interlock for Lift Systems

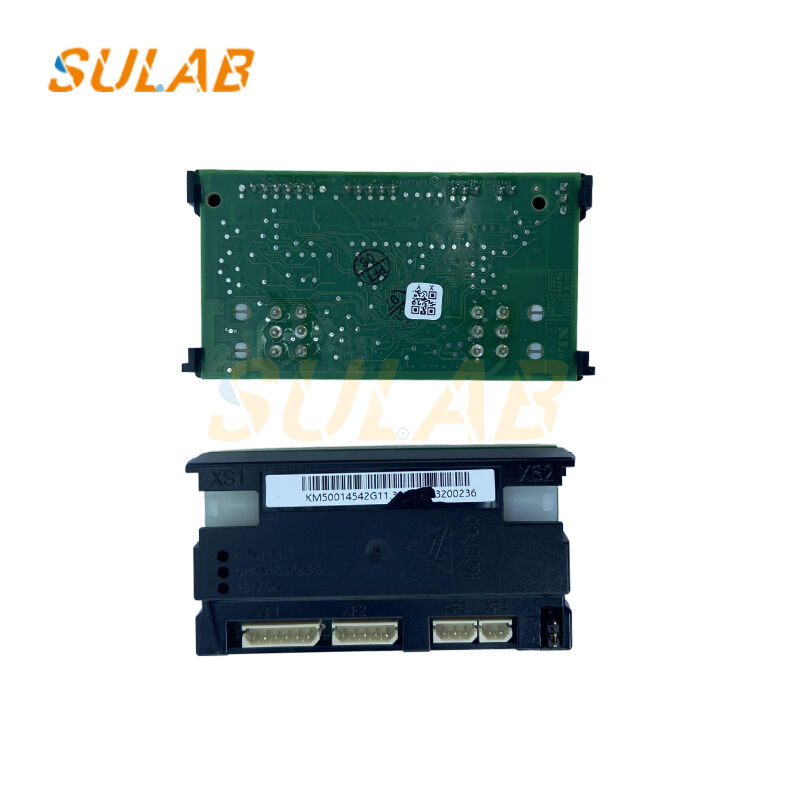

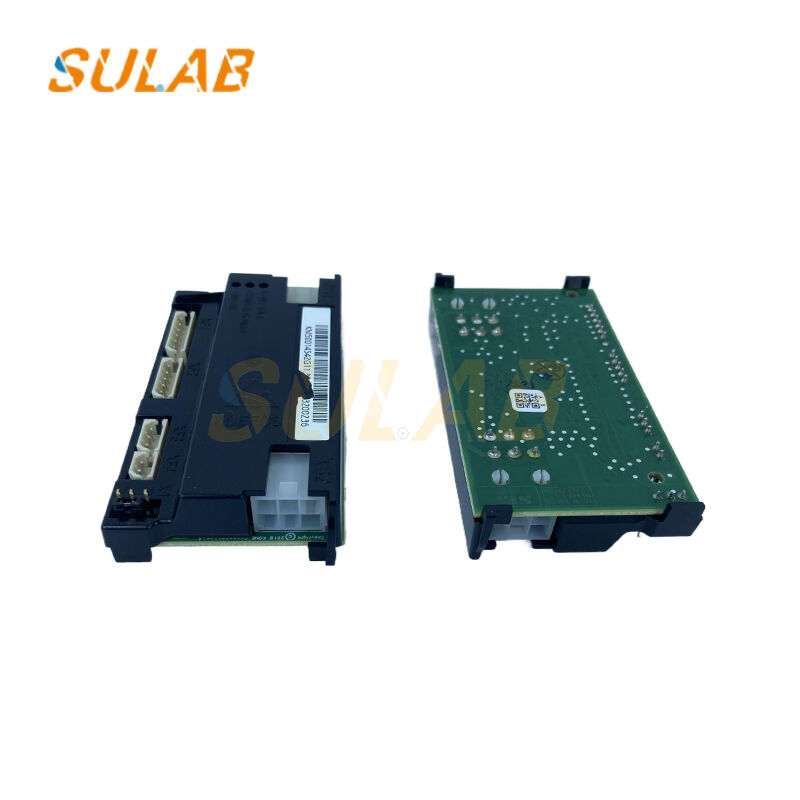

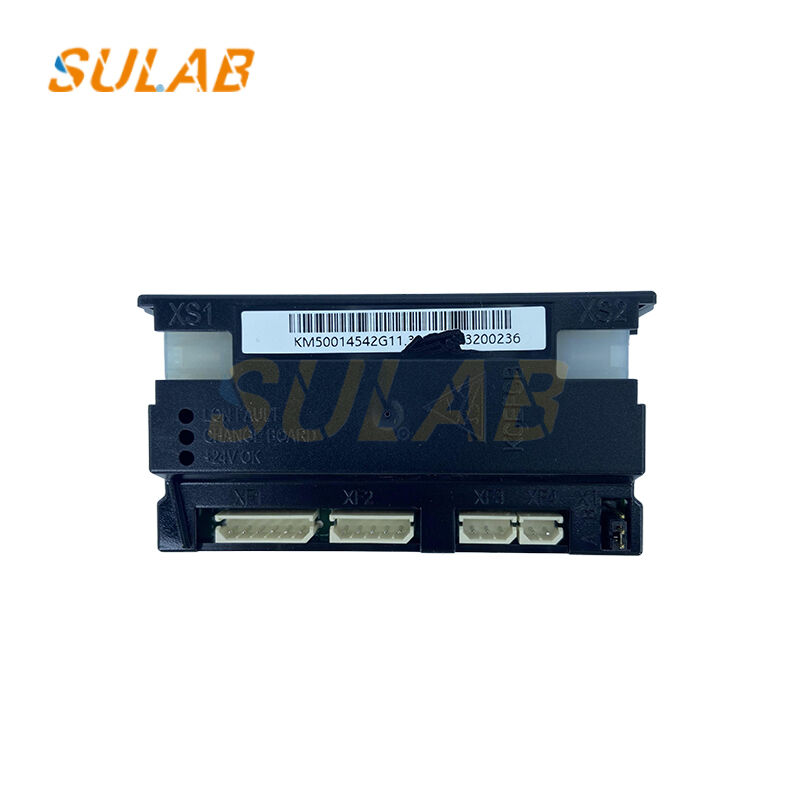

Elevator Shaft Communication Board Elevator Spare Parts  KM50014542G11 Lift Shaft PCB Board

Floor Signal Acquisition: Collects signals from each floor's hall doors, external calls, limit switches, leveling switches, and safety switches.

Bus Communication Transmission: Uploads all floor signals to the main board via LCE/CAN bus, and simultaneously sends main board commands down to each floor.

Signal Relay and Extension: Acts as a signal relay station in the shaft, informing the elevator of its floor location, door status, and operational readiness.

Safety Interlock: Immediately alerts the main board to any safety/door lock malfunction on any floor, halting the elevator for safety.

Elevator PCB Board - FAQ

Q1: How do I identify the correct replacement elevator PCB board?
To identify a replacement elevator PCB board, check the original part number, hardware revision, board markings, and elevator controller model. Clear photos of both sides of the PCB can help distinguish different versions.

Q2: Can elevator PCB boards with similar part numbers be interchangeable?
Not necessarily. Elevator PCB boards with similar part numbers may differ in hardware revisions, firmware, connector layouts, or communication protocols. Compatibility must be verified against the existing elevator system.

Q3: Does a replacement elevator PCB board require programming?
Some replacement PCB boards require firmware configuration, parameter settings, or system-specific programming. Others may already contain the required software. The correct procedure depends on the PCB model and its role in the elevator control system.

Q4: Can a faulty elevator PCB board be replaced without changing the complete control system?
In some cases, an individual PCB can be replaced if the replacement is compatible with the existing controller, firmware, wiring, and connected components. A qualified technician should confirm the fault before deciding on replacement.

Q5: What information should I provide when sourcing a replacement elevator PCB board?
Please provide the original PCB part number, hardware revision, elevator model, clear board photos, and required quantity. SULAB can help review these details and check available replacement options.
